9. Manual Shifting Test

HINT:

By this test, it can be determined whether the trouble is within the electrical circuit or is a mechanical problem in the transmission.

1. Disconnect the solenoid wire.
2. Inspect the manual driving operation.

   Check that the shift and gear positions correspond to the table below.

   While driving, shift through the L, 2, 3, 4 and D positions. Check that the gear change corresponds to the shift position.

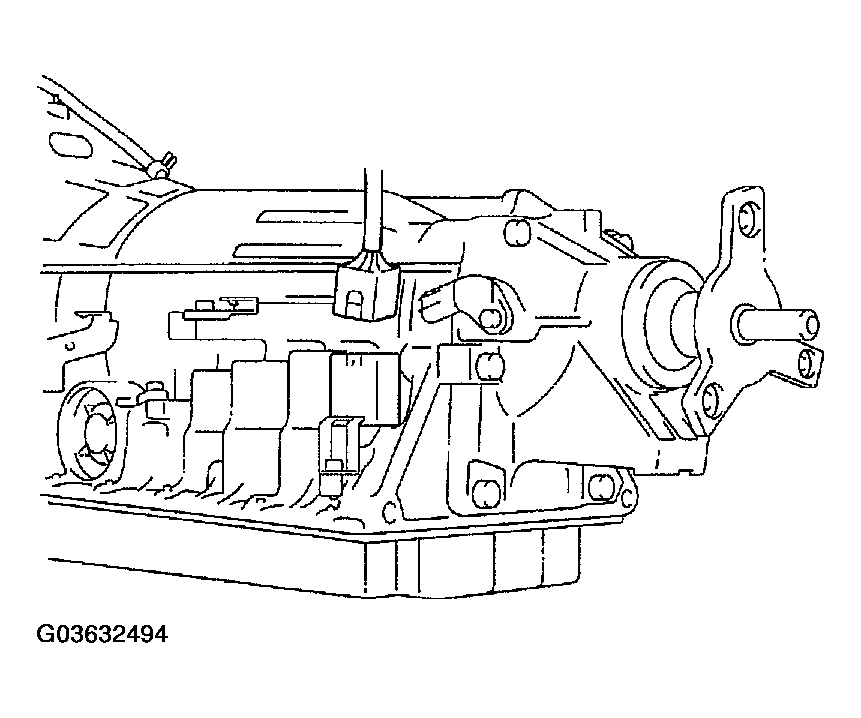

   Fig 1: Identifying Transmission

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   GEAR POSITION



   Shift Position	Gear Position
   D	5th
   4	5th
   3	4th
   2	3rd
   L	3rd
   R	Reverse
   P	Pawl Lock

   HINT:

   If the gear positions of the L, 2, 3, 4 and D are difficult to distinguish, do the above read test.

   If any abnormality is found in the above test, the problem is in the transmission itself.

3. Connect the solenoid wire.
4. Clear out the DTC (See PRE-CHECK ).
