Remote Up/Down Function Does Not Operate: Wiring Diagram

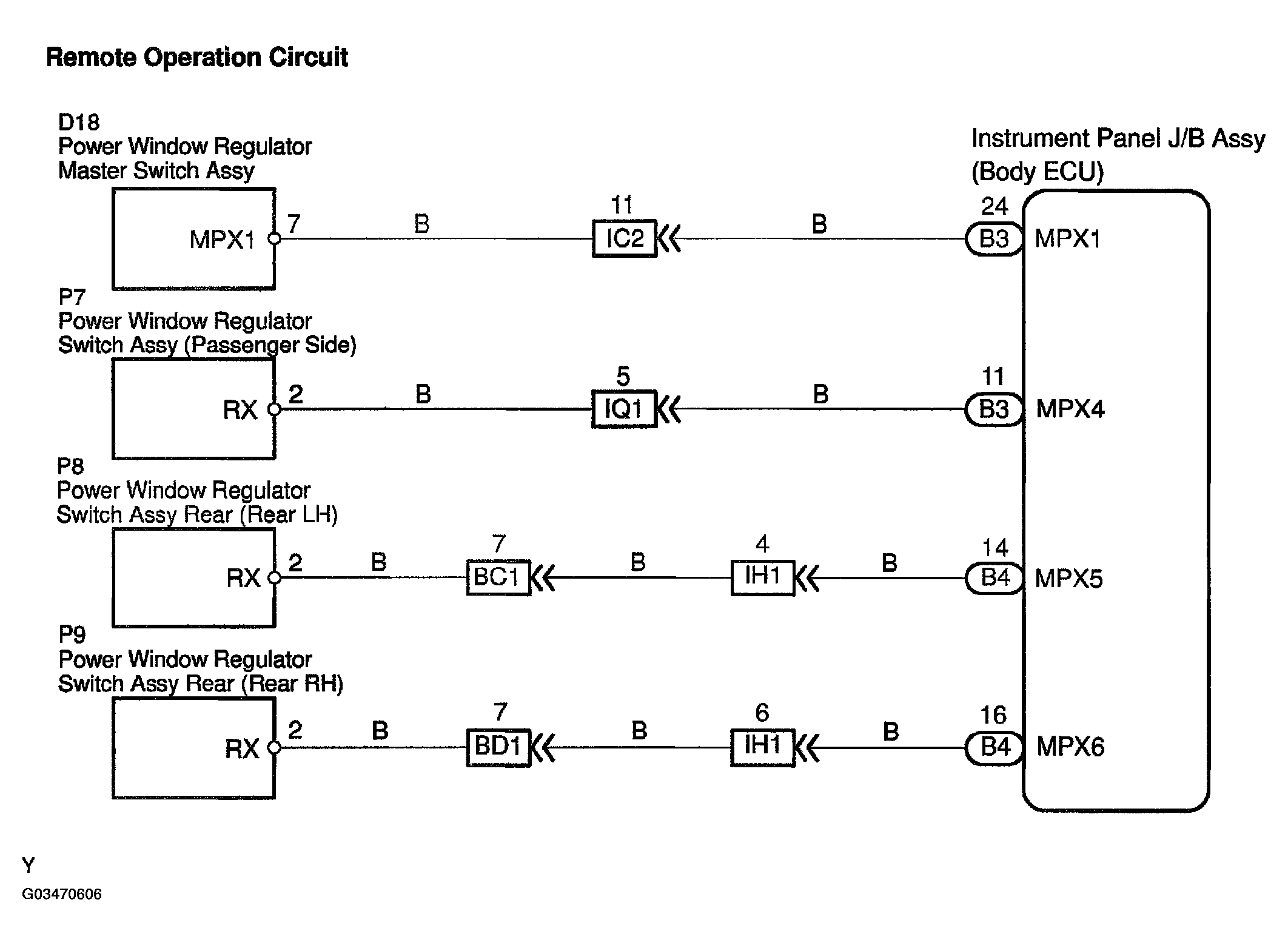

Fig 1: Power Window Control System Wiring Diagram (Remote Operations Circuit - 1 Of 2)
G03470606Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

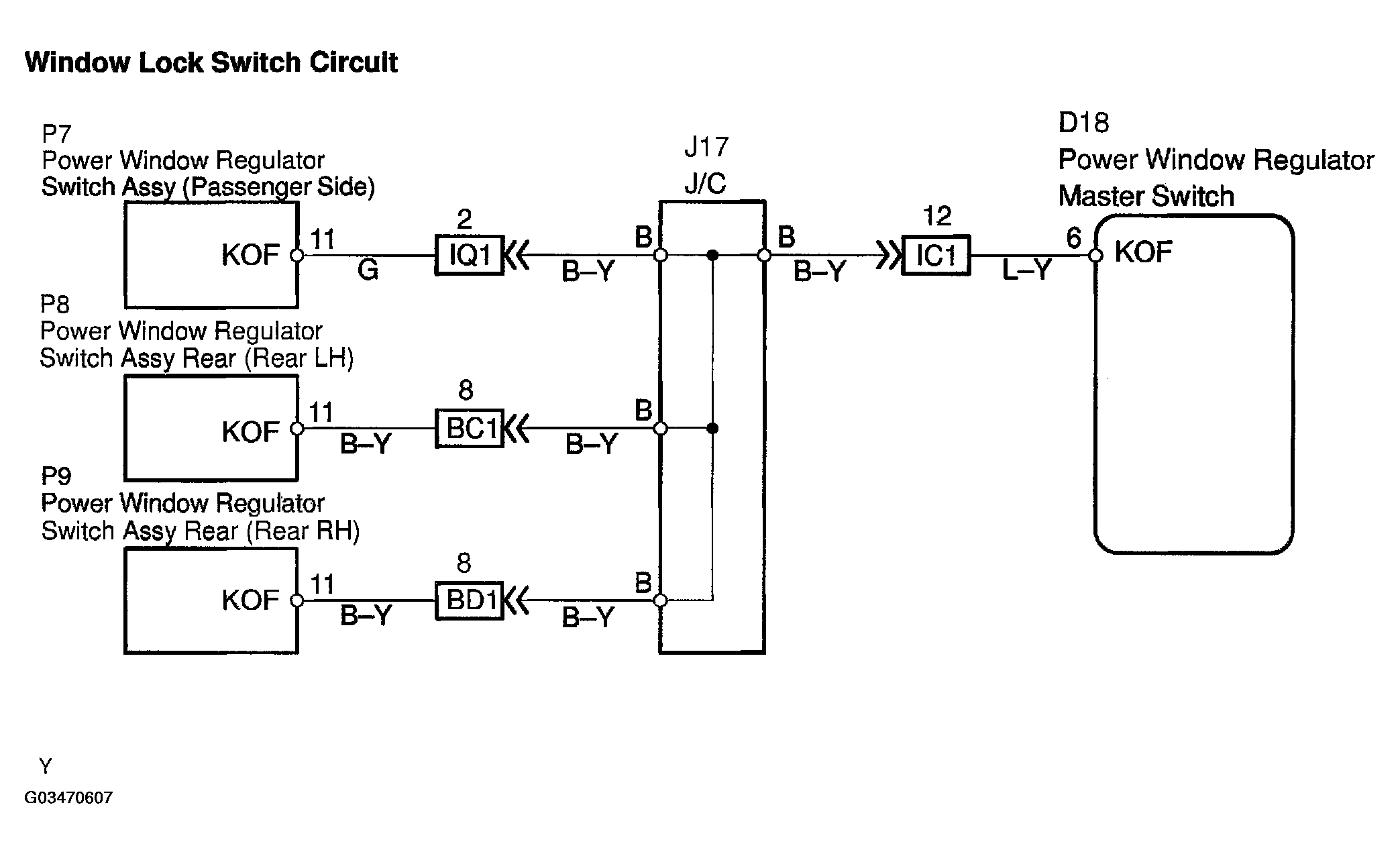

Fig 2: Power Window Control System Wiring Diagram (Window Lock Switch Circuit - 2 Of 2)
G03470607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
