Mayday Switch ASSY: Replacement

HINT:

The installation is in the reverse order of the removal. However, when there is a special point concerning the installation, it is indicated.

1. REMOVE MAYDAY SWITCH ASSY
   1. Using a screwdriver, disengage the 2 clips and 3 claws, and remove the mayday switch assy, then disconnect the connector.

HINT:

Tape the screwdriver tip before use.

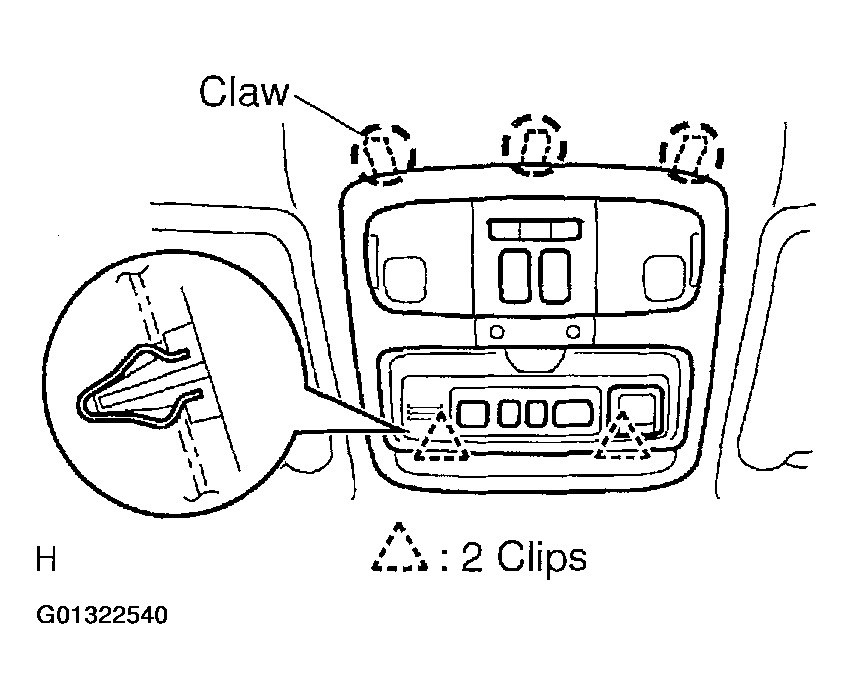

Fig 1: Removing Mayday Switch Assembly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
