Front Bumper: Components

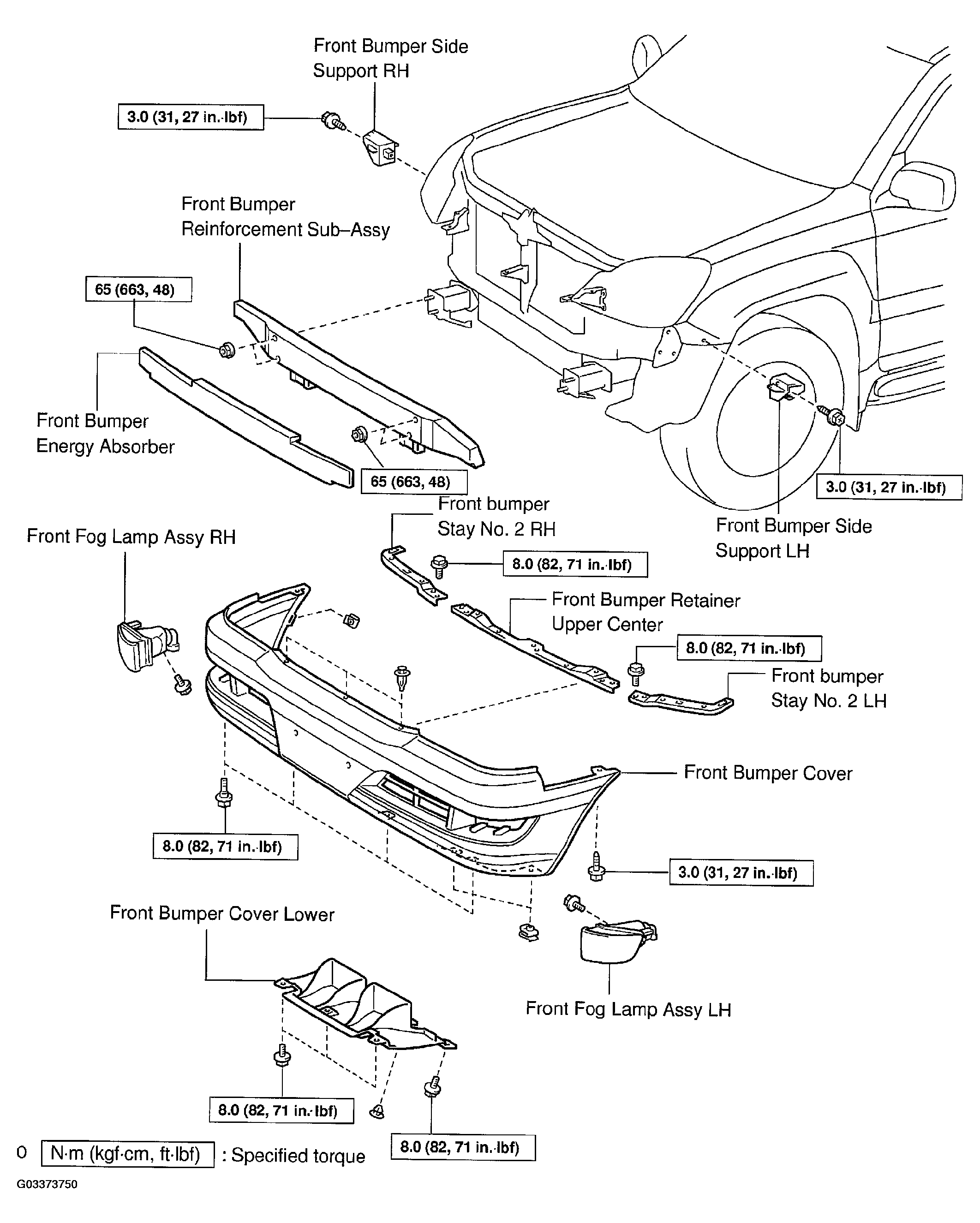

Fig 1: Exploded View Of Front Bumper

G03373750

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
