Exterior/Interior Trim: Hood: Components

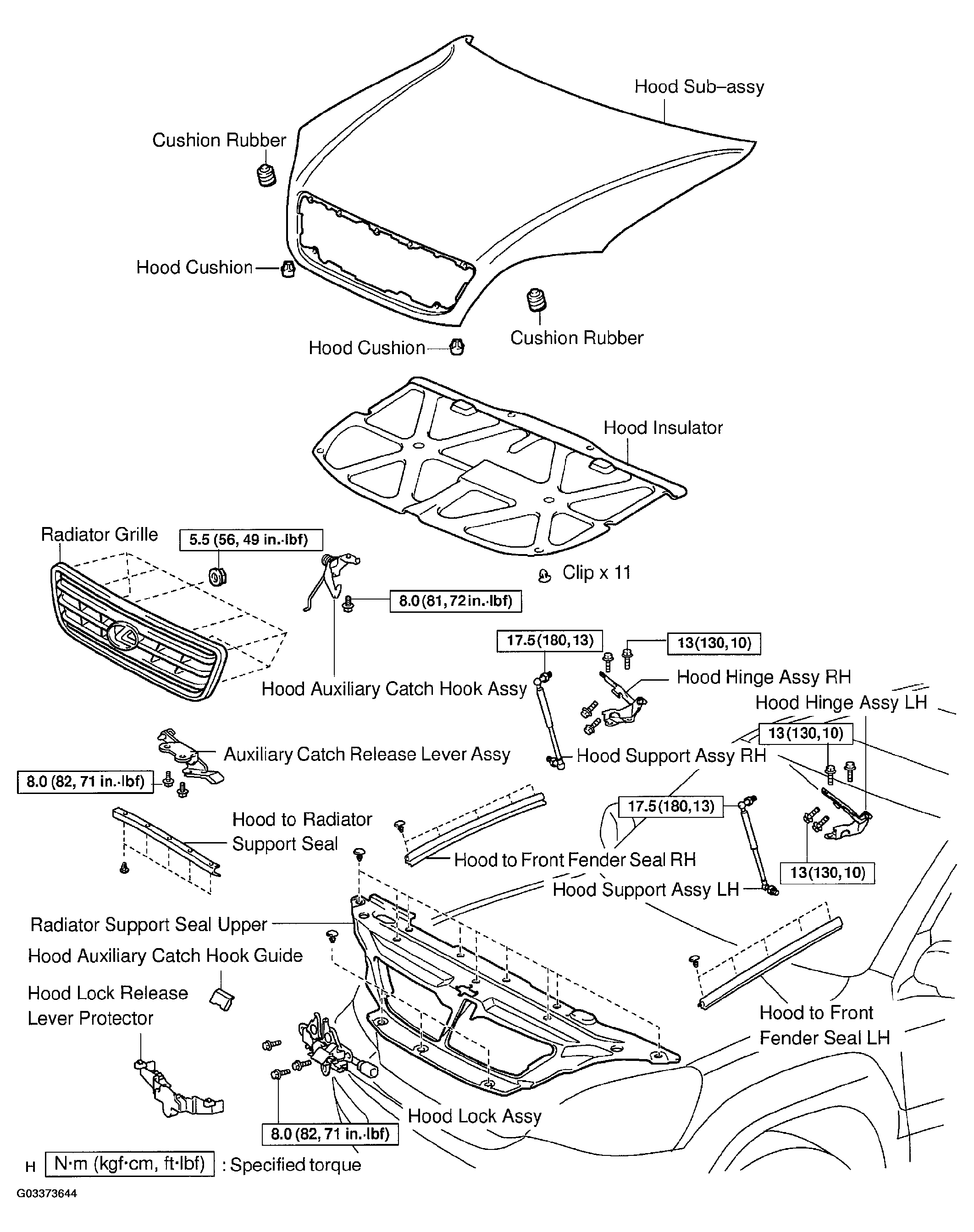

Fig 1: Exploded View Of Hood

G03373644

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
