Front Seat: Components

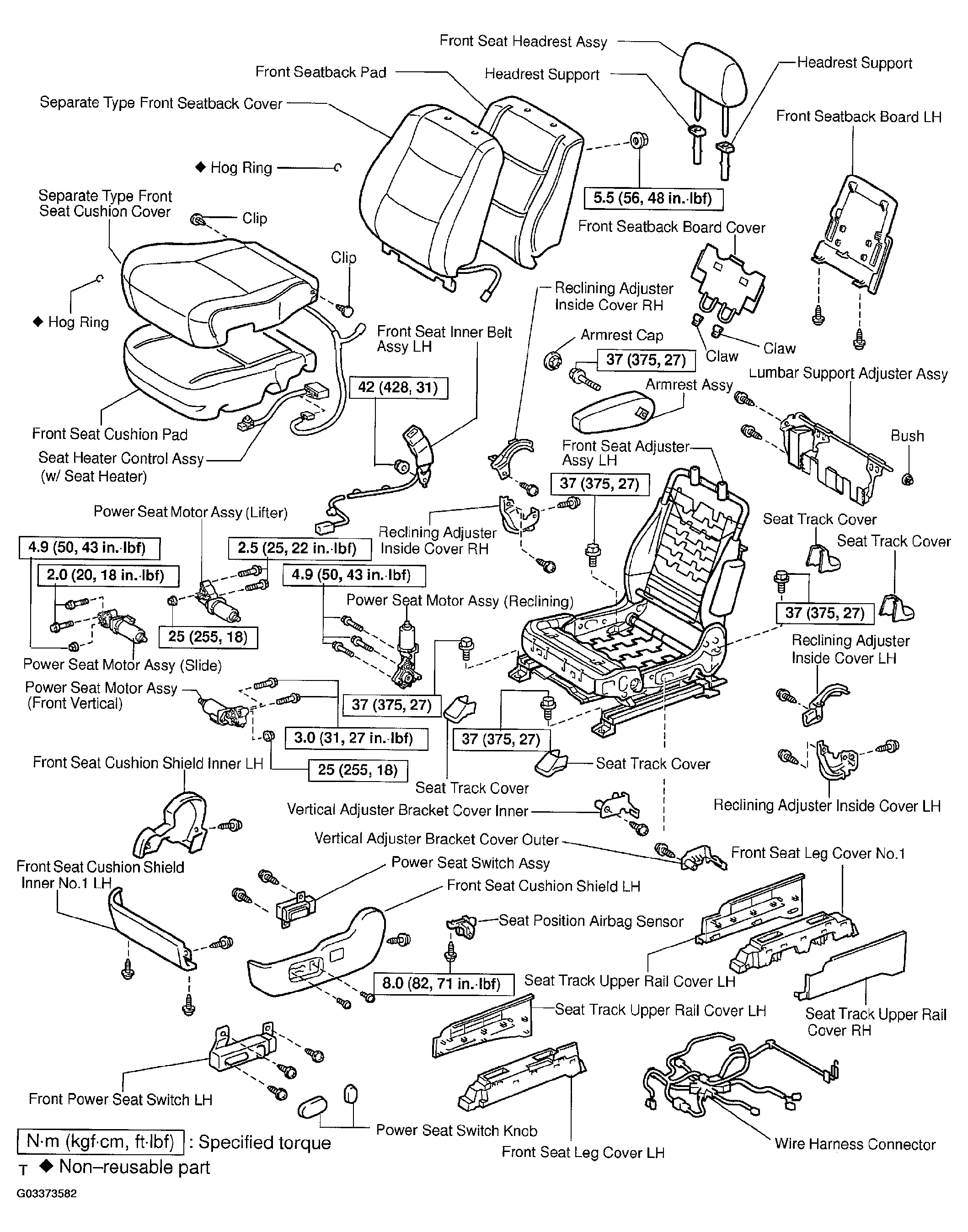

Fig 1: Exploded View Of Front Seat Assy LH
G03373582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
