Power Window Control System - Diagnosis: Location

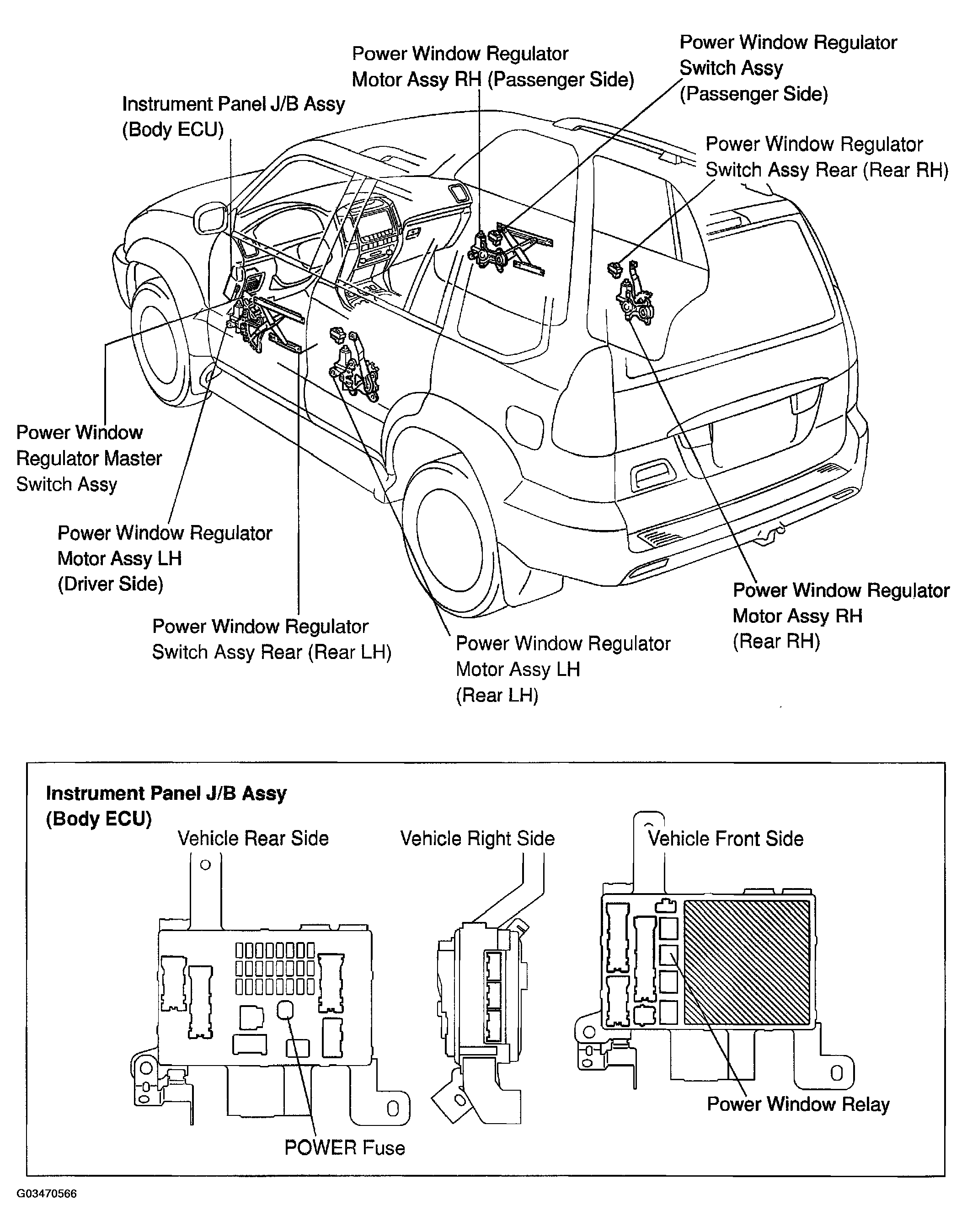

Fig 1: Locating Power Window Control System Components
G03470566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
