Quarter Power Windows: Components

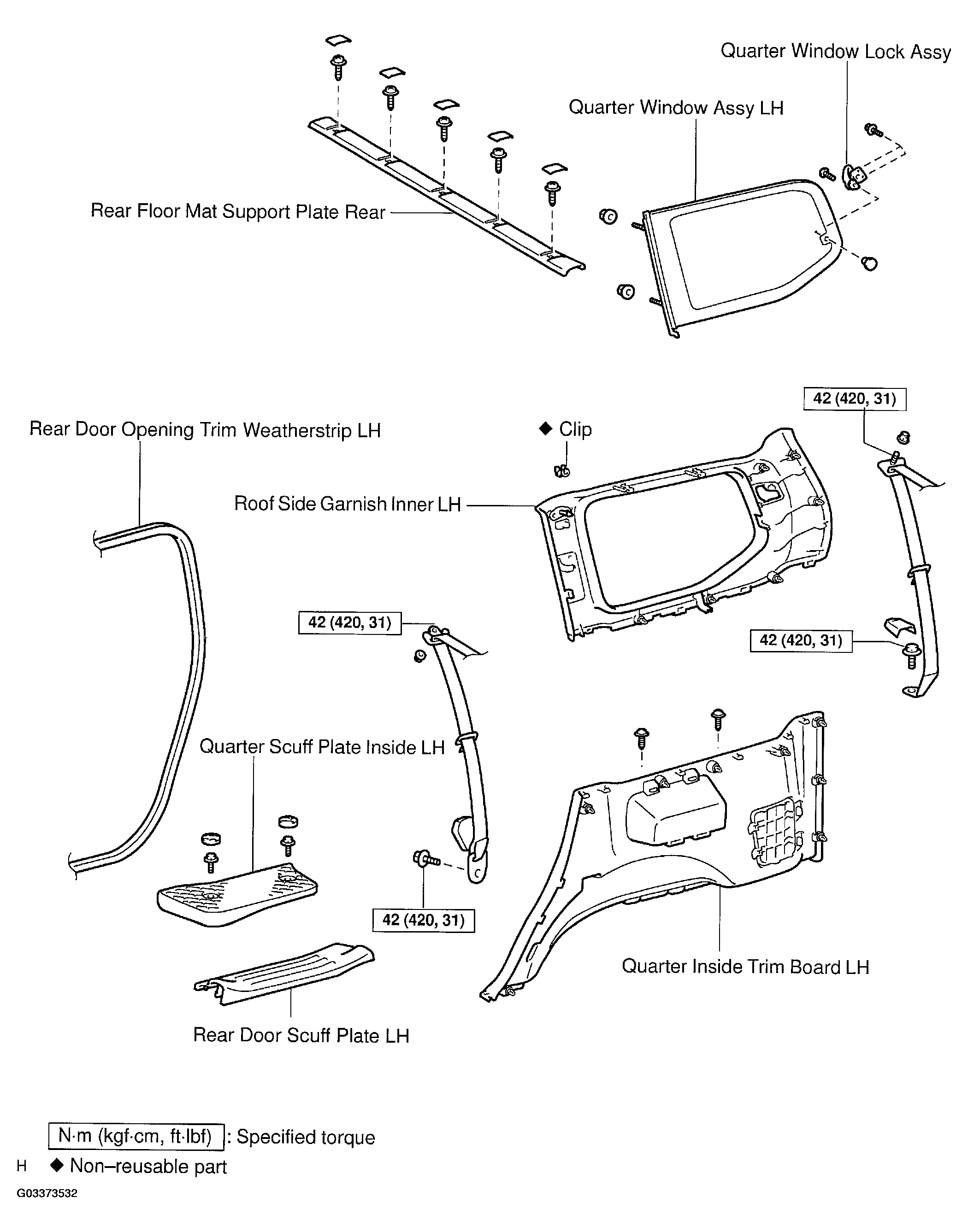

Fig 1: Exploded View Of Quarter Window Assy LH
G03373532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
