Fuel Evaporation System: Notes

NOTE: To identify Fuel Evaporative (EVAP) system components, see Fig 1. When testing fuel EVAP system components, it may be necessary to use illustration to determine component location.

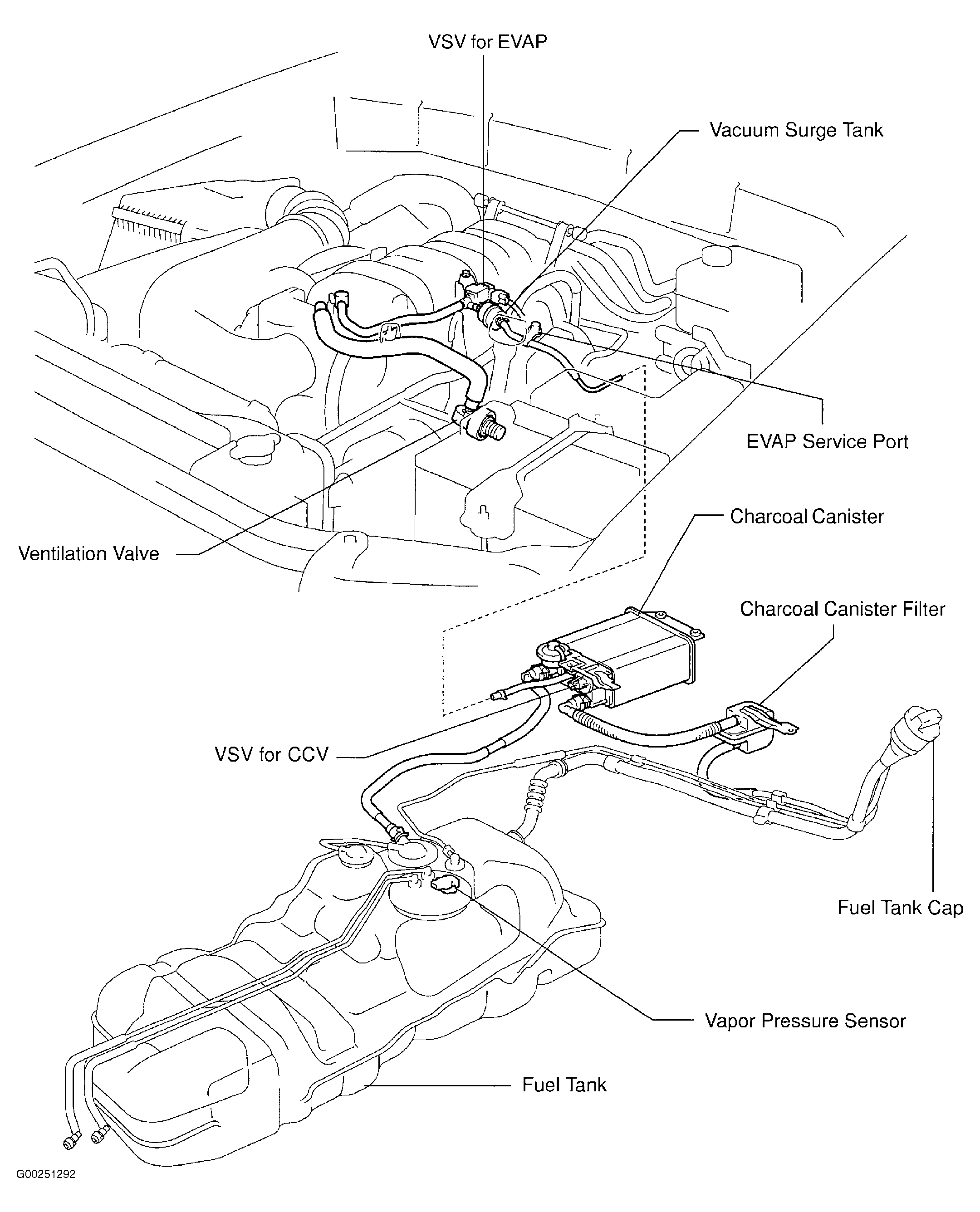

Fig 1: Locating Emission Control System Components
