Fuel Pump Resistor

Using an ohmmeter, measure resistance between terminals. See Fig 1. Resistance should be .70-.76 ohm at 68°F (20°C).

Repair or replace resistor as necessary.

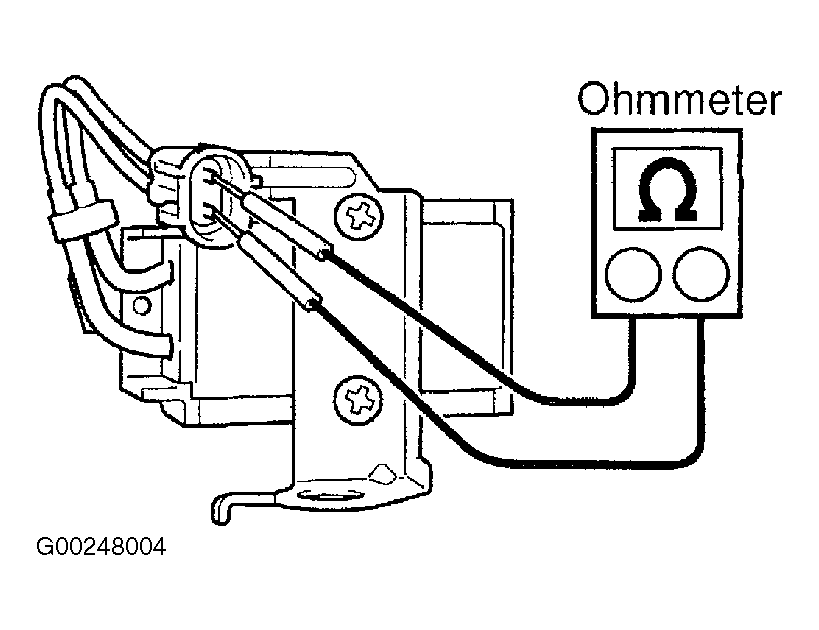

Fig 1: Inspecting Fuel Pump Resistor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
