Vehicle Lift And Support Locations
Vehicle Lift And Support Locations

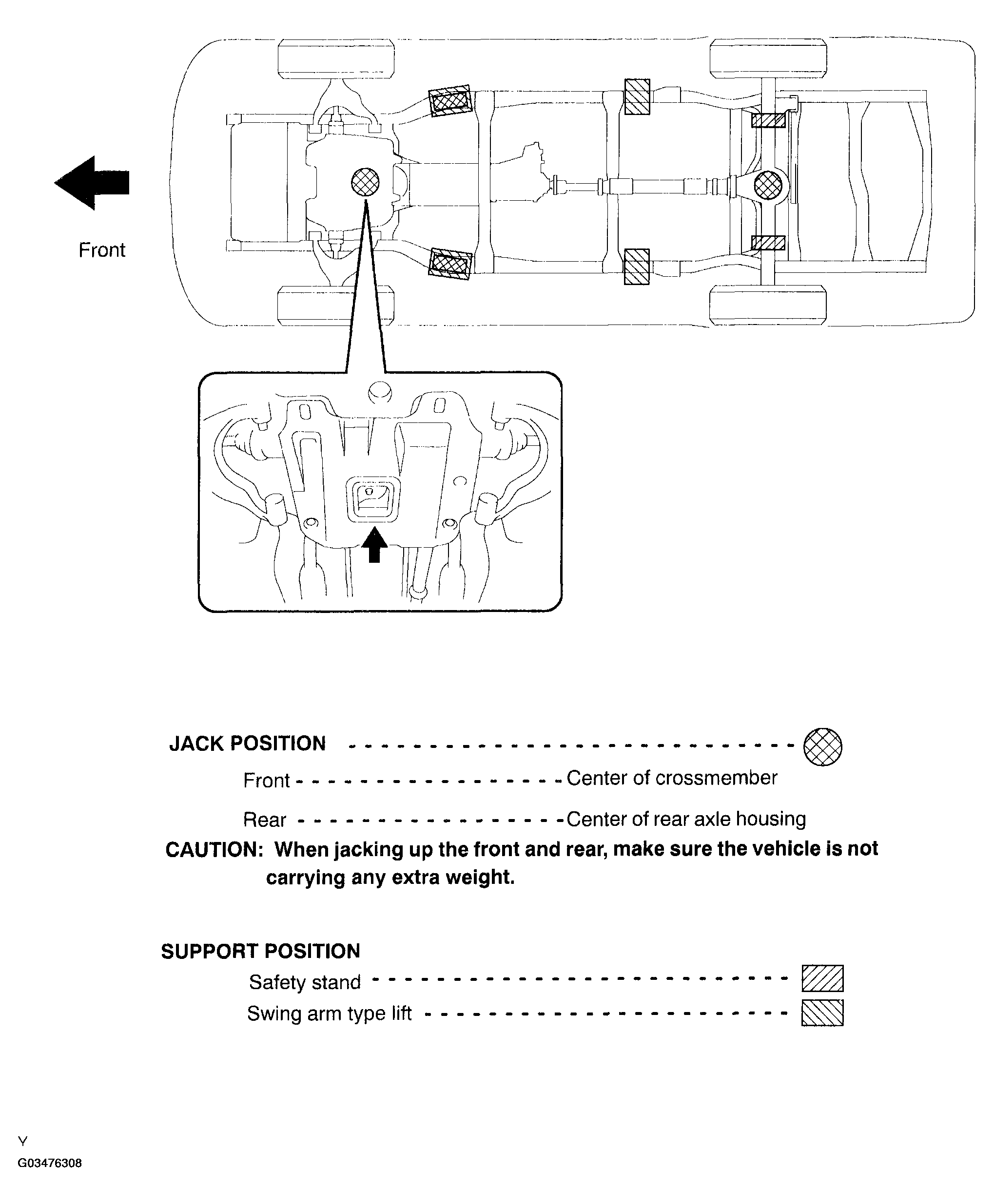

Fig 1: Locating Vehicle Lift & Support
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
