Seat Belt: Location

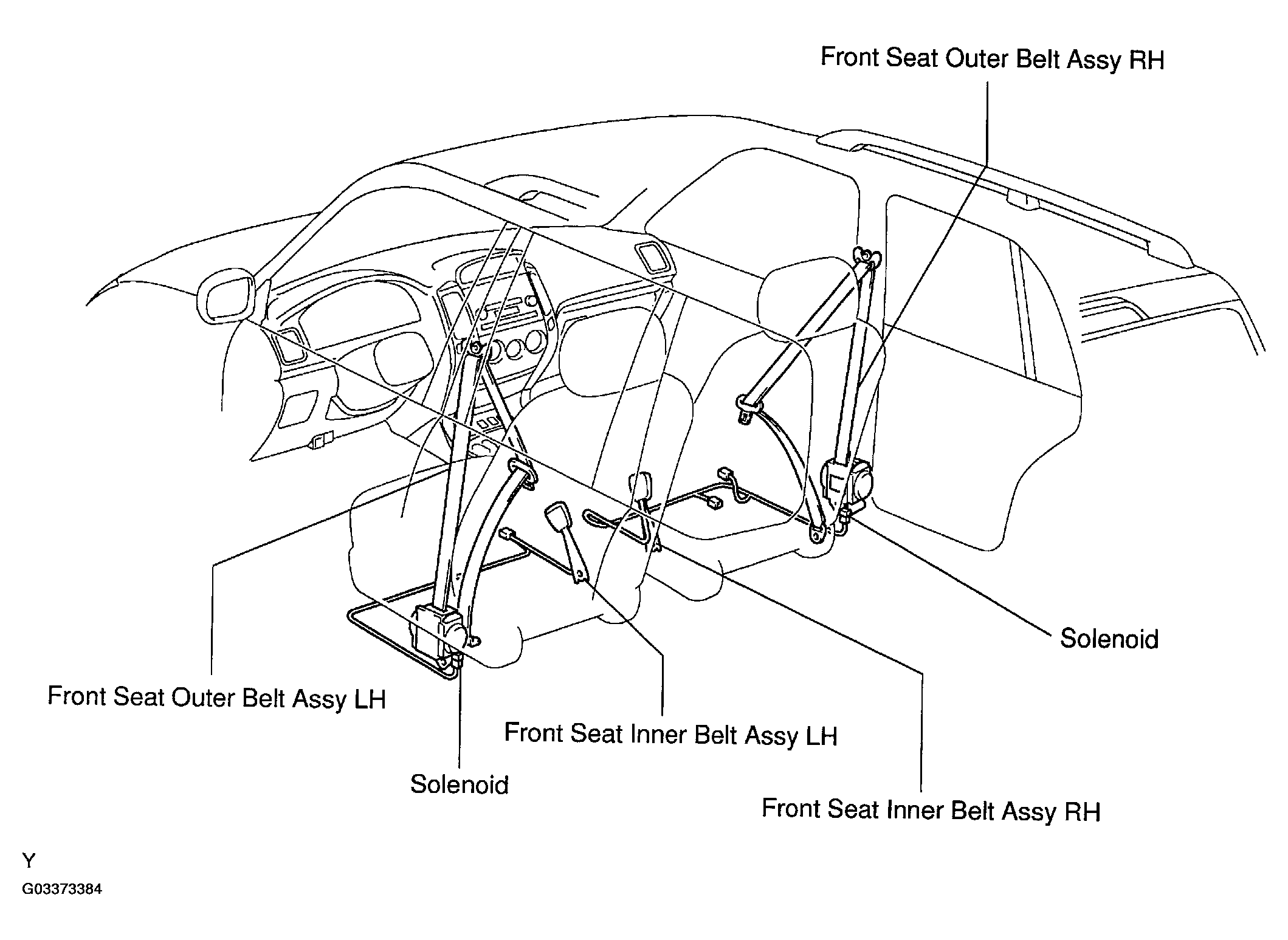

Fig 1: Locating Seat Belt Tension Reducer System Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
