Problem Symptoms Table

HINT:

Use the table below to help you find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

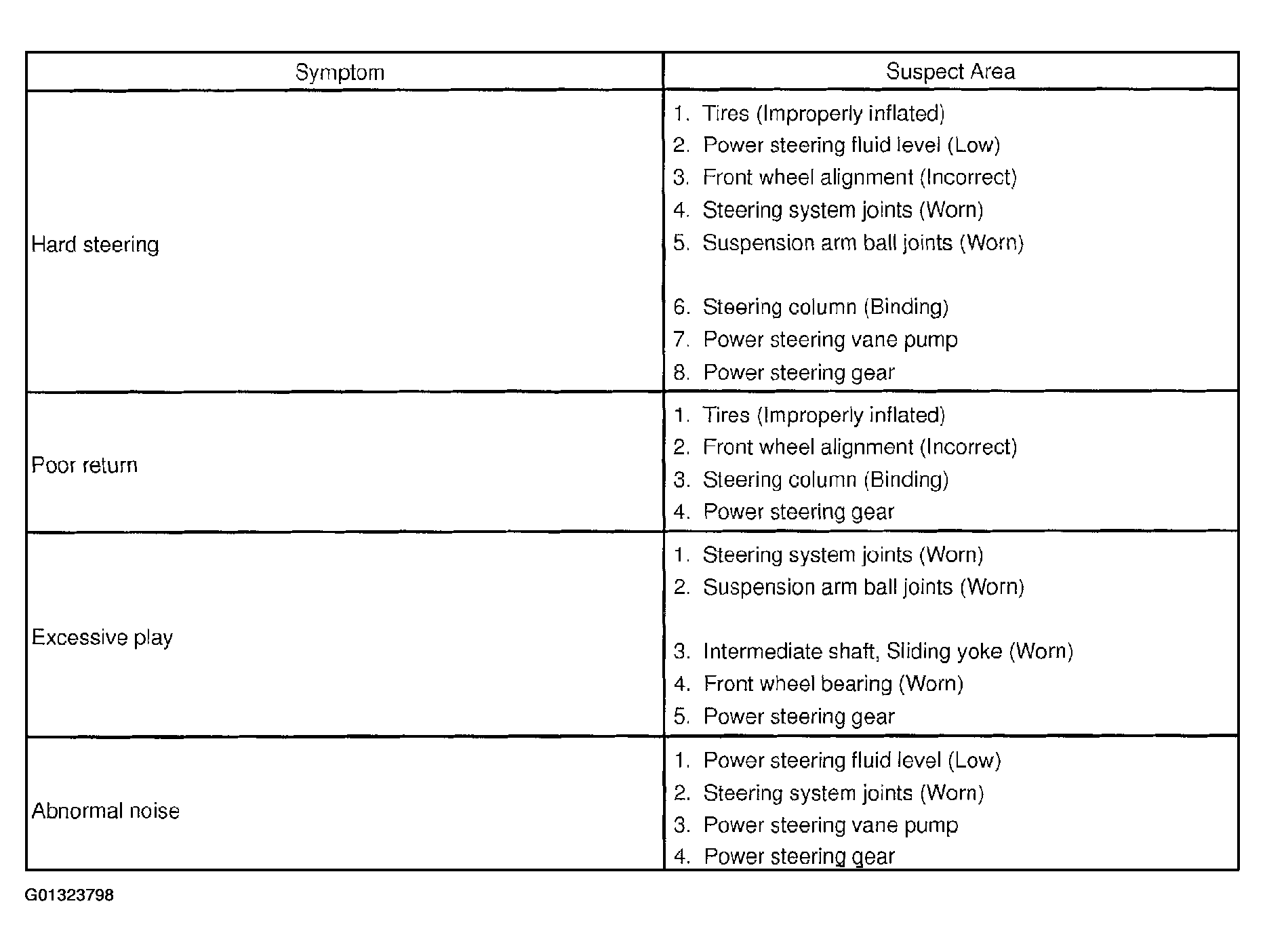

Fig 1: Problem Symptoms Table - Power Steering System
G01323798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
