Tilt & Telescopic Manual Switch: Replacement

  1. REMOVE COVER, STEERING COLUMN, LWR
  2. REMOVE STEERING COLUMN COVER
  3. REMOVE TURN SIGNAL SWITCH ASSY
    1. Remove the 3 screws and turn signal switch assy.
  4. REMOVE TILT & TELESCOPIC MANUAL SWITCH
    1. Disconnect the turn signal switch connector from the turn signal switch.
    2. Pull out the harness VC and MSW from the connector.
    3. Remove the screw and tilt & telescopic manual switch.

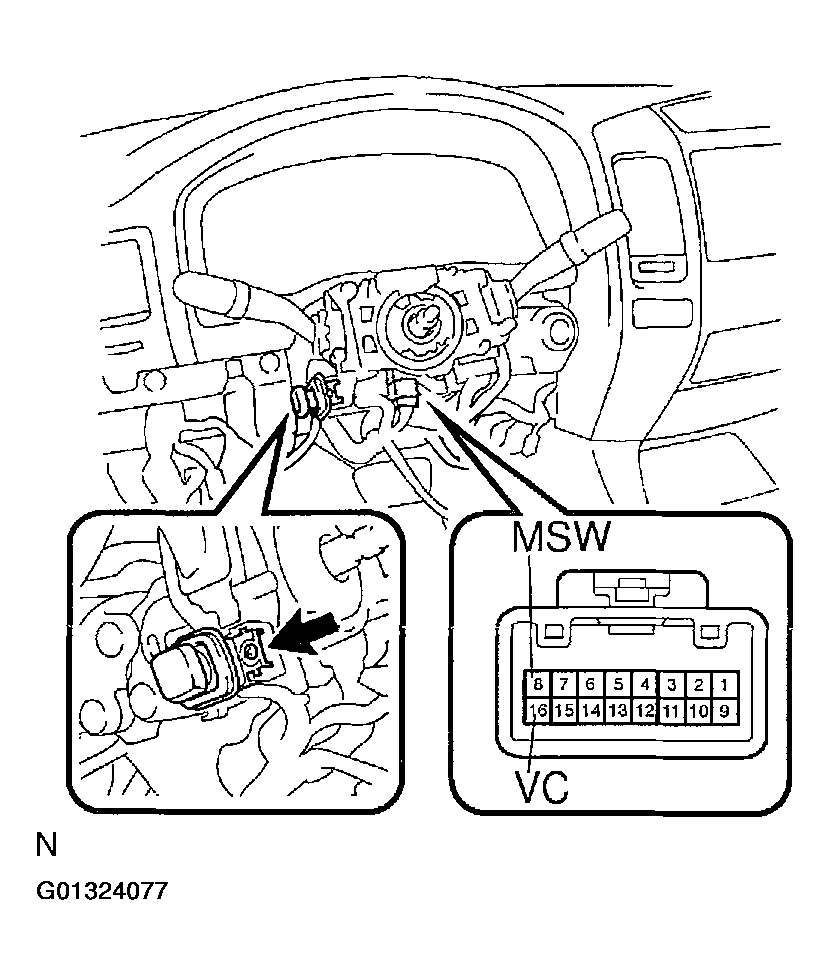

      Fig 1: Pulling Out Harness VC And MSW From Connector
      G01324077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL TILT & TELESCOPIC MANUAL SWITCH
    1. Install the harness VC and MSV to the connector.
    2. Connect the connector to the switch assy.
    3. Install the tilt & telescopic manual switch assy with the screw.
  6. INSTALL TURN SIGNAL SWITCH ASSY
    1. Install the turn signal switch assy with the 3 screws.
  7. INSTALL STEERING COLUMN COVER
  8. INSTALL COVER, STEERING COLUMN, LWR
