Specifications & Procedures: Specifications

Use illustration for front wheel alignment specifications. See Fig 1.

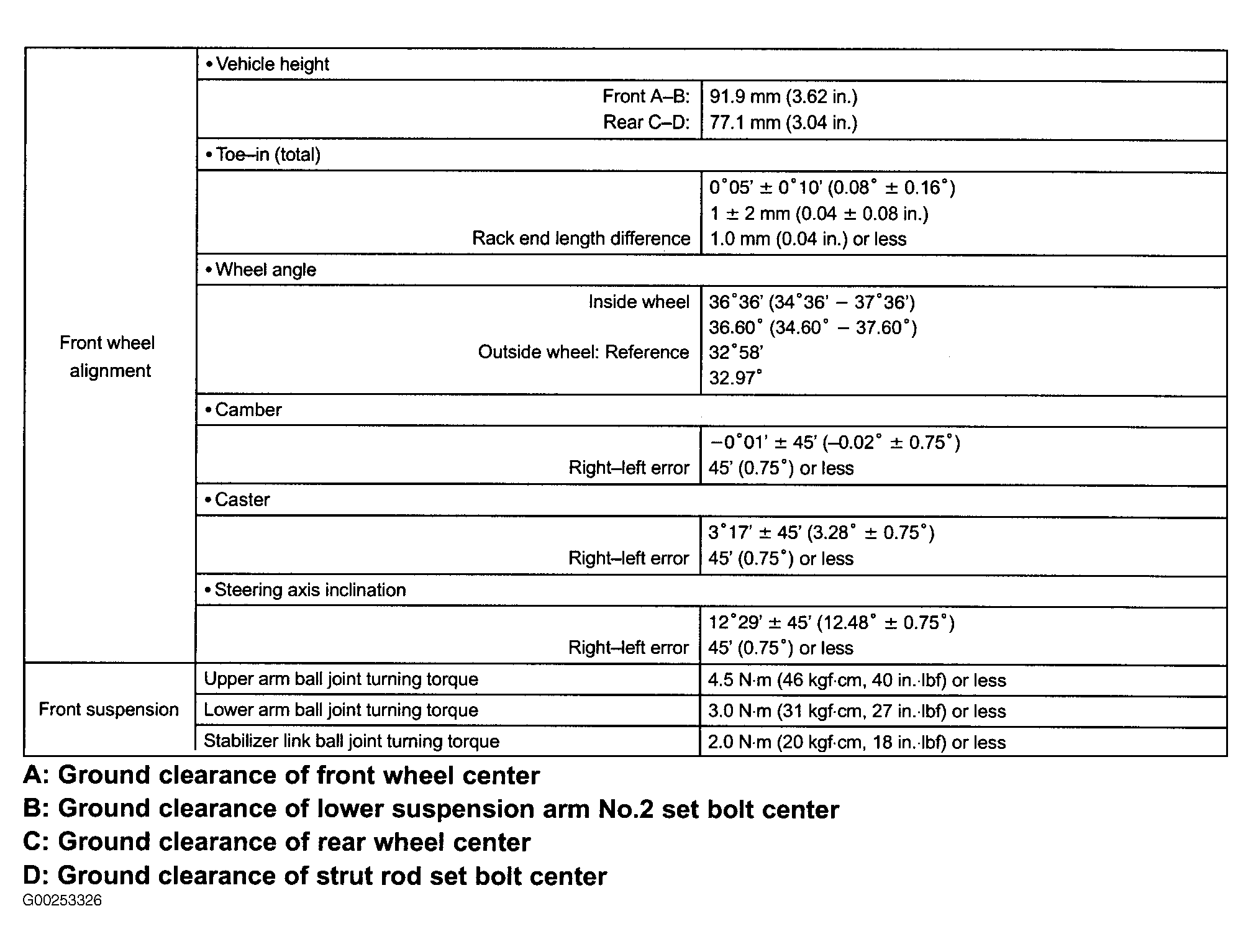

Fig 1: Front Wheel Alignment Specifications (GX 470)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
