Oil Cooler: Installation

Install oil cooler using the following steps:
1. Install oil cooler and 4 bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
2. Install transmission oil cooler hose No. 1 and clip. See Fig 1.
3. Install oil cooler sub hose.
4. Install oil cooler hose and clip.
Add and inspect automatic transmission fluid. See DRAINING & REFILLING under LUBRICATION.

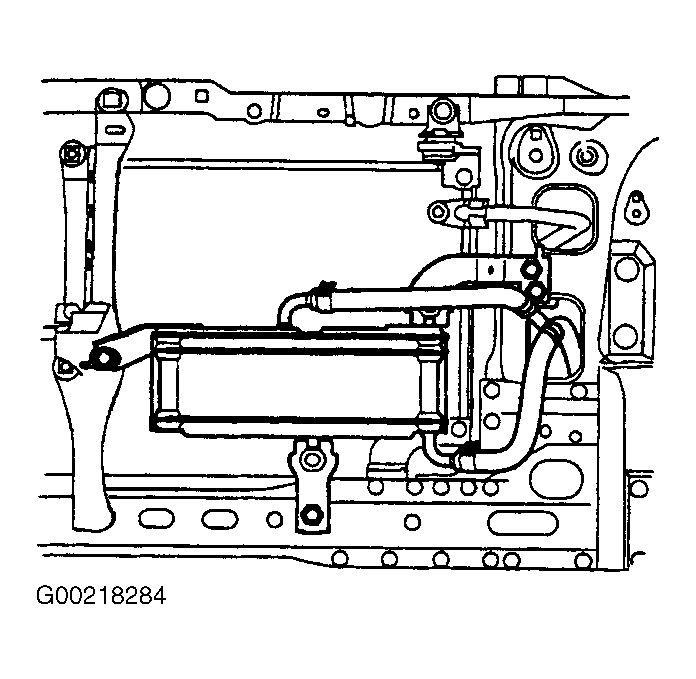

Fig 1: Removing & Installing Oil Cooler Assembly
