Back Door: Components

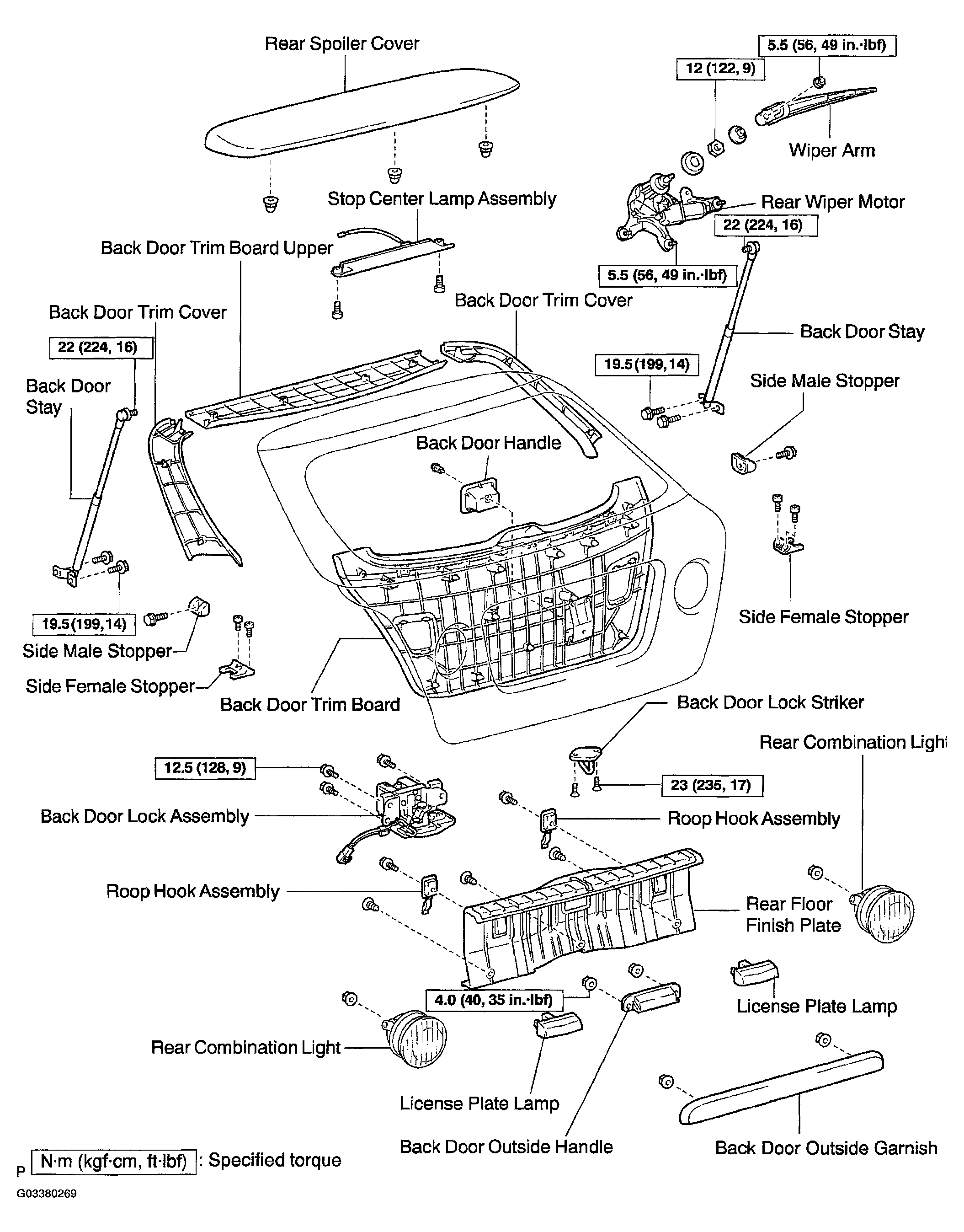

Fig 1: Exploded View Of Back Door Components

G03380269

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
