Home › Lexus › 2003 › IS 300 Base, Automatic › Repair and Diagnosis › Body & Frame › Exterior/Interior Trim › Hood Lock Control › Components

Hood Lock Control: Components

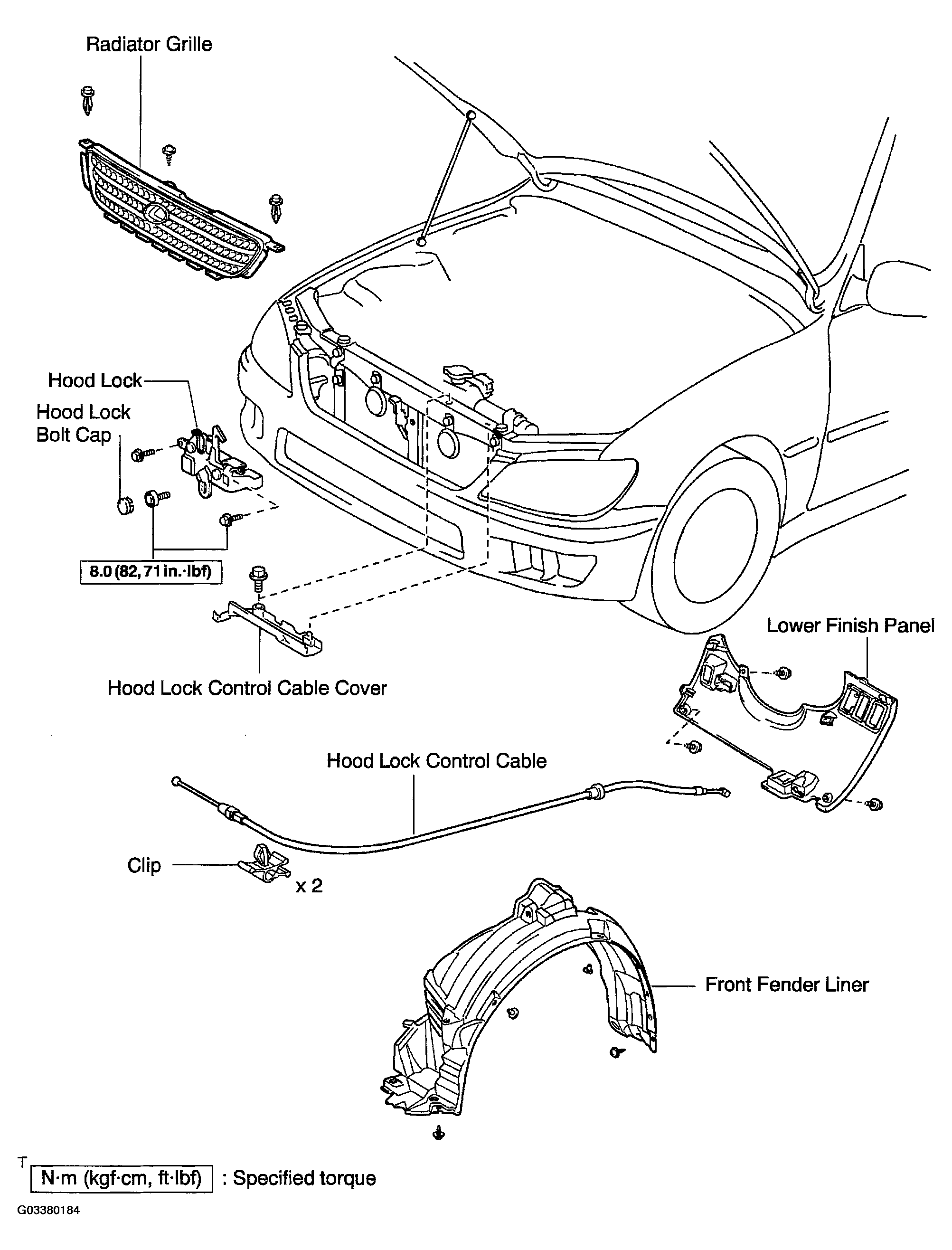

Fig 1: Identifying Components

G03380184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
