Lexus
›
2003
›
IS 300 Base, Automatic
›
Repair and Diagnosis
›
Body & Frame
›
Mirrors
›
Power Mirror Control System
›
Location
Power Mirror Control System: Location

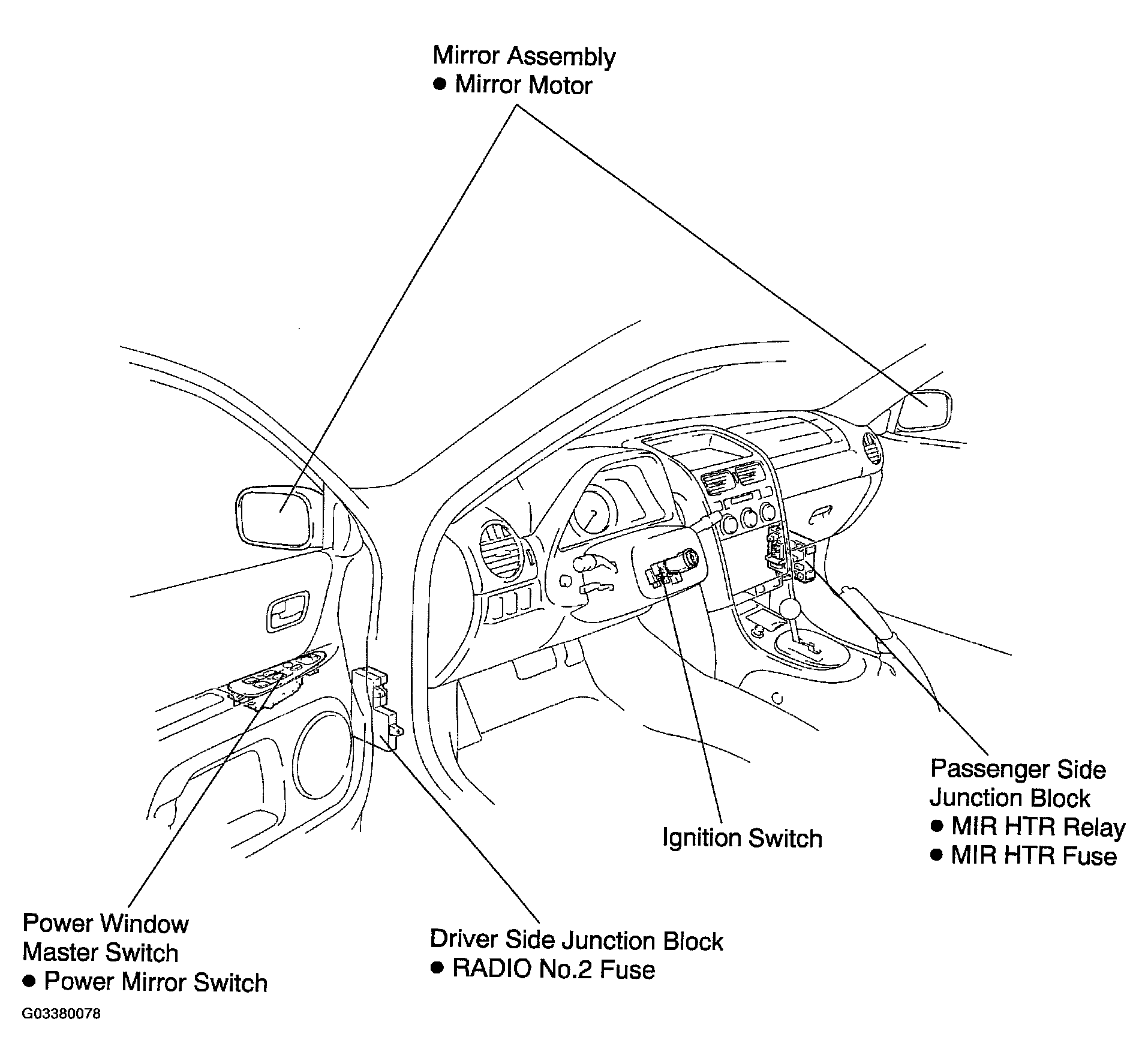

Fig 1: Locating Power Mirror Control System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
