Exhaust System: Components

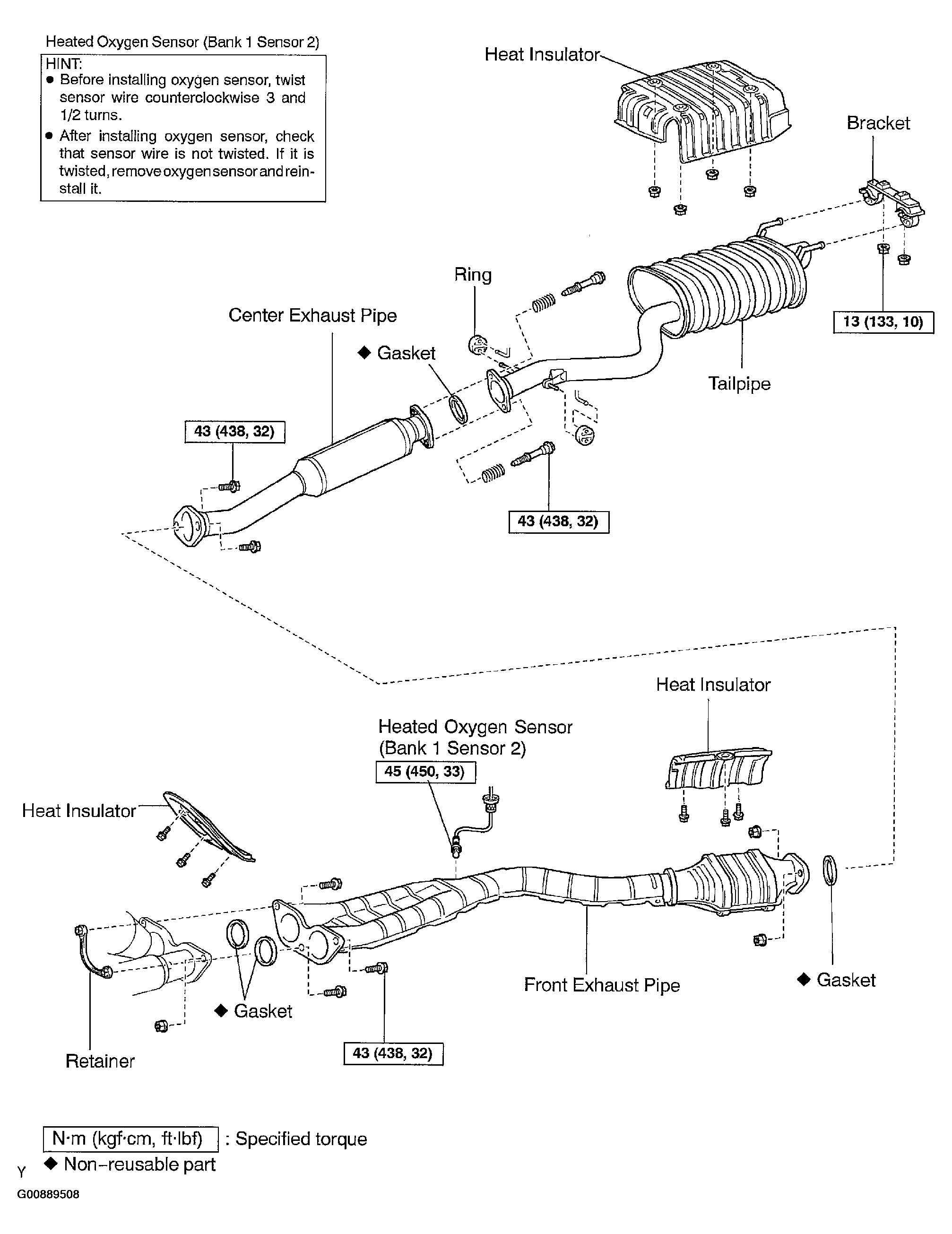

Fig 1: Identifying Components Of Exhaust System

G00889508

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
