Standard Bolt (Service Specifications)
›
How To Determine Bolt Strength
How To Determine Bolt Strength

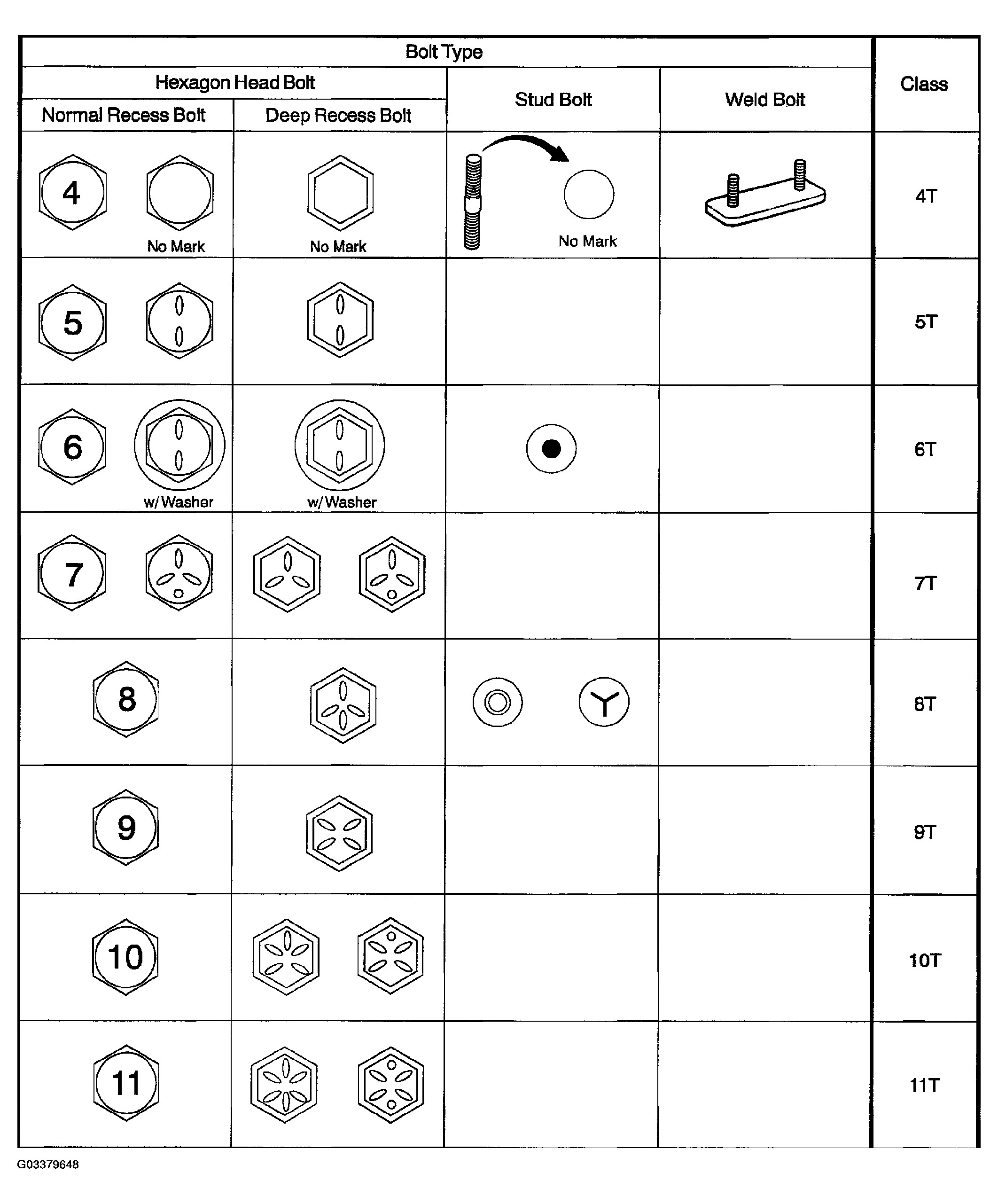

Fig 1: Hexagon Head Bolt Specifications Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
