Seat Belt (Wagon): Components

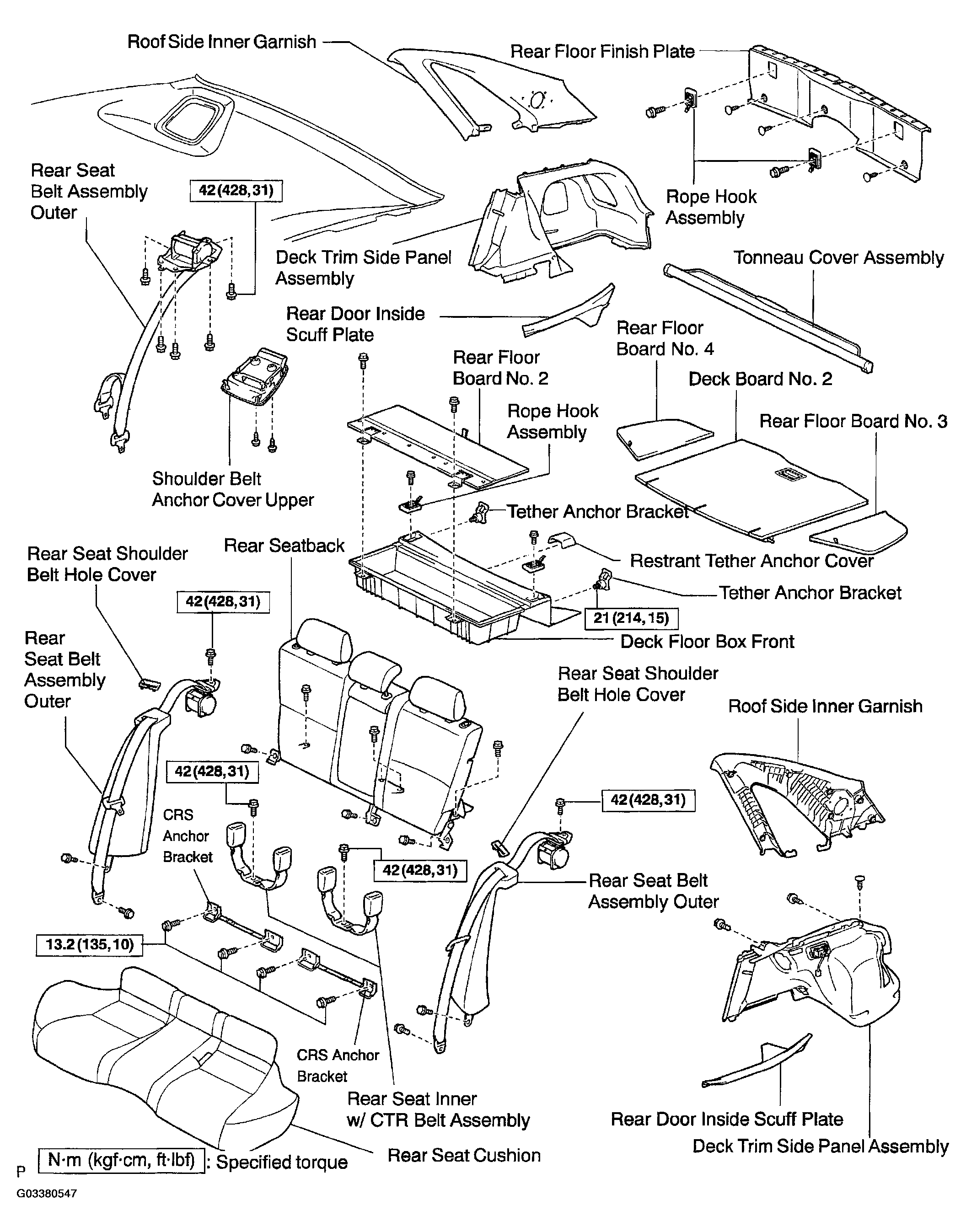

Fig 1: Exploded View Of Seat Belt (Wagon) Components

G03380547

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
