Power Steering Vane Pump: Components

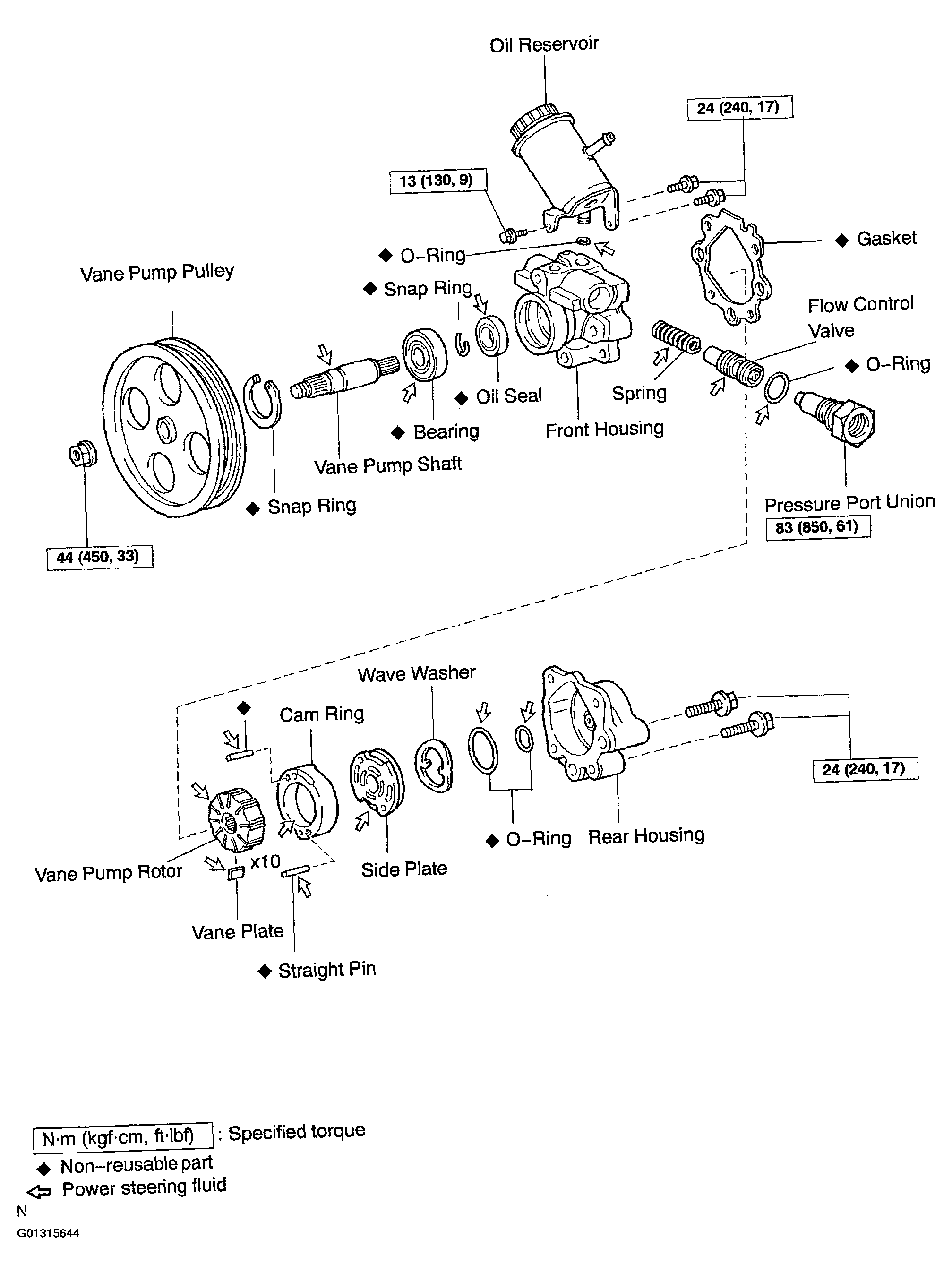

Fig 1: Identifying Power Steering Vane Pump Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Power Steering Vane Pump Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
