Stabilizer Bar: Installation

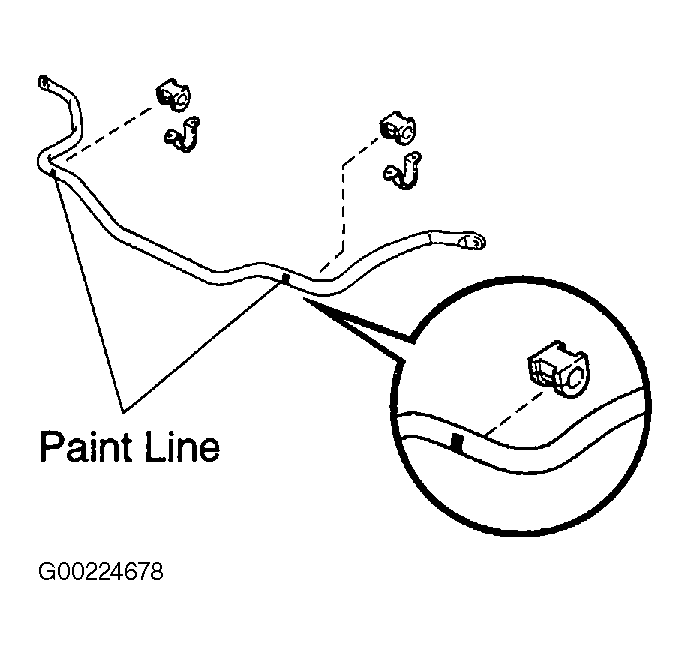

- Install bushings to stabilizer bar so that cutout of bushing faces front of vehicle. Install bushings to outside of paint line on stabilizer bar. See Fig 1.
- Install stabilizer bar to body with bolts. Tighten to specification. See TORQUE SPECIFICATIONS .

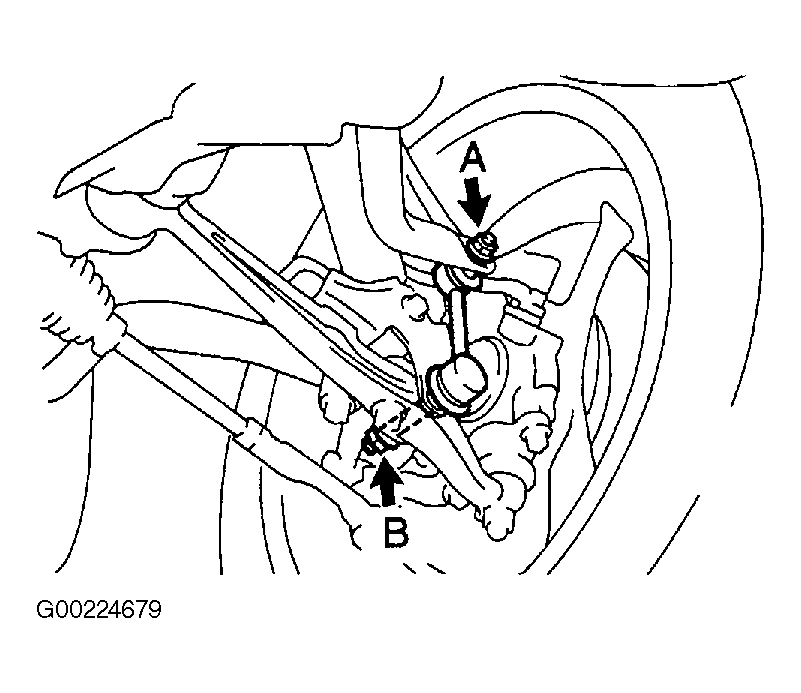

- Install right and left stabilizer bar links. Nut "A" fastens to stabilizer bar. Nut "B" fastens to No. 1 lower control arm. See Fig 2. Tighten to specification. See TORQUE SPECIFICATIONS .
- Install engine under cover.
