Pattern Select Switch Circuit: Wiring Diagram

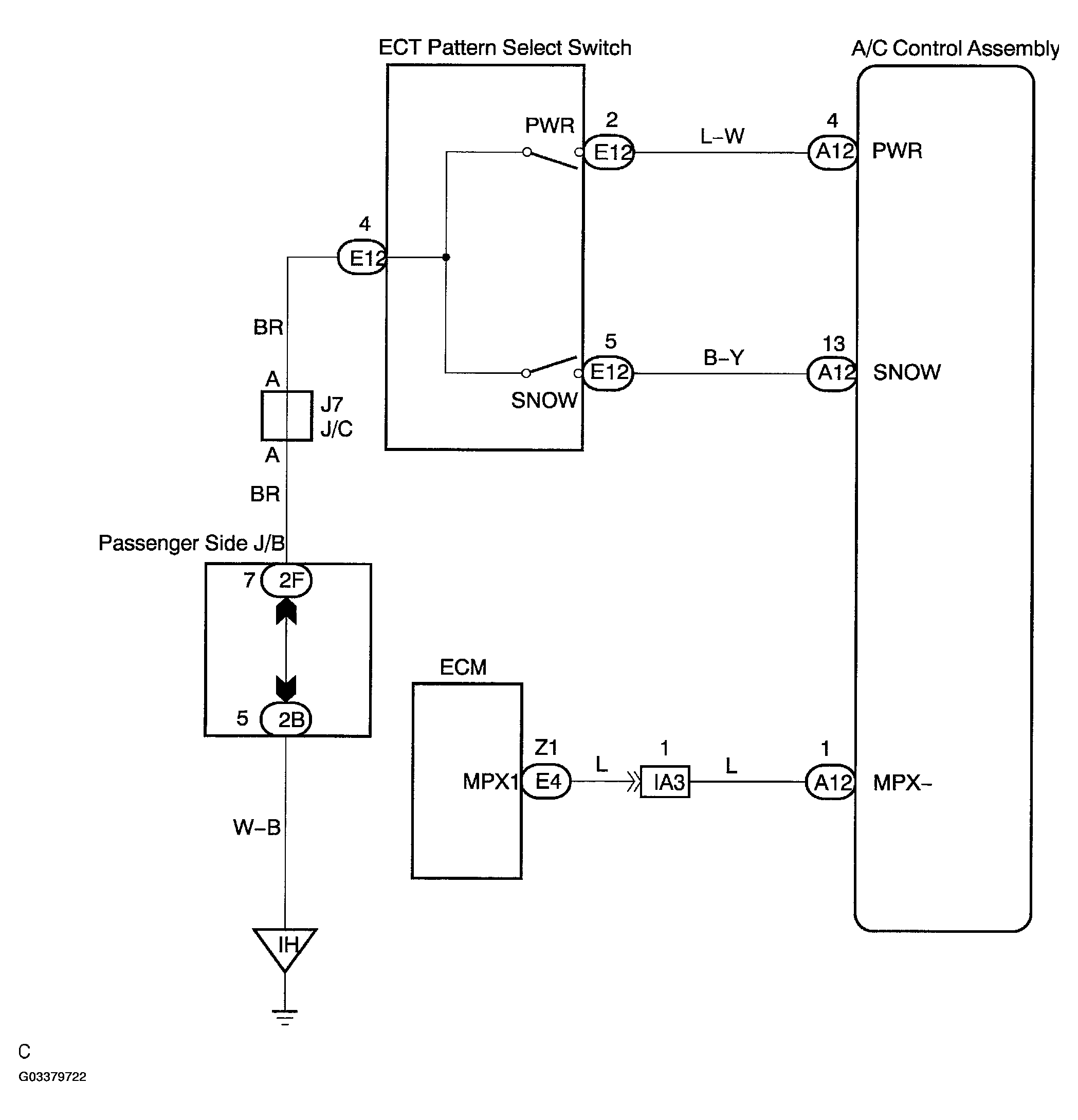

Fig 1: Identifying Wiring Diagram
G03379722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
