Front Seat (Power Adjuster Type): Disassembly

Remove the 4 screws and front seat cushion outer shield.

Fig 1: Removing Front Seat Cushion Outer Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the 2 screws and front seat cushion inner shield.

Fig 2: Removing Front Seat Cushion Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 screws.
2. Unlatch the seat cushion cover hook, then remove the seat cushion front shield.
   Fig 3: Removing Seat Cushion Front Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connectors and unlatch the wire harness clamps.
2. Remove the 4 bolts and seat cushion assembly with wire harness.
3. Unlatch the wire harness clamps to remove the wire harness from seat cushion assembly.
   Fig 4: Removing Seat Cushion Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the hog rings.
2. Unlatch the seat cushion cover hooks and remove the seat cushion frame from the seat cushion cover with pad.
3. Remove the hog rings and seat cushion cover from the seat cushion pad.
   Fig 5: Removing Seat Cushion Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE SEATBACK BOARD

Using a screwdriver, remove the seatback board.

HINT:

Tape the screwdriver tip before use.

1. Remove the hog rings.
2. Turn the seatback cover over, then remove the hog rings.

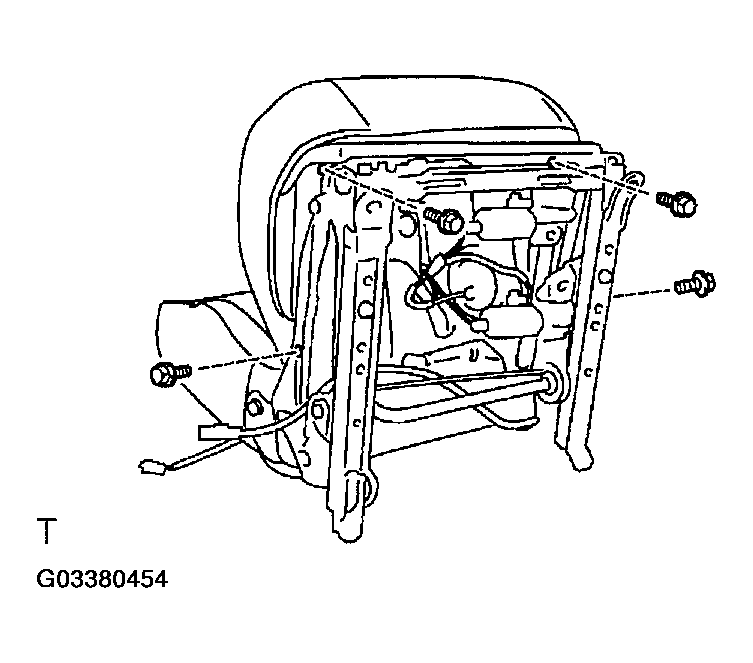

3. Remove the 4 seatback assembly set bolts.
   NOTE: Be careful not to pull the side airbag assembly wire harness.
   Fig 6: Removing Seatback Assembly Set Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

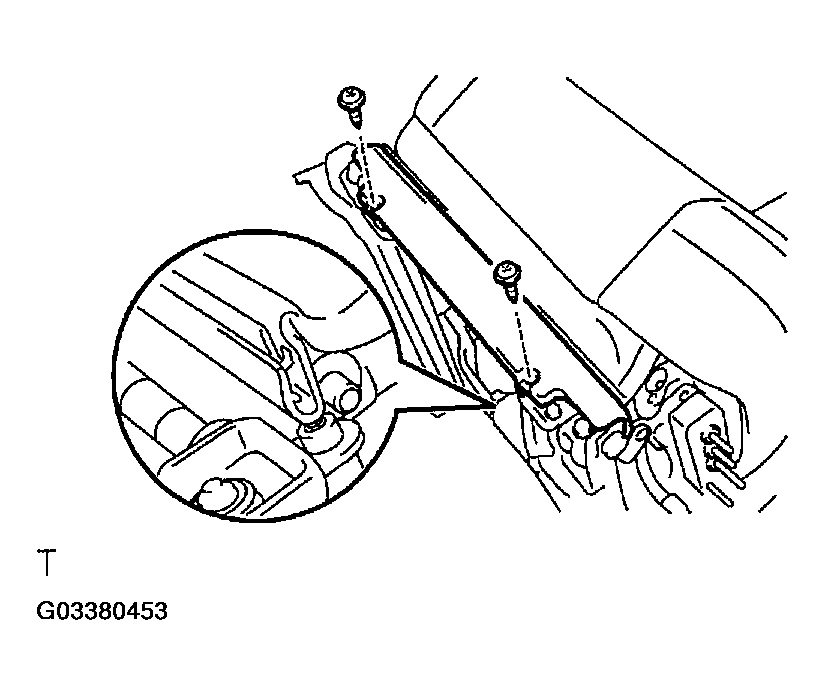

4. Remove the 2 screws and reclining adjuster inside cover and employ the same manner described above to the other side.
5. Disengage the side airbag assembly wire harness from the reclining adjuster inside cover, then remove the seat-back assembly.
   Fig 7: Removing Screws And Reclining Adjuster Inside Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the No. 1 and No. 2 airbag covers.

   HINT:

   Tape the screwdriver tip before use.

   Fig 8: Removing No. 1 And No. 2 Airbag Covers

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts.
3. Slide the airbag door upward to remove it.
   Fig 9: Removing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Disengage the seatback cover hooks around the side air-bag assembly.
5. w/ Table:

   Using a screwdriver, remove the reclining adjuster release handle and employ the same manner described above to the other side.

   HINT:

   Tape the screwdriver tip before use.

   Fig 10: Disengaging Seatback Cover Hooks Around Side Air-Bag Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. w/ Table:

   Remove the screw and front seatback shield and employ the same manner described above to the other side.

7. w/ Table:

   Remove the 2 bolts and front seatback lock and employ the same manner described above to the other side.

8. Remove the hog rings, headrest supports and seatback cover.
9. Remove the hog rings, headrest supports and seatback cover as shown in the illustration.
   Fig 11: Removing Screw And Front Seatback Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the bolt, washer and front seat inner belt.

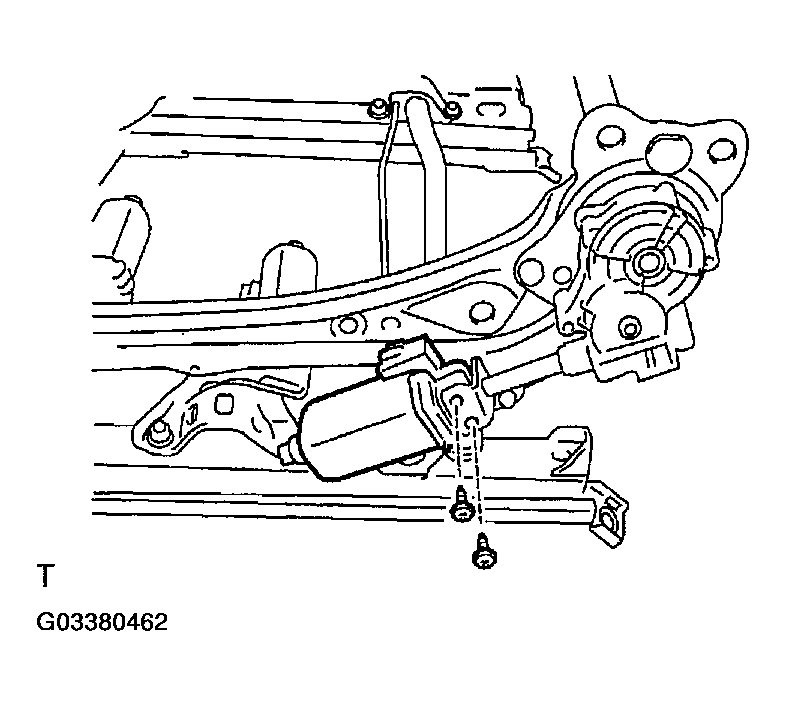

Remove the 2 screws, then disconnect the reclining motor.

Fig 12: Removing Reclining Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

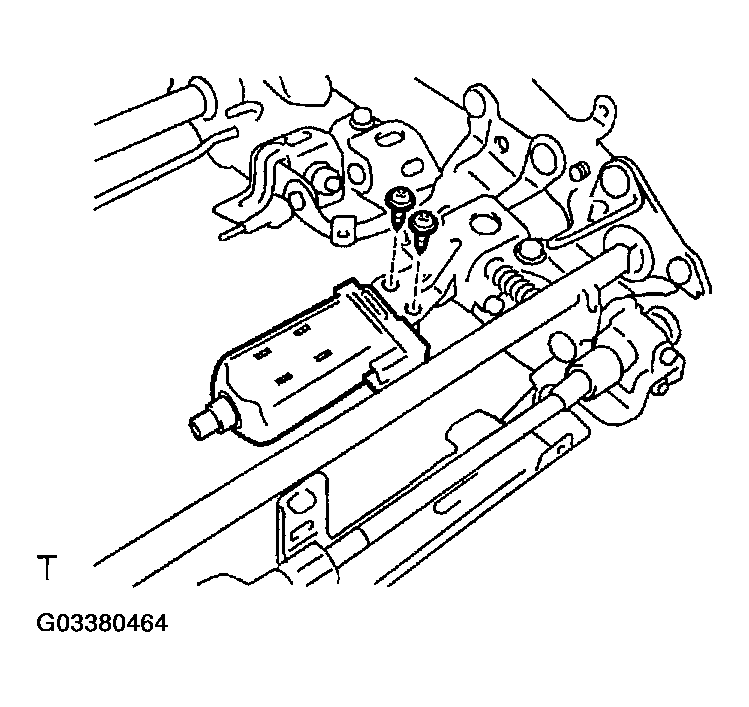

Remove the 2 screws, then disconnect the lifter motor.

Fig 13: Removing Lifter Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

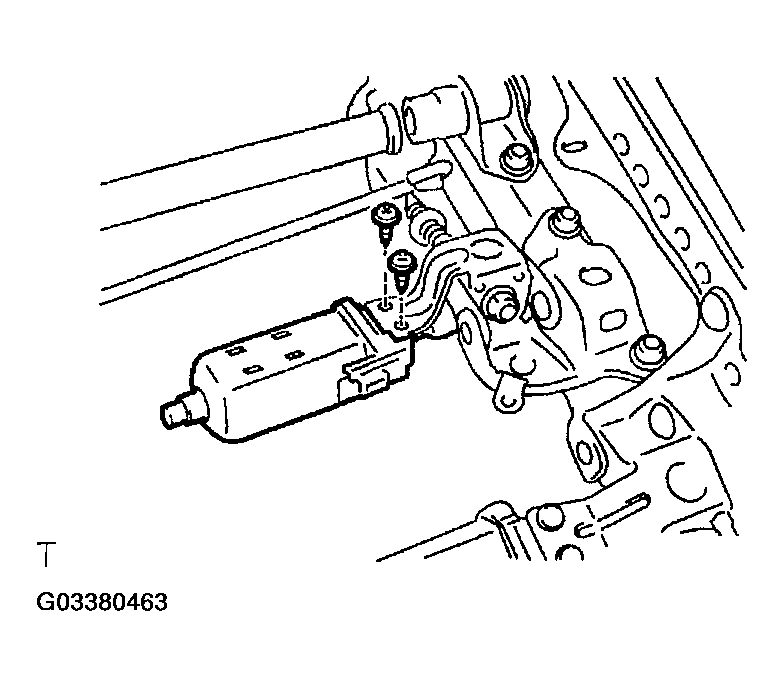

Remove the 2 screws, then disconnect the front vertical motor.

Fig 14: Removing Front Vertical Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

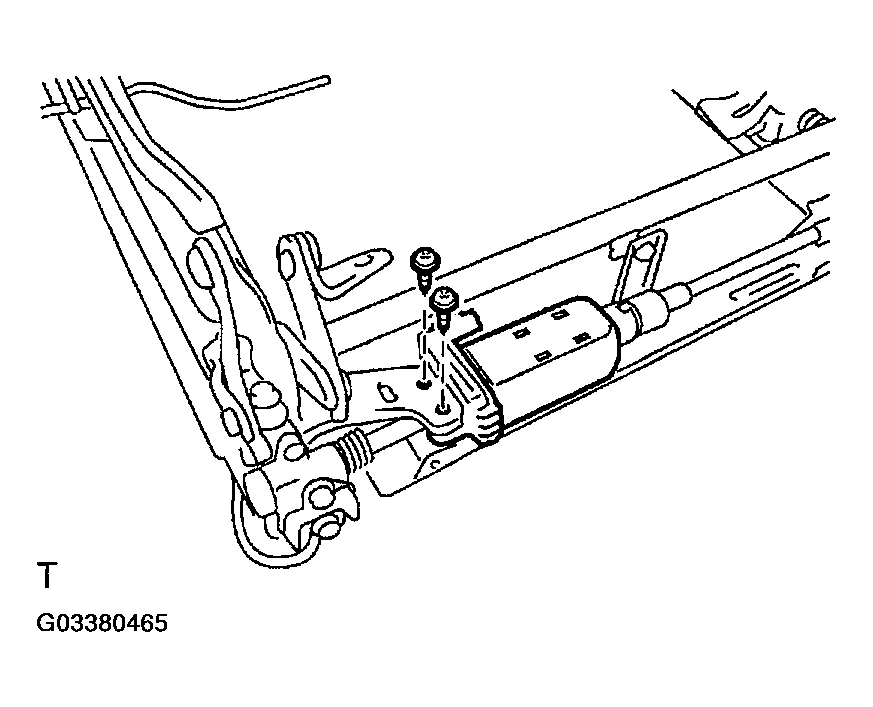

Remove the 2 screws, then disconnect the sliding motor.

Fig 15: Removing Sliding Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

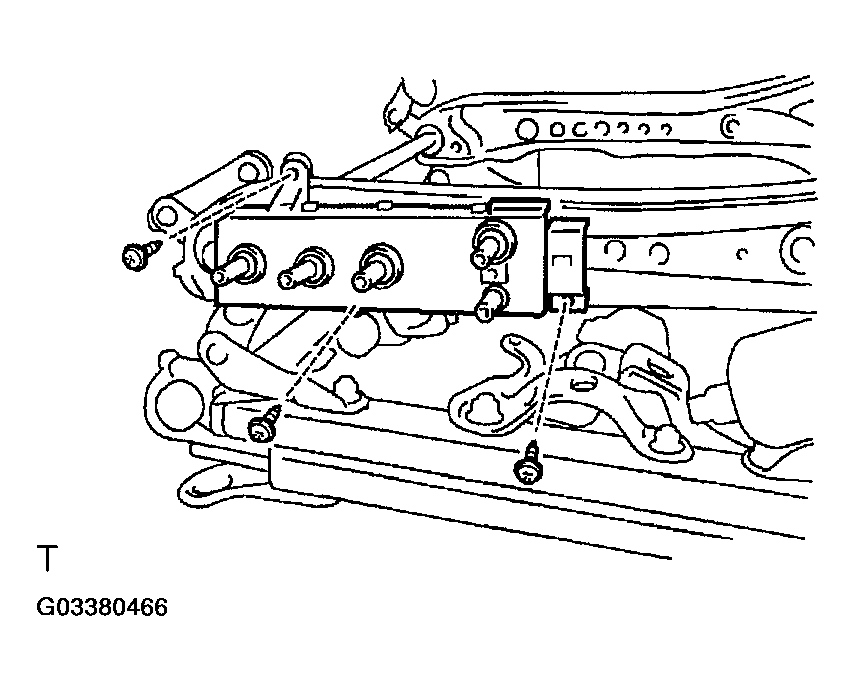

Remove the 3 screws and power seat switch.

Fig 16: Removing Power Seat Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
