Front Seat (Power Adjuster Type): Reassembly

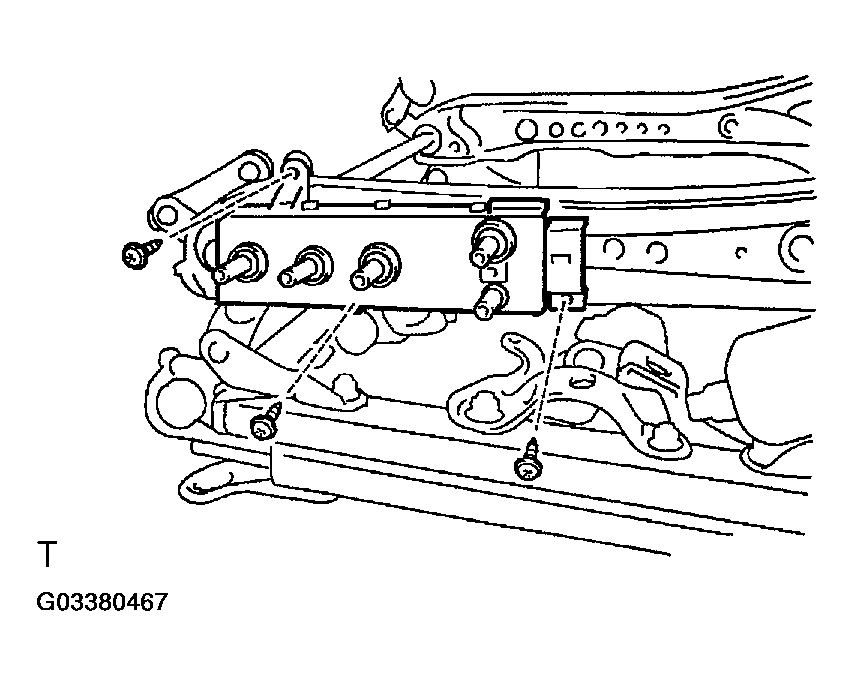

Install the power seat switch with the 3 screws.

Fig 1: Installing Power Seat Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

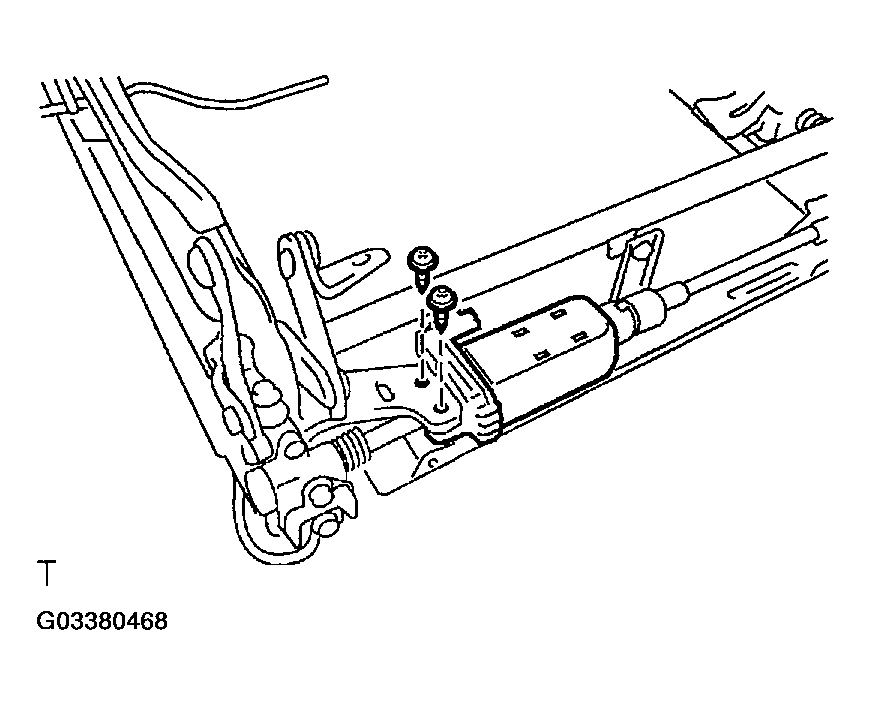

Connect the slide motor to the shaft, then install the 2 screws.

Fig 2: Installing Sliding Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

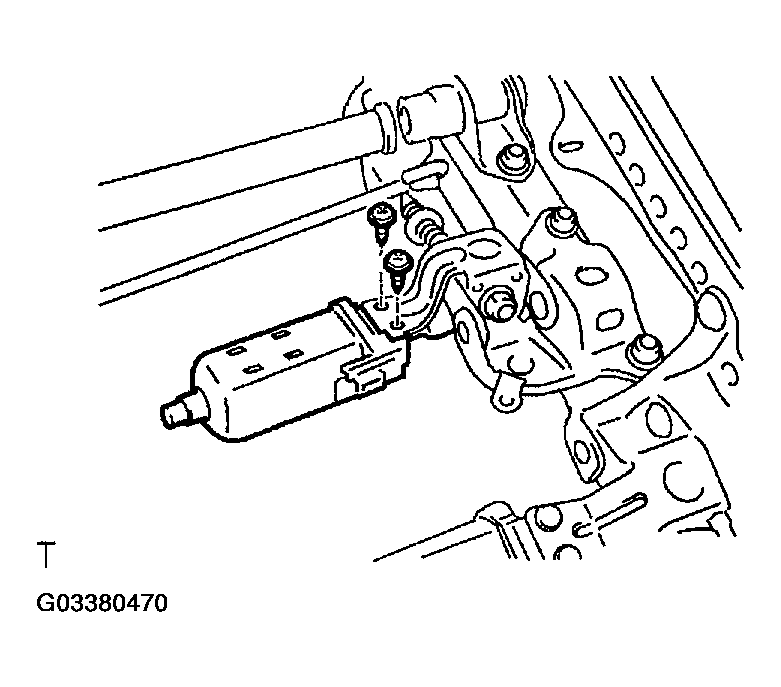

Connect the front vertical motor, then install the 2 screws.

Fig 3: Installing Front Vertical Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

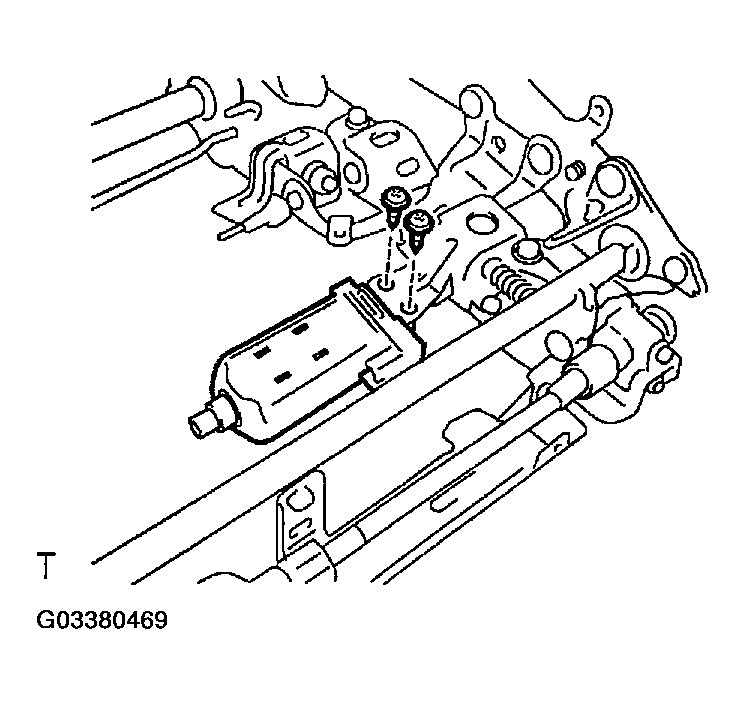

Connect the lifter motor, then install the 2 screws.

Fig 4: Installing Lifter Motor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

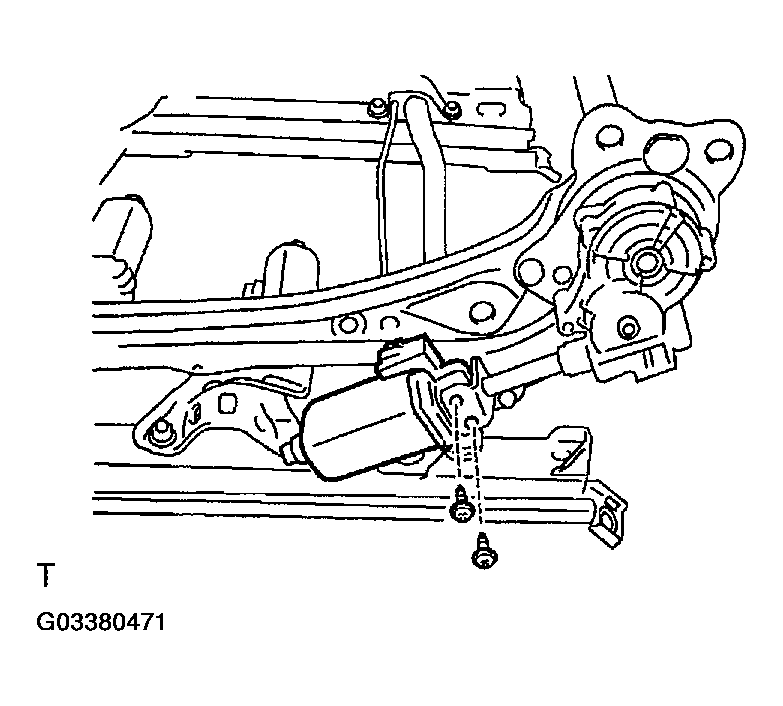

Connect the reclining motor, then install the 2 screws.

Install the front seat inner belt with the bolt and washer.

Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

Fig 5: Installing Front Seat Inner Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seatback cover with new hog rings.

   HINT:

   When installing the hog rings, take care to prevent wrinkles as little as possible.

2. Install the headrest supports.
3. w/ Table:

   Install the front seatback lock with the 2 bolts, and employ the same manner described above to the other side.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

4. w/ Table:

   Set the side airbag assembly wire harness to the front seat back shield.

5. w/ Table:

   Install the front seatback shield with the screw, and employ the same manner described above to the other side.

6. w/ Table:

   Install the reclining adjuster release handle, and employ the same manner described above to the other side.

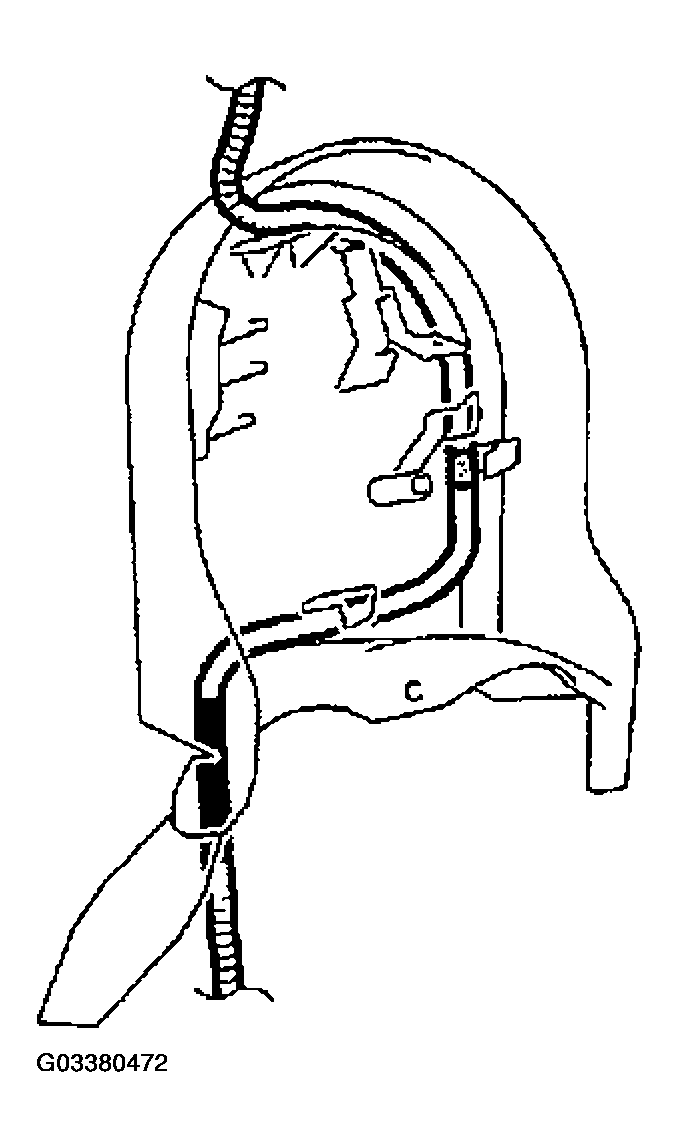

   Fig 6: Setting Side Airbag Assembly Wire Harness To Front Seat Back Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Hook the seatback cover hooks through the holes around the side airbag assembly.
   Fig 7: Hooking Seatback Cover Hooks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. Slide the airbag door downward to install it.
9. Install the 2 bolts.

   Torque: 4.7 N.m (48 kgf.cm, 42 in.lbf)

   Fig 8: Installing Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. Install the No.1 and No.2 airbag covers.
    Fig 9: Installing No.1 And No.2 Airbag Covers

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Set the side airbag assembly wire harness to the reclining adjuster inside cover.

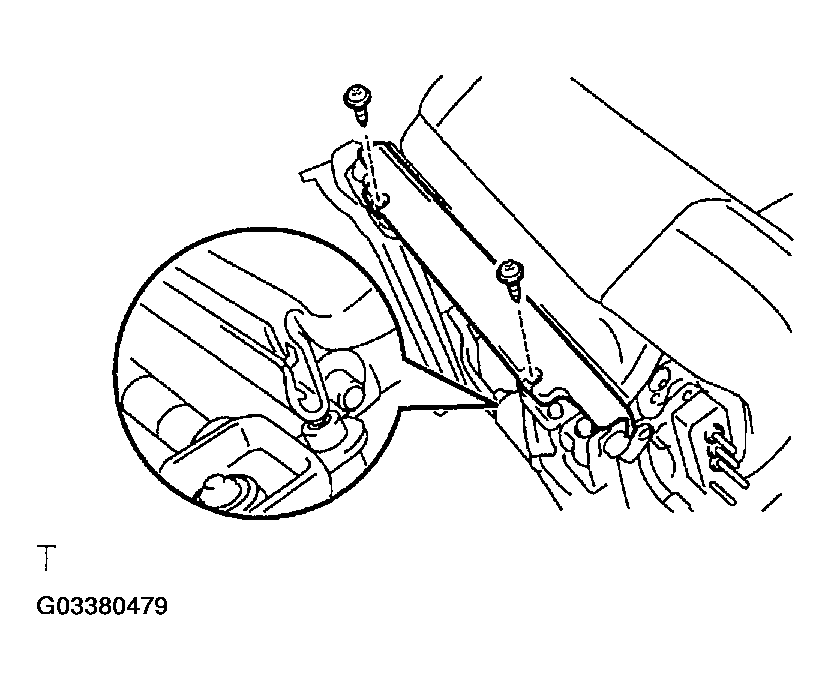

2. Install the 2 screws and reclining adjuster inside cover, and employ the same manner described above to the other side.
   Fig 10: Installing Screws And Reclining Adjuster Inside Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

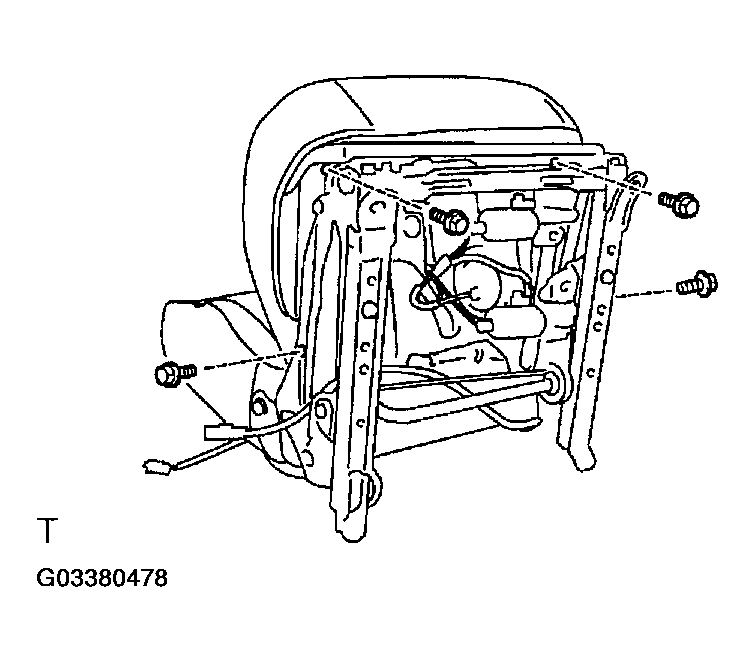

3. Install the seatback assembly with the 4 bolts.

   Torque: 43 N.m (440 kgf.cm, 32 ft.lbf)

4. Turn the seatback cover over, then install new hog rings.

   HINT:

   When installing the hog rings, take care to prevent wrinkles as little as possible.

5. Install new hog rings.

   HINT:

   When installing the hog rings, take care to prevent wrinkles as little as possible.

INSTALL SEAT BACK BOARD

1. Install the seat cushion cover with new hog rings to the seat cushion pad.

   HINT:

   When installing the hog rings, take care to prevent wrinkles as little as possible.

2. Latch the seat cushion cover hooks to install the seat cushion cover with pad to the seat cushion pad.
3. Install 6 new hog rings.

   HINT:

   When installing the hog rings, take care to prevent wrinkles as little as possible.

   Fig 11: Installing Seat Cushion Cover With Pad To Seat Cushion Pad

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the seat cushion assembly with the 4 bolts.

   Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

2. Attach the wire harness clamps.
3. Attach the side airbag assembly wire harness clamps.
   Fig 12: Installing Seat Cushion Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Latch the seat cushion cover hook to the seat cushion front shield.
2. Install the seat cushion front shield with the 2 screws.
   Fig 13: Installing Seat Cushion Front Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the front seat cushion inner shield with the 2 screws.

Fig 14: Installing Front Seat Cushion Inner Shield

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install the front seat cushion outer shield with the 4 screws.
