Combination Meter: Disassembly

1. Remove the combination meter assembly from the instrument panel. See INSTRUMENT PANEL .
2. Remove the combination meter glass and plate No. 1. See Fig 1.
3. Remove the combination meter case. Separate the wiring harness connector at the upper side of the combination meter assembly from the combination meter computer. Remove the 6 screws and remove the combination meter.
4. Remove the wiring harness.
CAUTION: Use gloves so as not to scratch or stain the panel surface. Do not apply unnatural force.
5. Remove the speedometer assembly. Pull the speed meter assembly out and disconnect the engagement of the combination meter computer assembly to remove the speed meter assembly.
6. Remove the engine tachometer and then the fuel receiver gauge in the same way as the speedometer.
7. Remove the trip knob and combination meter computer assembly.

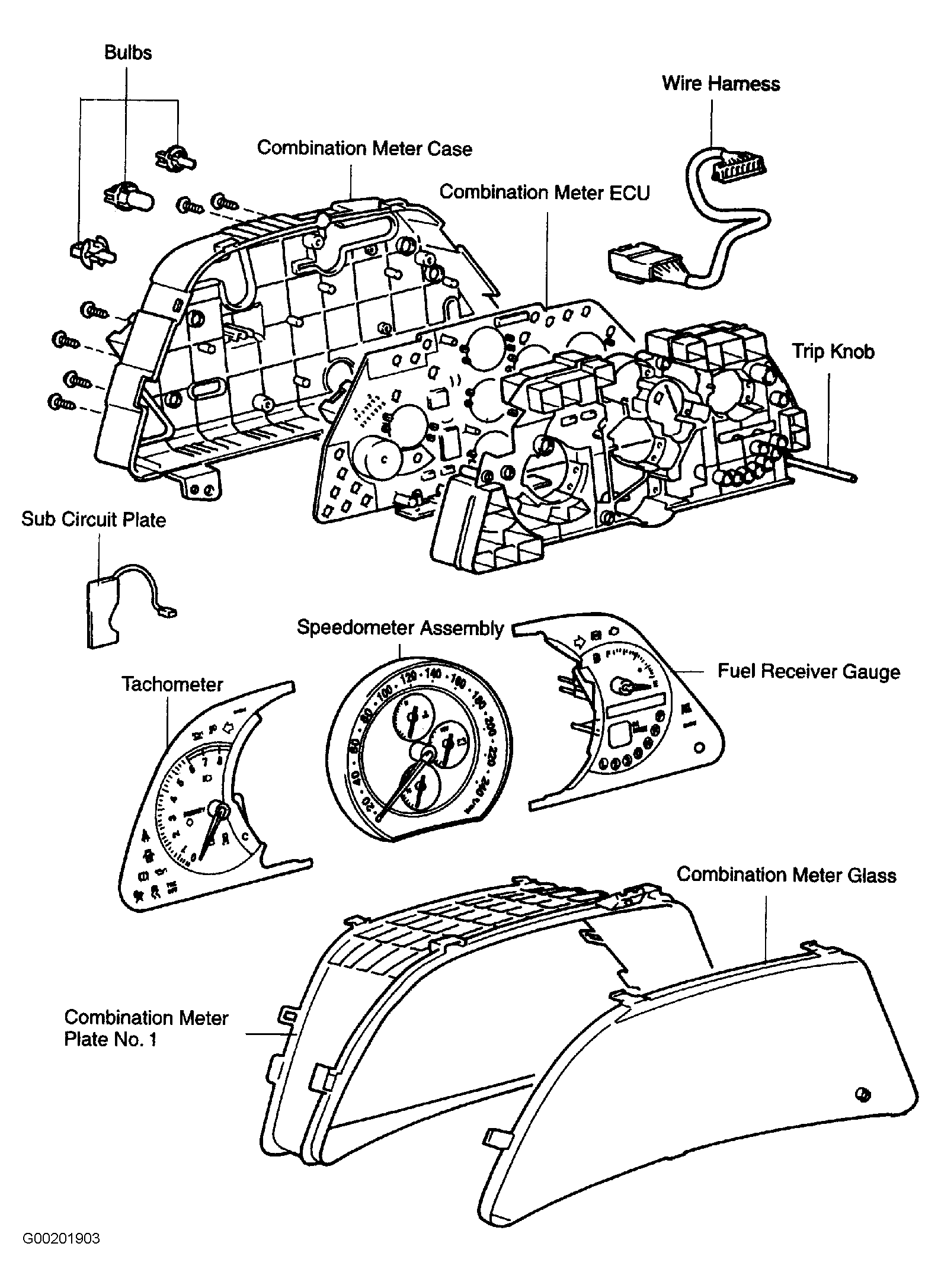

Fig 1: Exploded View Of Combination Meter Assembly
