Combination Meter: Reassembly
- Install the combination meter computer assembly and trip knob. See Figure.
- Install the fuel receiver gauge to the combination computer assembly and check that the gauge terminals are fitted securely. See Fig 1.
- Install the engine tachometer to the combination computer assembly and check that the gauge terminals are fitted securely. See Fig 2.
- Install the speedometer to the combination computer assembly and check that the gauge terminals are fitted securely. See Fig 3.

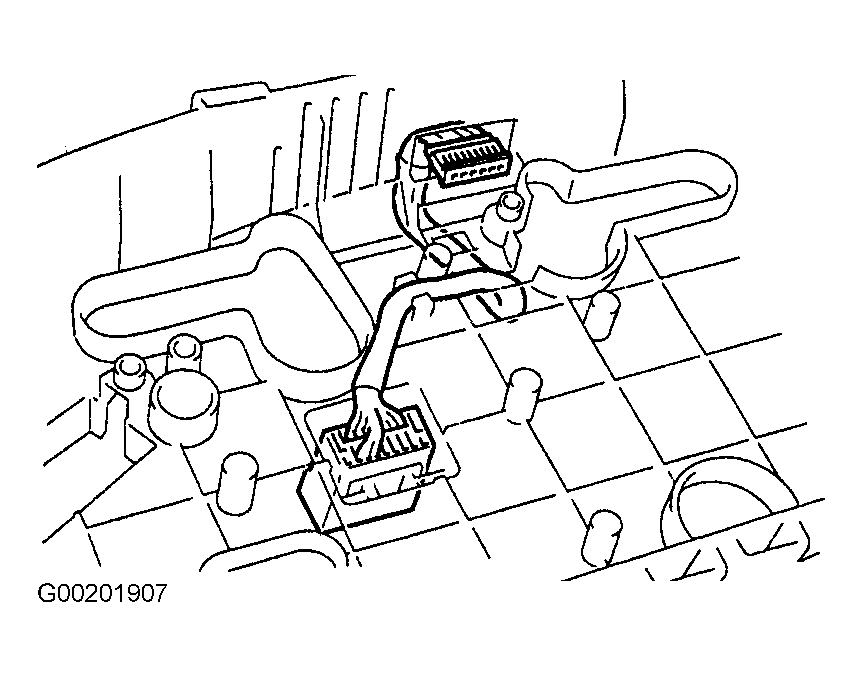

- Route the wiring harness and install it to the combination meter case. See Fig 4.
- Install the combination meter case. Install the combination meter with 6 screws. Connect the wiring harness connector at the upper side of the combination meter assembly to the combination meter computer.
- Install the combination meter plate No. 1 and glass.
- Install the combination meter assembly to the instrument panel. See INSTRUMENT PANEL .
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
