Servicing - A/T: Operation

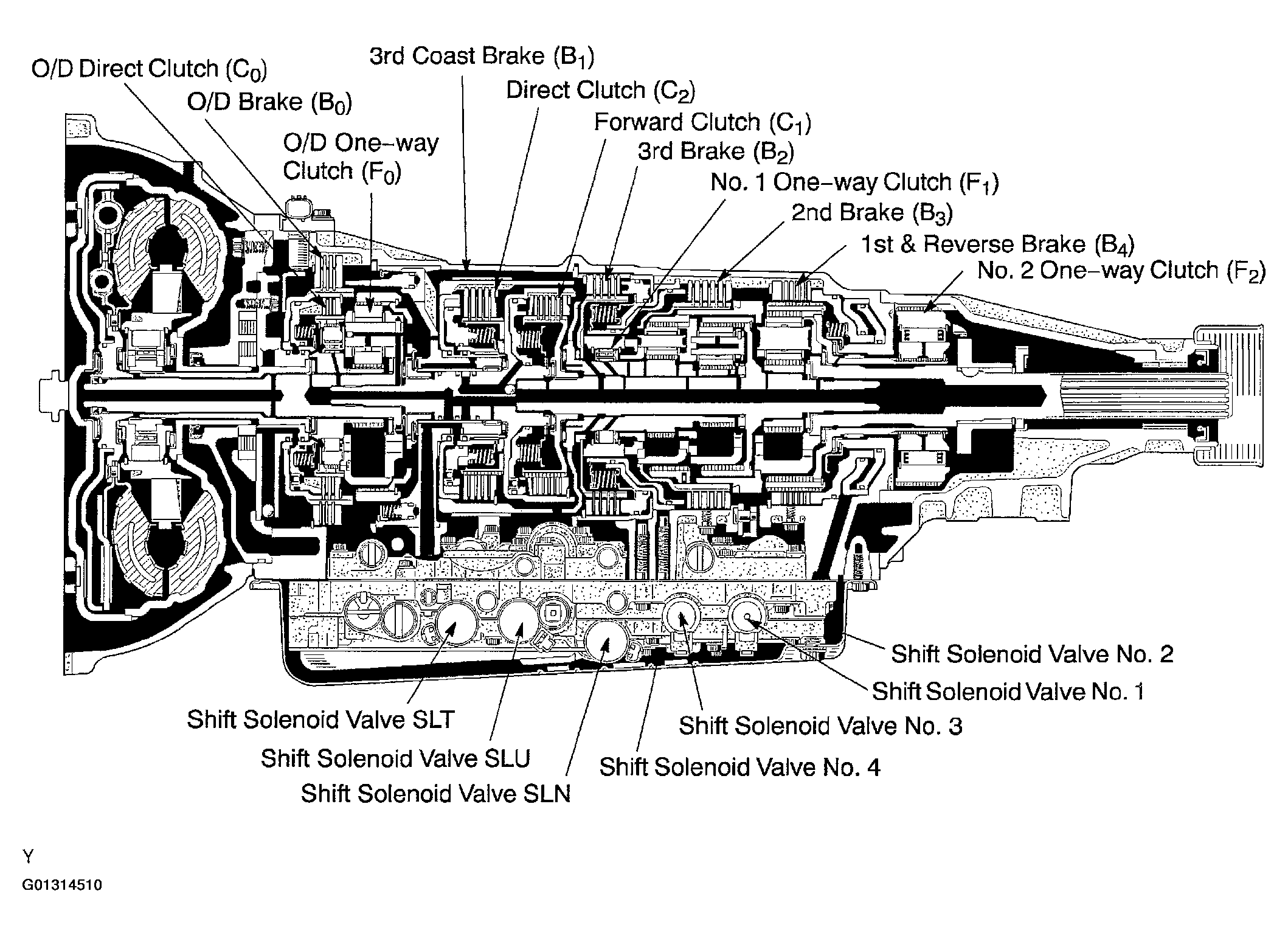

Fig 1: Cross Section View Of Automatic Transmission System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

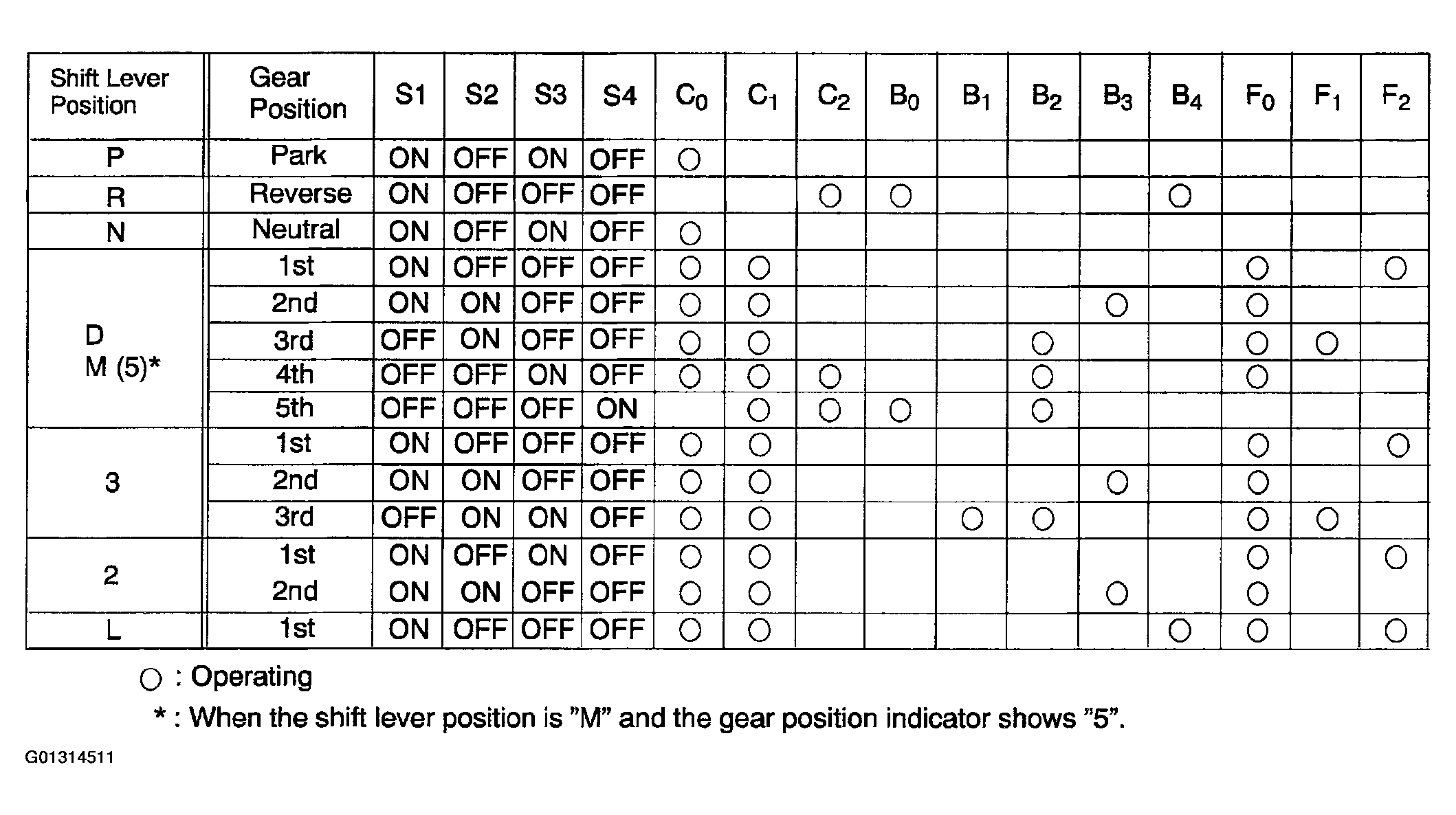

Fig 2: Gear Position Specification

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
