Automatic Transmission Unit (Removal & Installation)
›
Automatic Transmission Unit
›
Components
Automatic Transmission Unit: Components

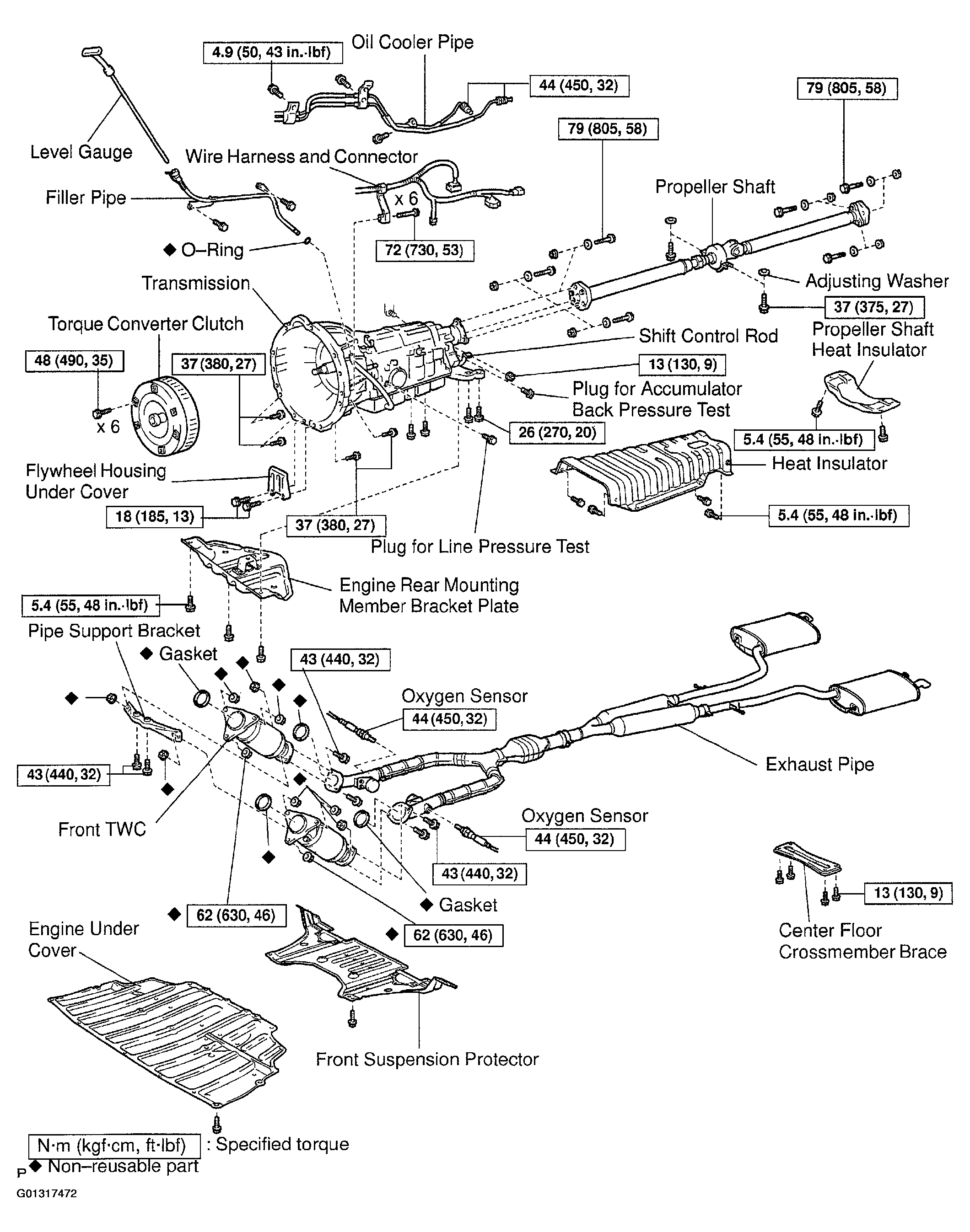

Fig 1: Automatic Transmission Unit Components With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
