Circuit Description

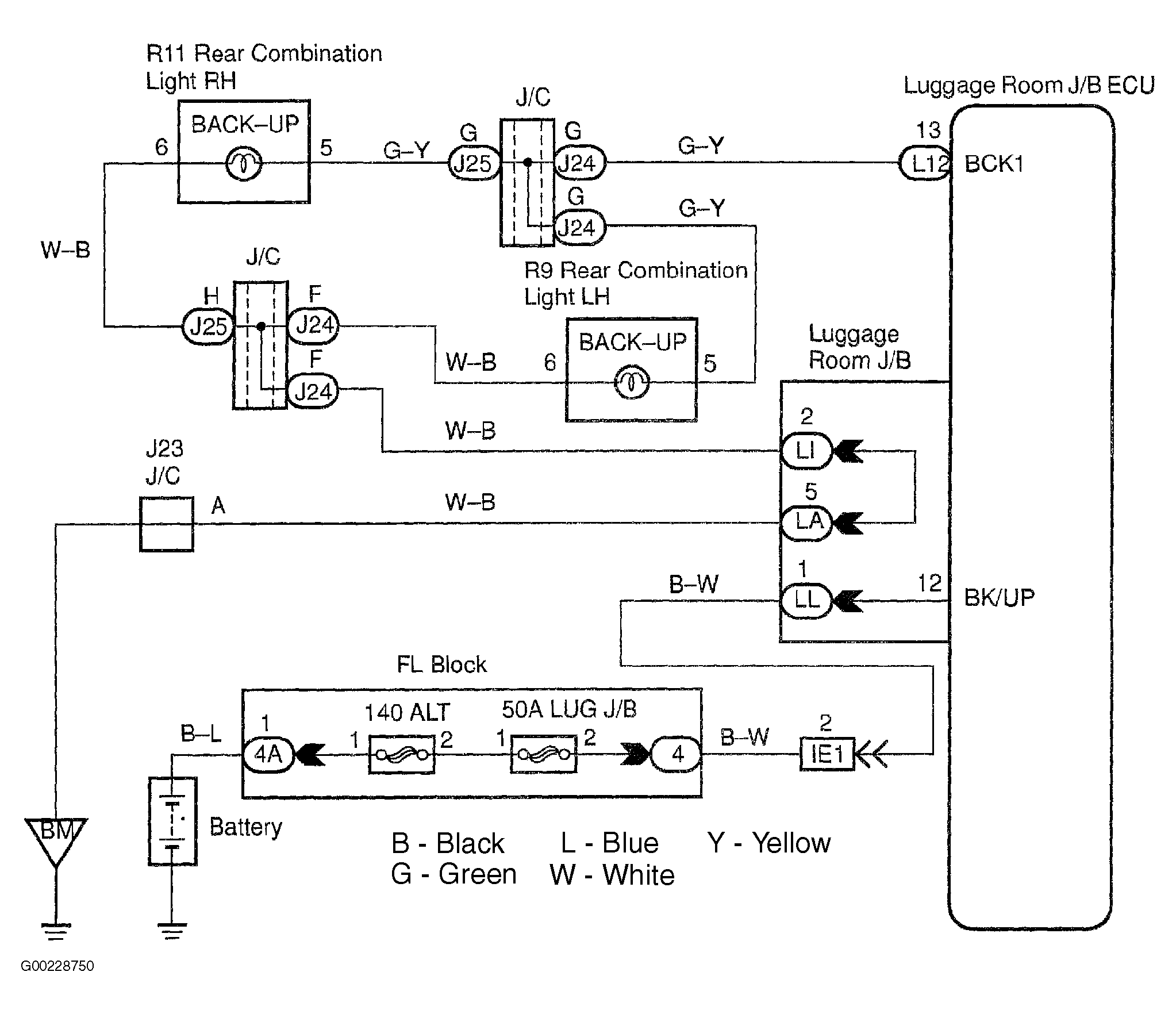

Receiving the PNP switch R position signal from the luggage room junction block (body No. 4) ECU makes the back-up light come on. For circuit diagram, see Fig 1.
Receiving the PNP switch R position signal from the luggage room junction block (body No. 4) ECU makes the back-up light come on. For circuit diagram, see Fig 1.
