Circuit Description

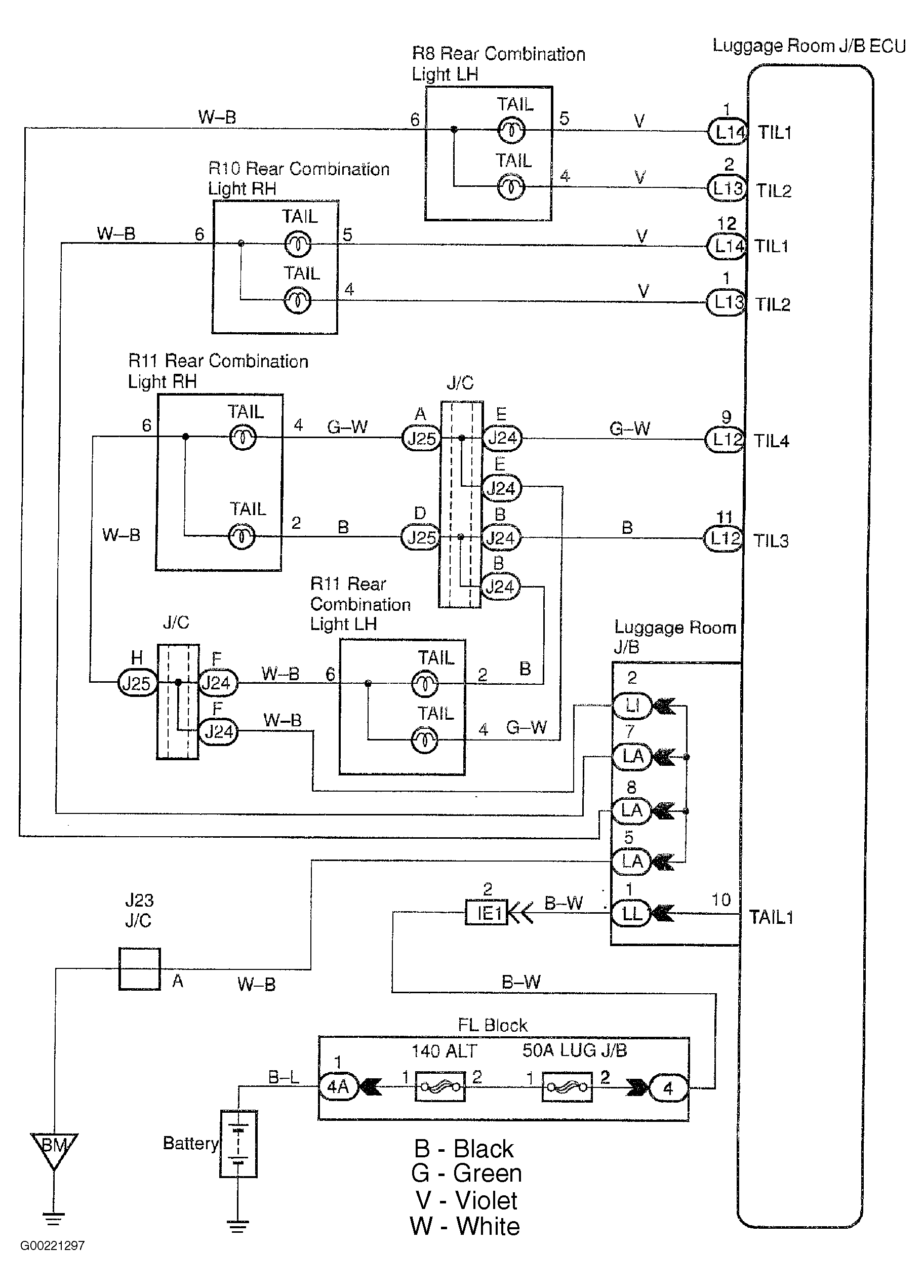

Receiving the light control switch TAIL signal from either of the luggage room junction block (body No. 4) ECU makes the taillight come on. For circuit diagram, see Fig 1.
Receiving the light control switch TAIL signal from either of the luggage room junction block (body No. 4) ECU makes the taillight come on. For circuit diagram, see Fig 1.
