Door Closer System: Inspection

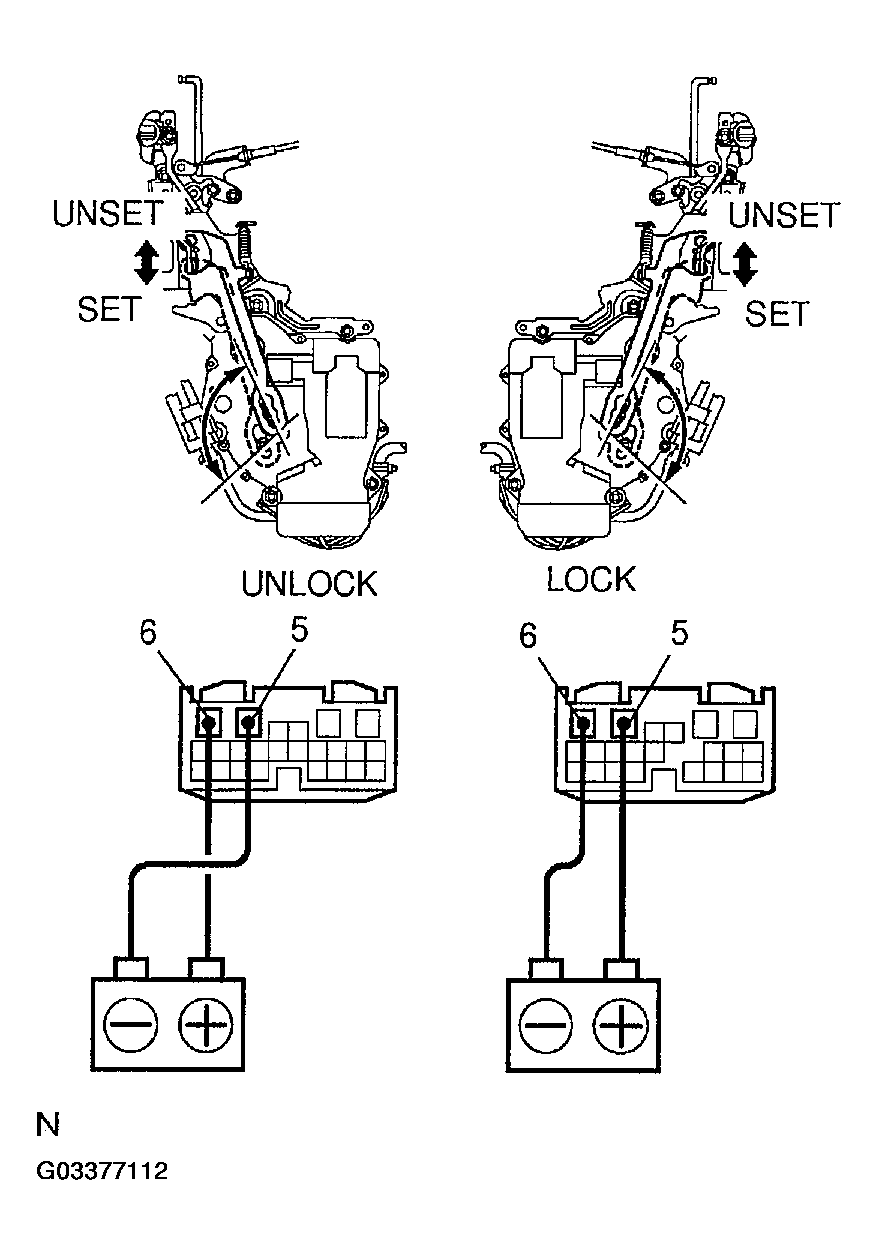

1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock link moves to SET position.
2. Reverse the polarity and check that the door lock link moves to UNSET position.

   If operation is not as specified, replace the door lock assembly.

   Fig 1: Inspecting Front Door Closer Motor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

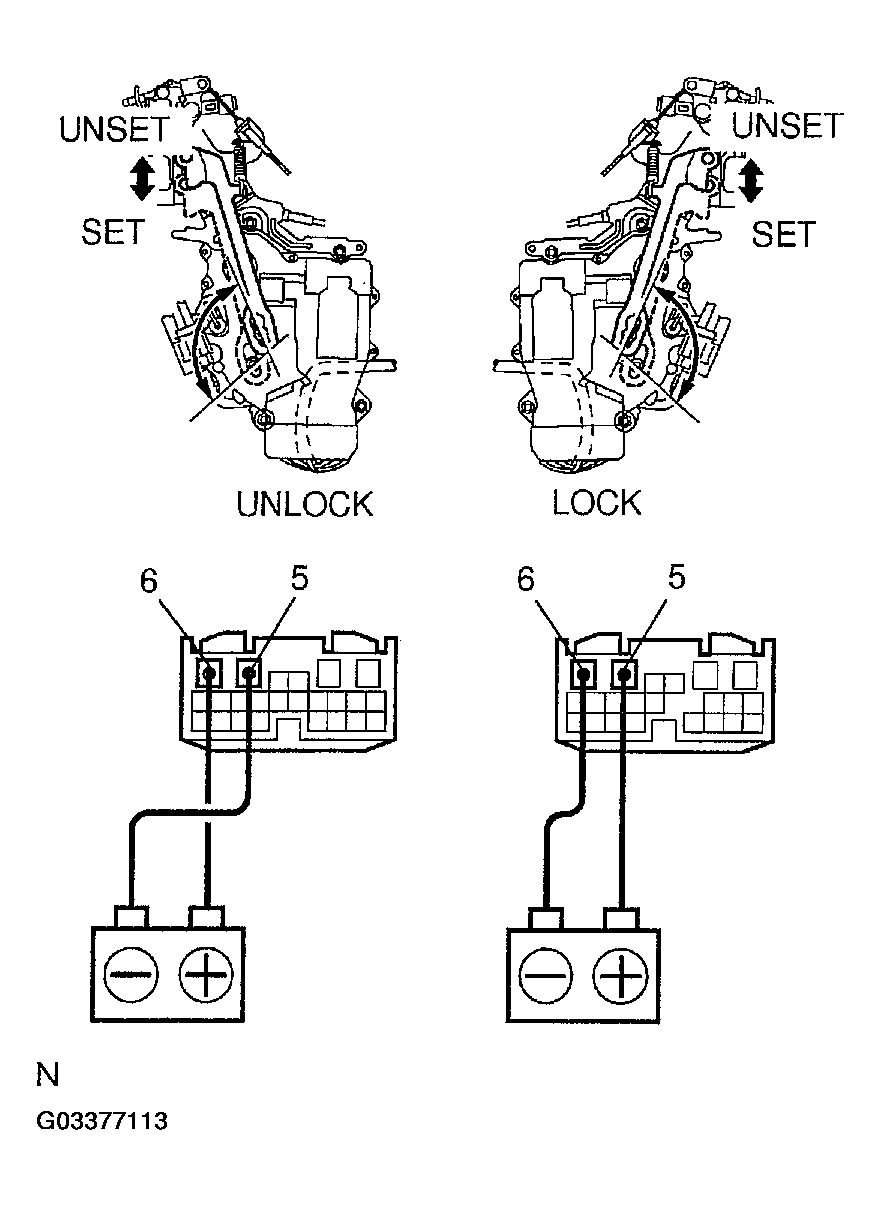

1. Connect the positive (+) lead from the battery to terminal 6 and the negative (-) lead to terminal 5, and check that the door lock link moves to SET position.
2. Reverse the polarity and check that the door lock link moves to UNSET position.

   If operation is not as specified, replace the door lock assembly.

   Fig 2: Inspecting Rear Door Closer Motor Operation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Check that continuity exists between terminals 21 and 24 for latch position, as shown in the illustration below.

Fig 3: Inspecting Door Lock Switch Operation

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the door lock assembly.

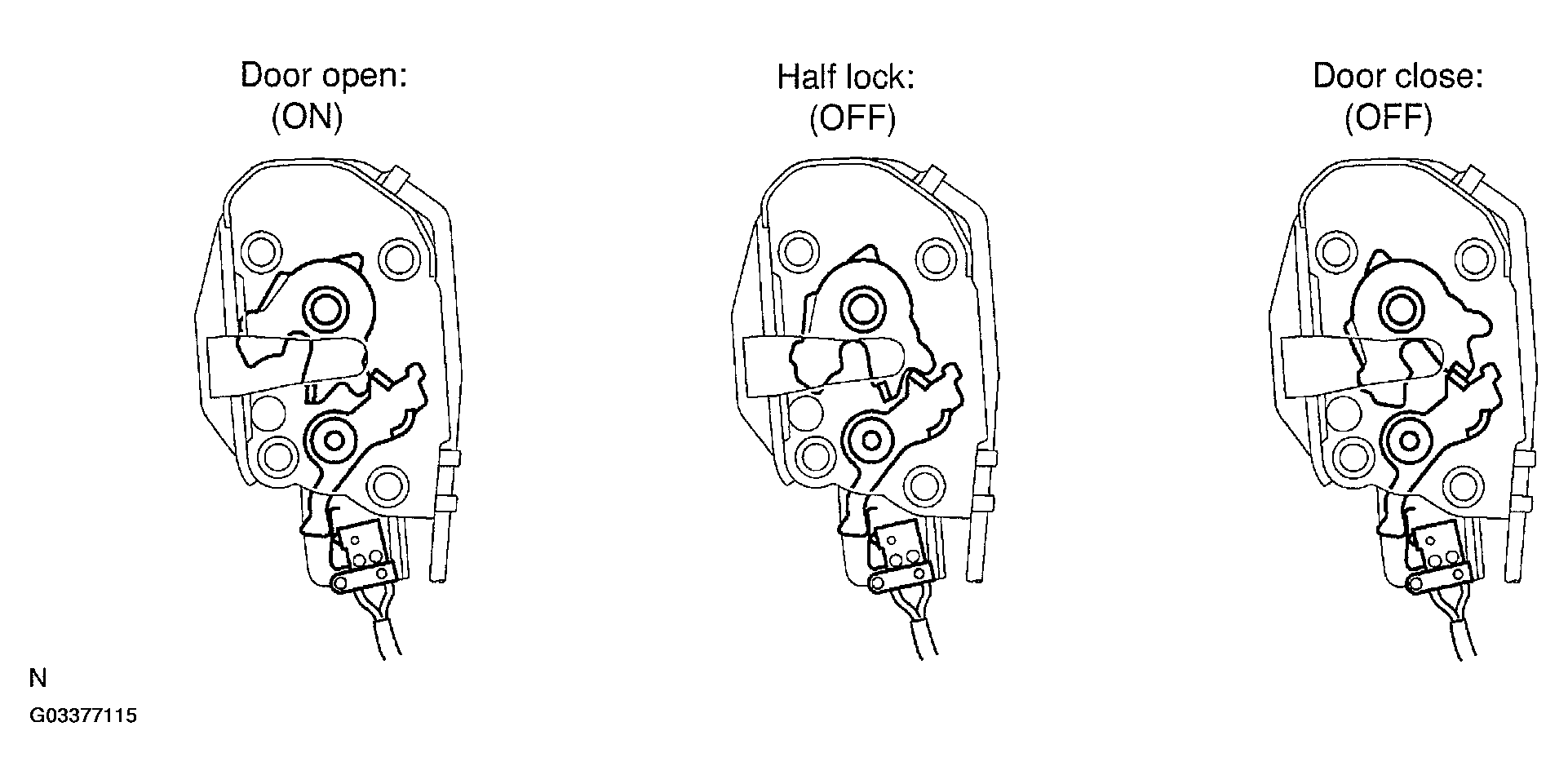

Check that continuity exists between terminals 21 and 15 for latch position, as shown in the illustration below.

Fig 4: Inspecting Door Lock Switch Operation (Full Latch Switch Position)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the door lock assembly.

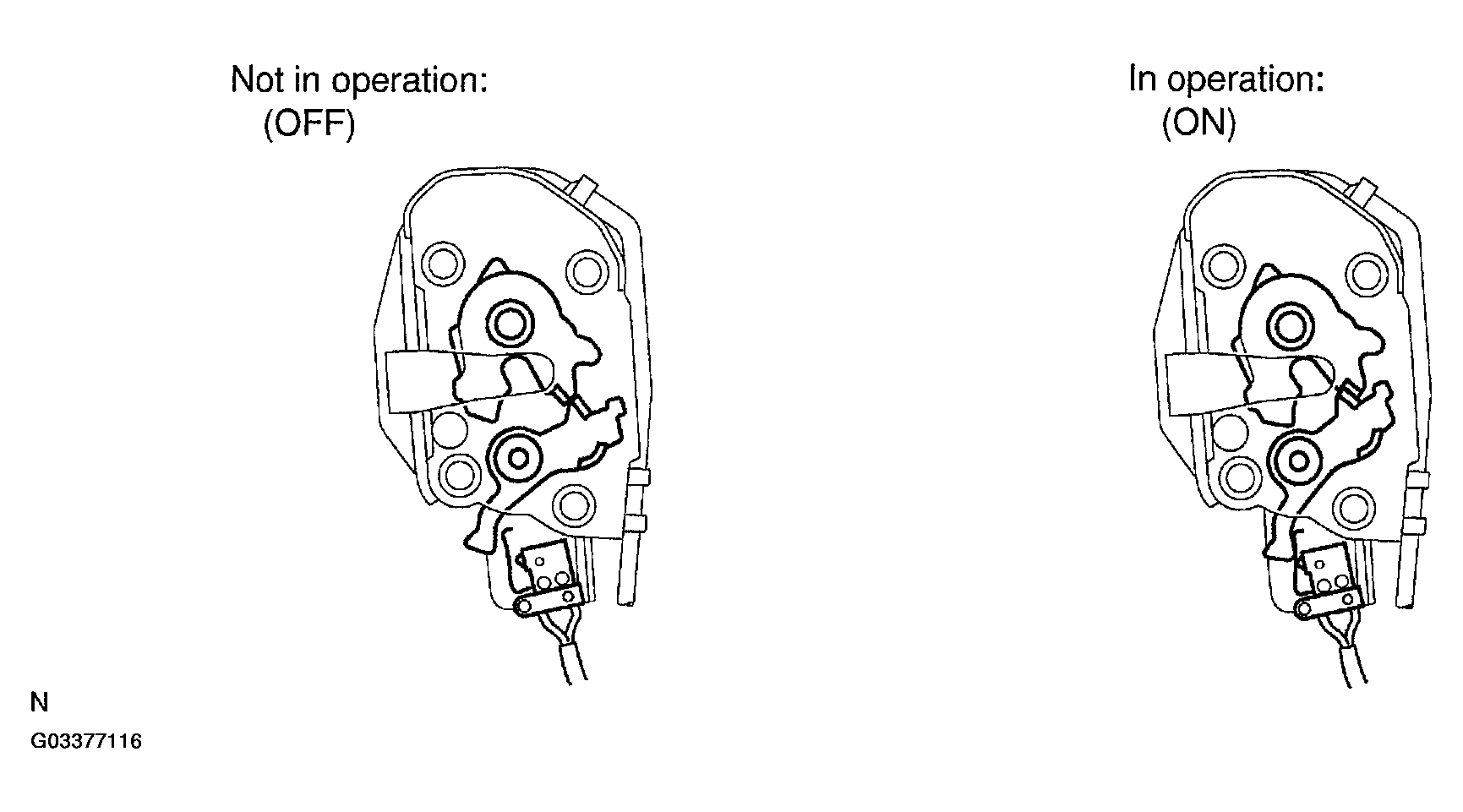

Check that continuity exists between terminals 21 and 23 for each position, as shown in the illustration below.

Fig 5: Inspecting Door Lock Switch Operation (Pawl Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If operation is not as specified, replace the door lock assembly.
