Front Bumper: Components

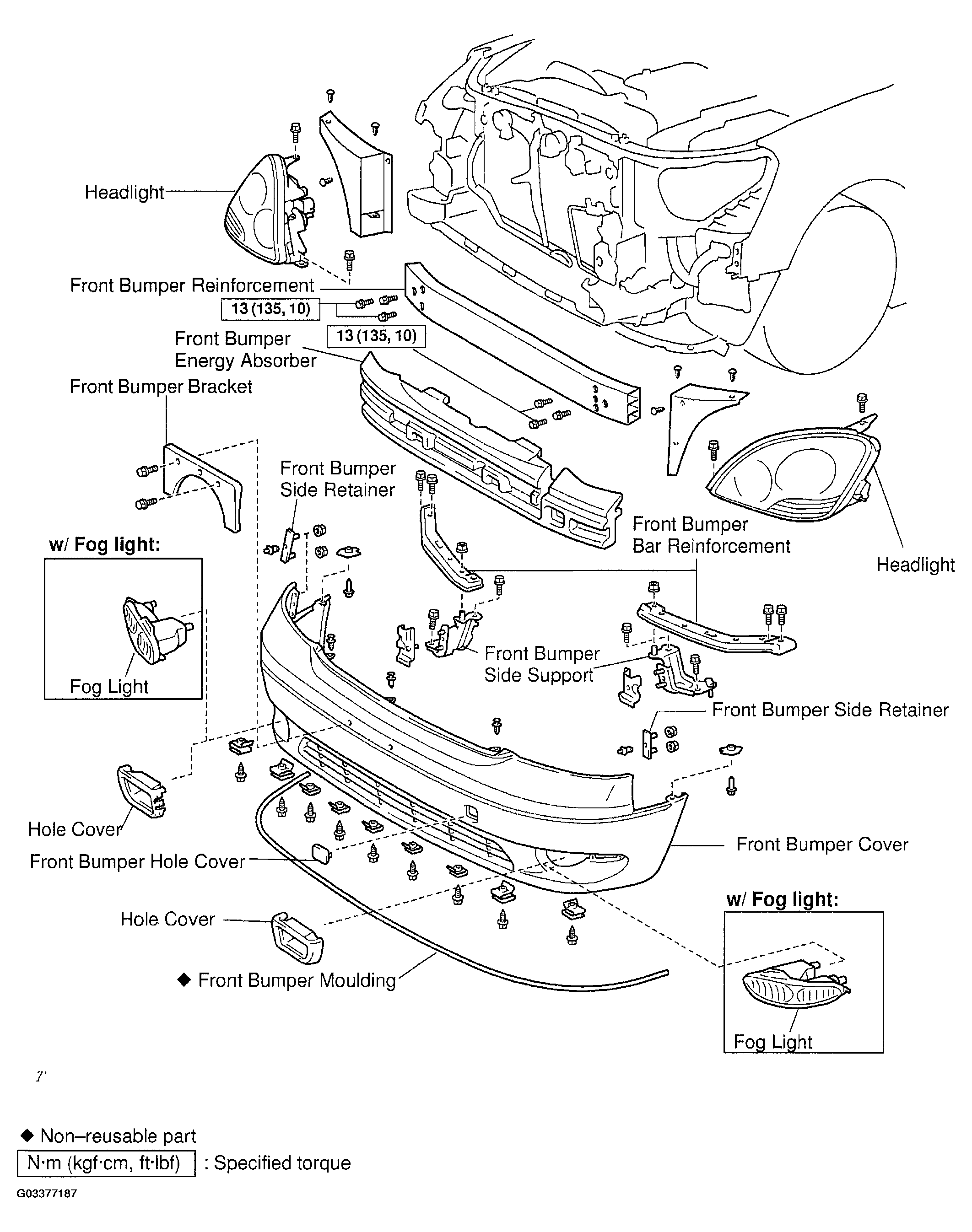

Fig 1: Identifying Front Bumper Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

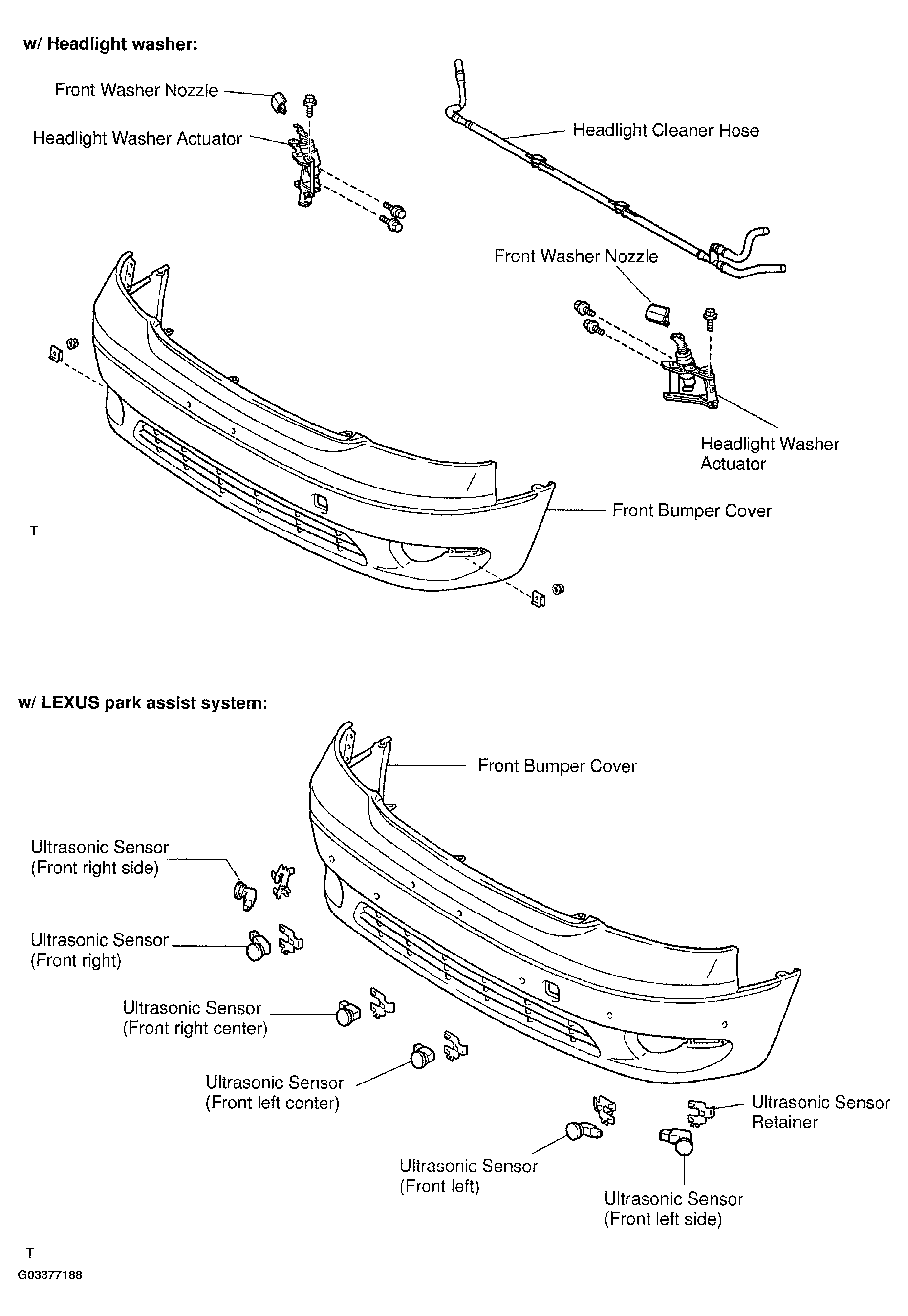

Fig 2: Identifying Front Bumper Components (W/Headlight Washer And W/LEXUS Park Assist System)
