Hood Lock Control: Components

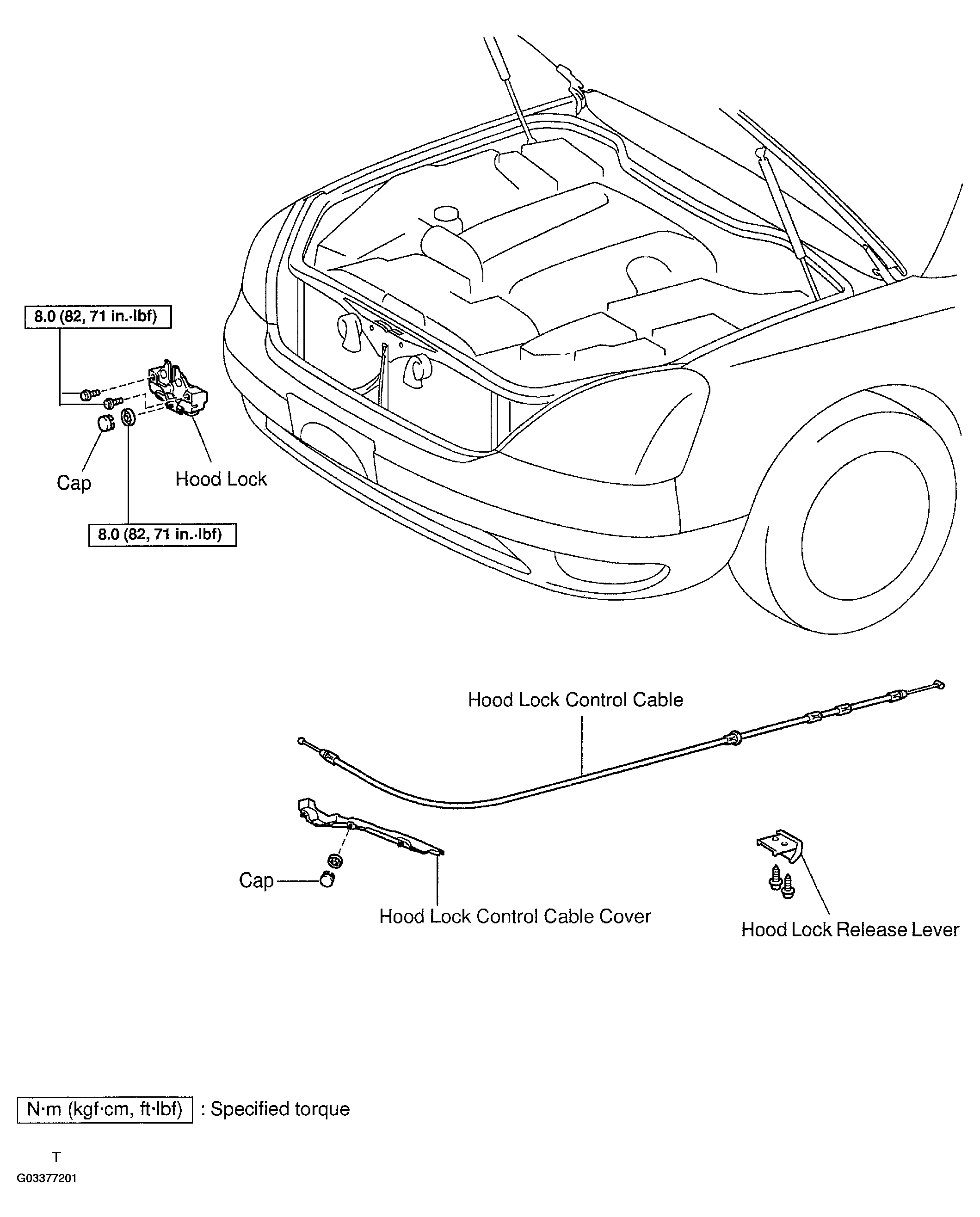

Fig 1: Identifying Hood Lock Control Components
G03377201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
