Exterior/Interior Trim: Hood: Adjustment

HINT:

Since the centering bolt is used as a hood hinge and hood lock set bolt, the hood and hood lock cannot be adjusted with it on. Substitute the bolt with a washer for the centering bolt.

Fig 1: Identifying Centering And Standard Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. ADJUST HOOD IN FORWARD/REARWARD

   Adjust the hood by loosening the hood side hinge bolts.

   Torque: 13 N.m (135 kgf.cm, 10 ft.lbf)

2. ADJUST HOOD IN VERTICAL DIRECTIONS
   1. Remove the bolts and increase or decrease the number of washers between the hinge and hood.
   2. Install the bolts again.

      Torque: 13 N.m (135 kgf.cm, 10 ft.lbf)

      Fig 2: Adjusting Hood

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. ADJUST FRONT EDGE OF HOOD IN VERTICAL DIRECTION

   Adjust the hood by turning the cushions.

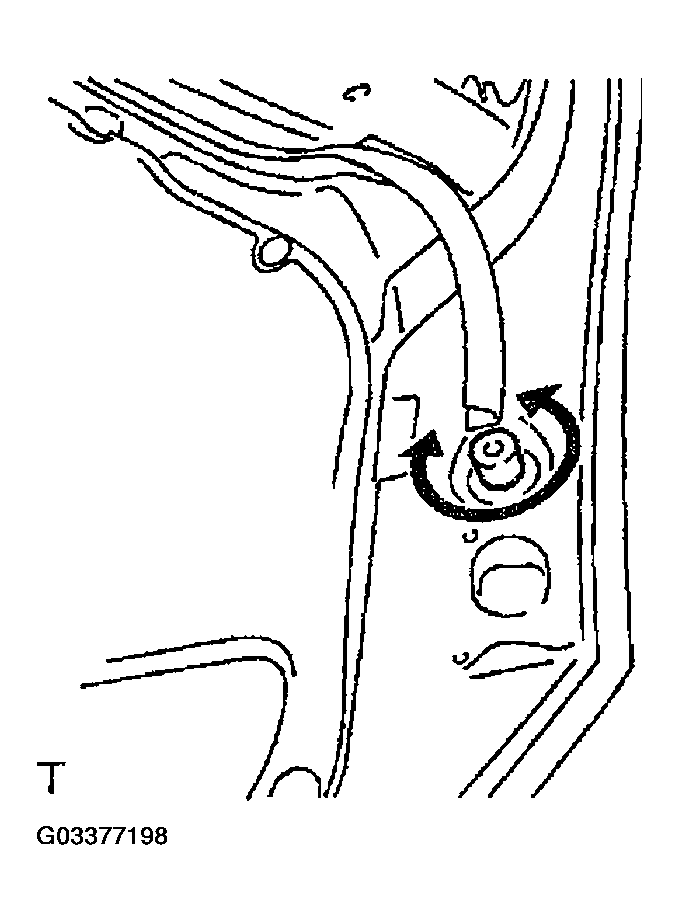

   Fig 3: Adjusting Hood By Turning Cushions

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. ADJUST HOOD LOCK
   1. Using a screwdriver, remove the cap.

      HINT:

      Tape the screwdriver tip before use.

   2. Adjust the hood lock by loosening the 2 bolts and nut.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

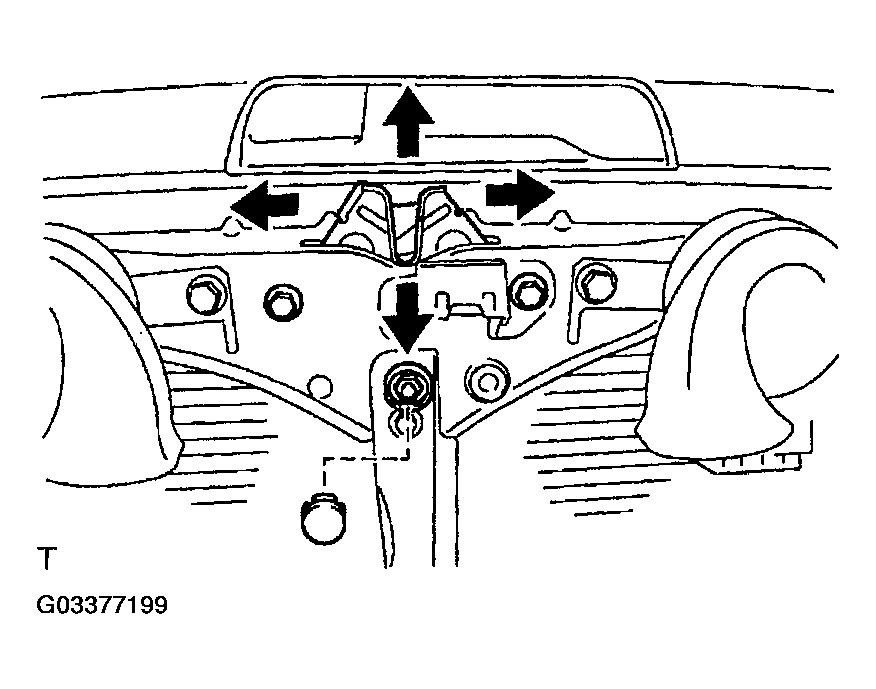

      Fig 4: Adjusting Hood Lock

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
