Exterior/Interior Trim: Hood: Components

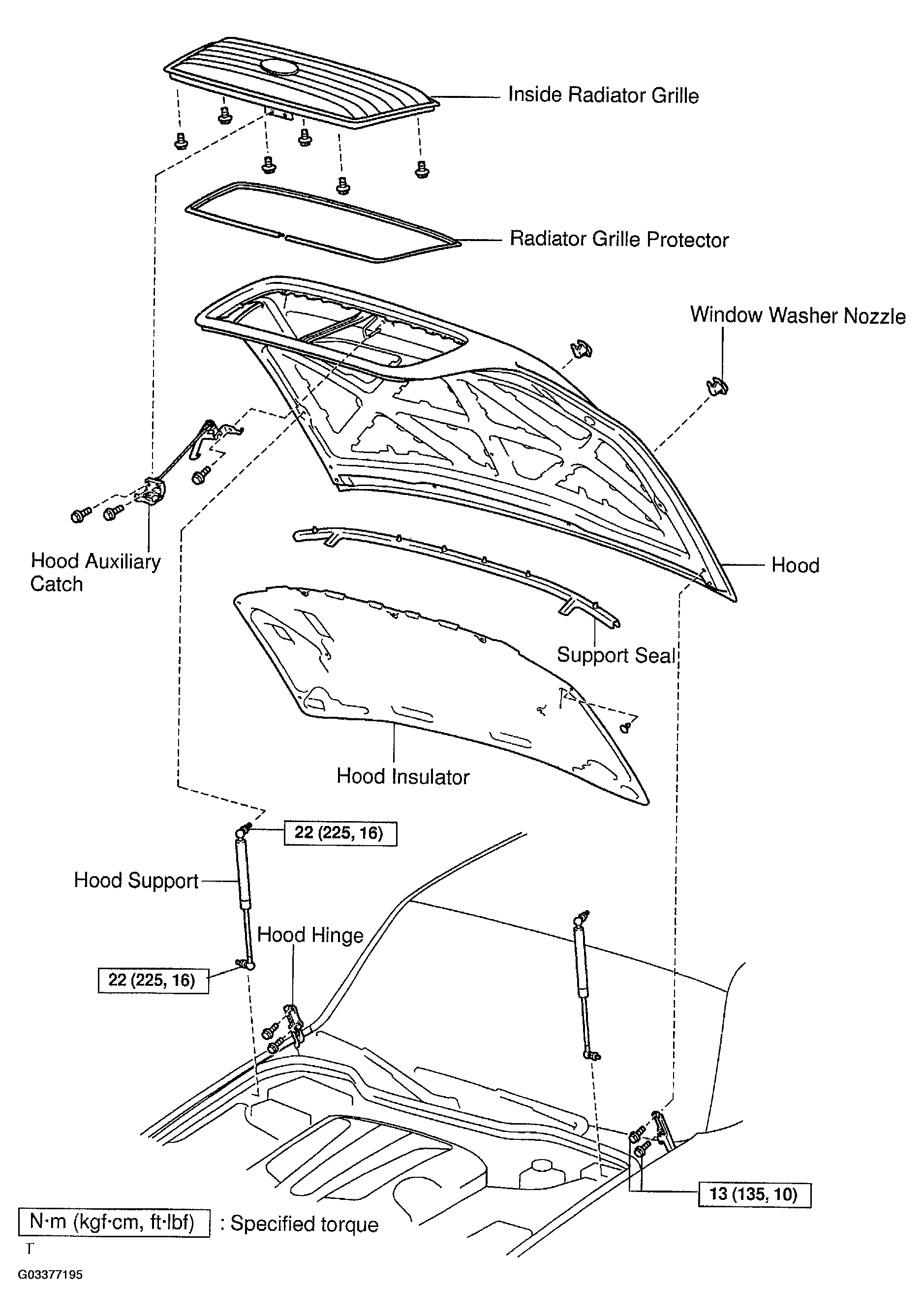

Fig 1: Identifying Hood Components

G03377195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
