Outside Rear View Mirror: Components

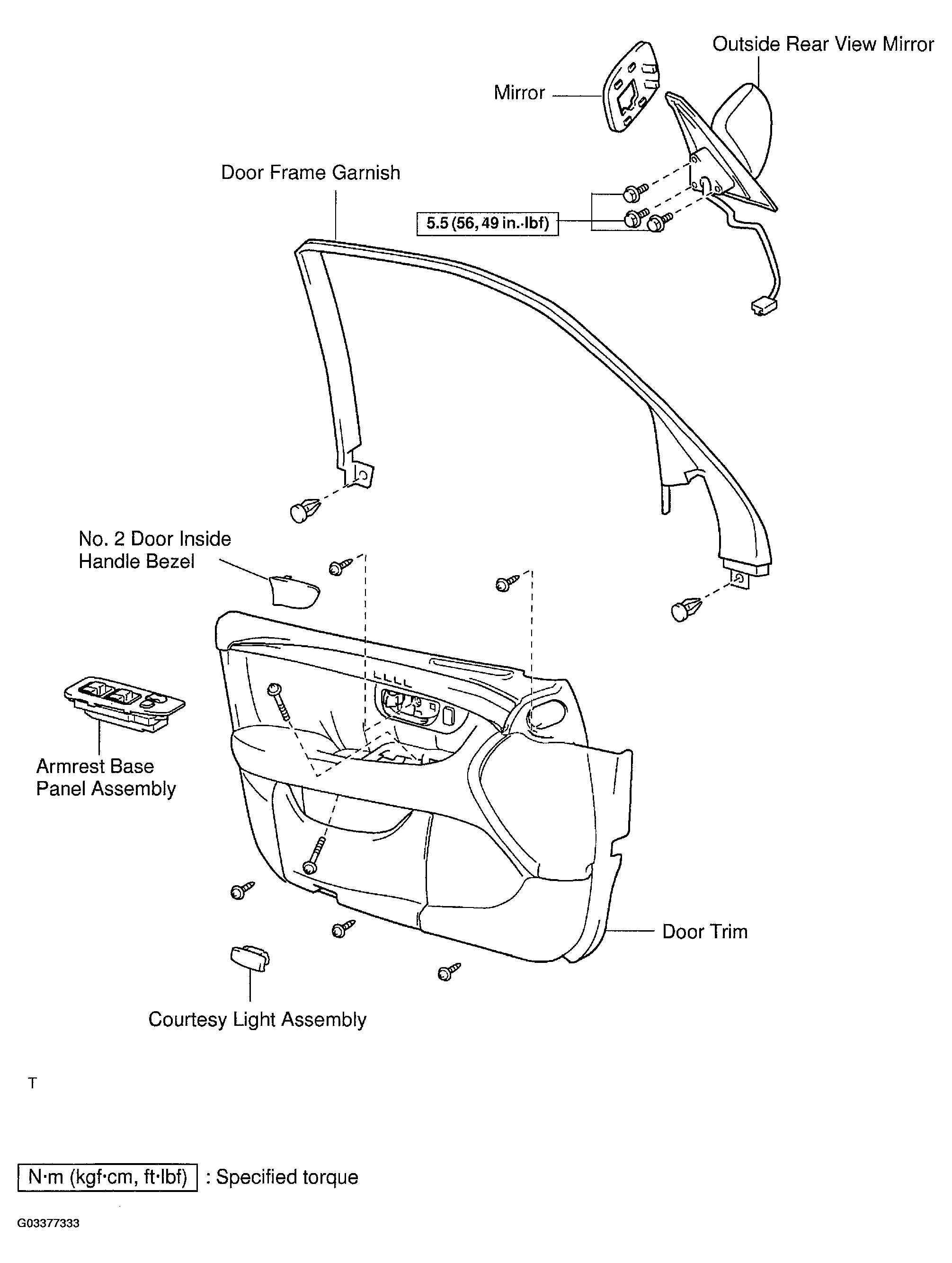

Fig 1: Identifying Outside Rear View Mirror Components

G03377333

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
