Power Mirror Control System: Location

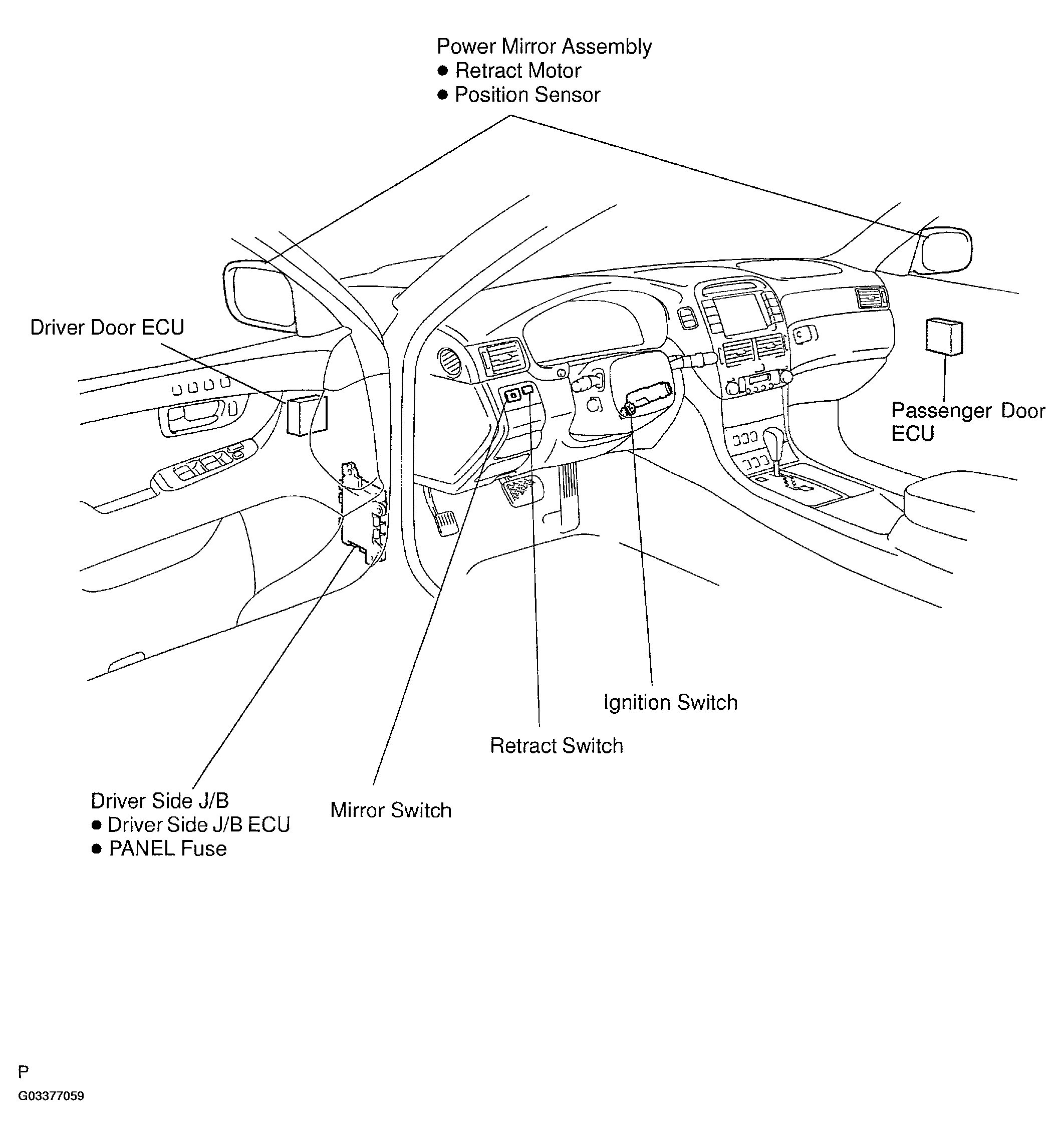

Fig 1: Locating Power Mirror Control System Components
G03377059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
