Power Seat Control System: Location

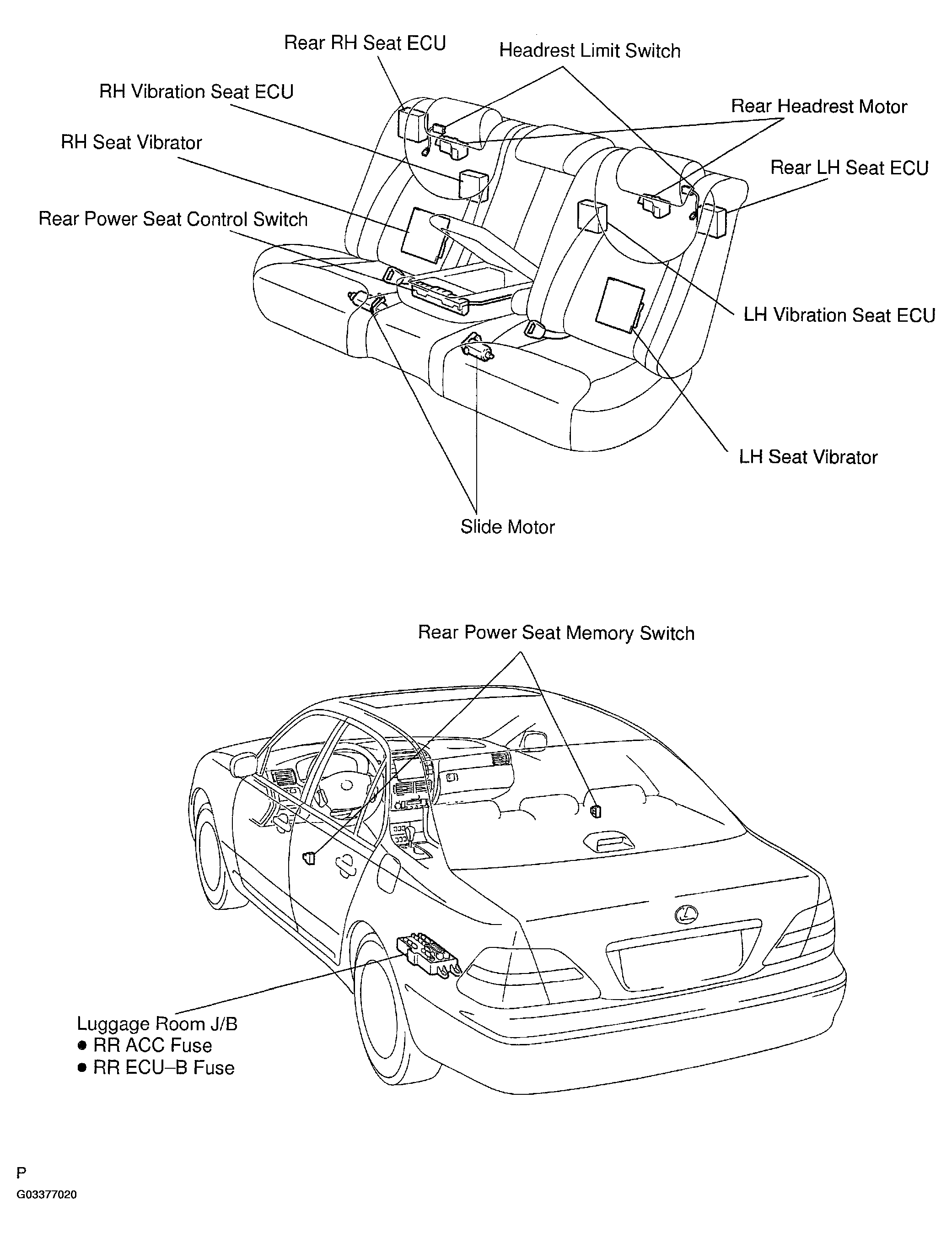

Fig 1: Locating Power Seat Control System Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

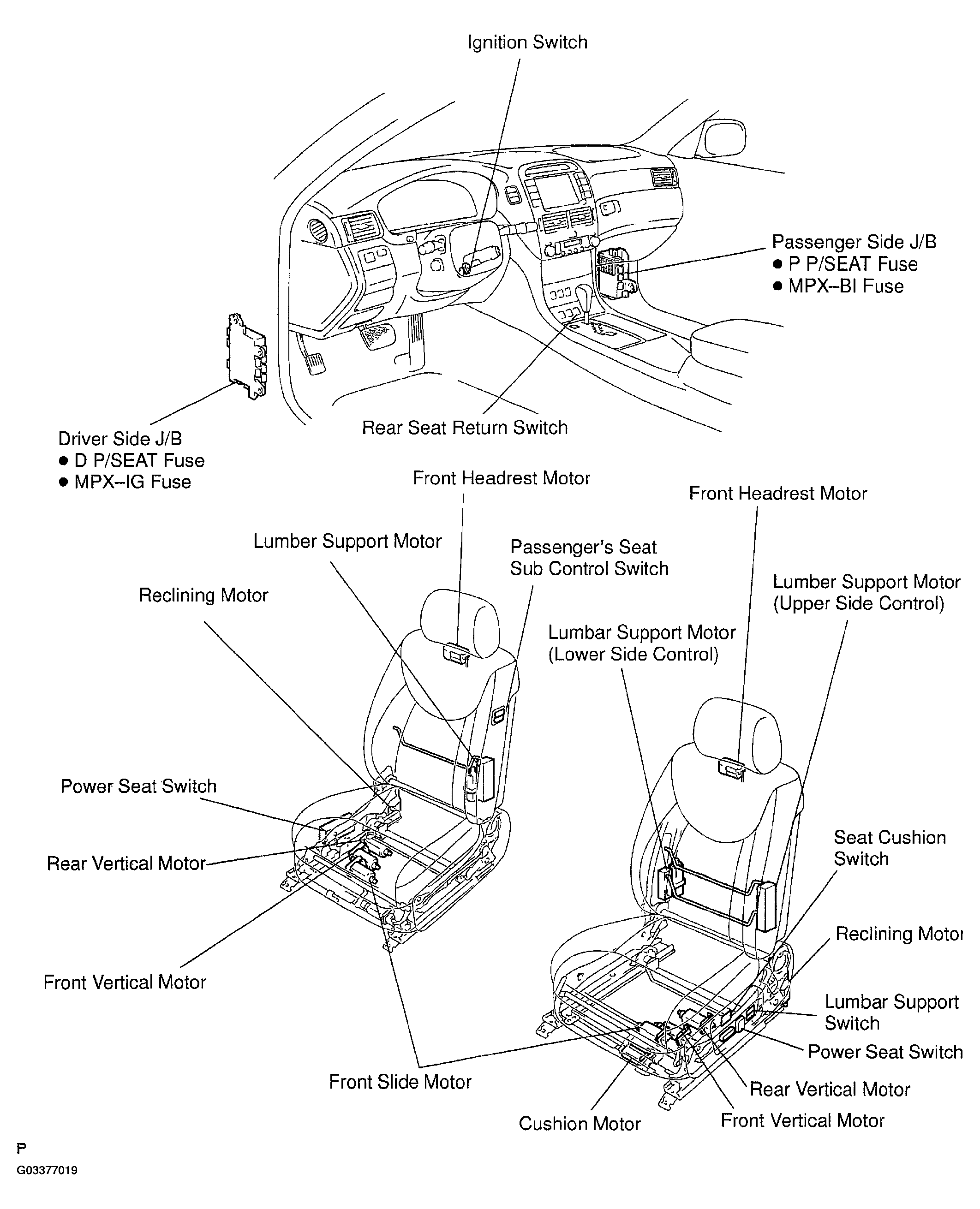

Fig 2: Locating Power Seat Control System Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
