Testing Procedure

For wiring diagram see Fig 1. For testing procedure see Fig 2 and Fig 3 .

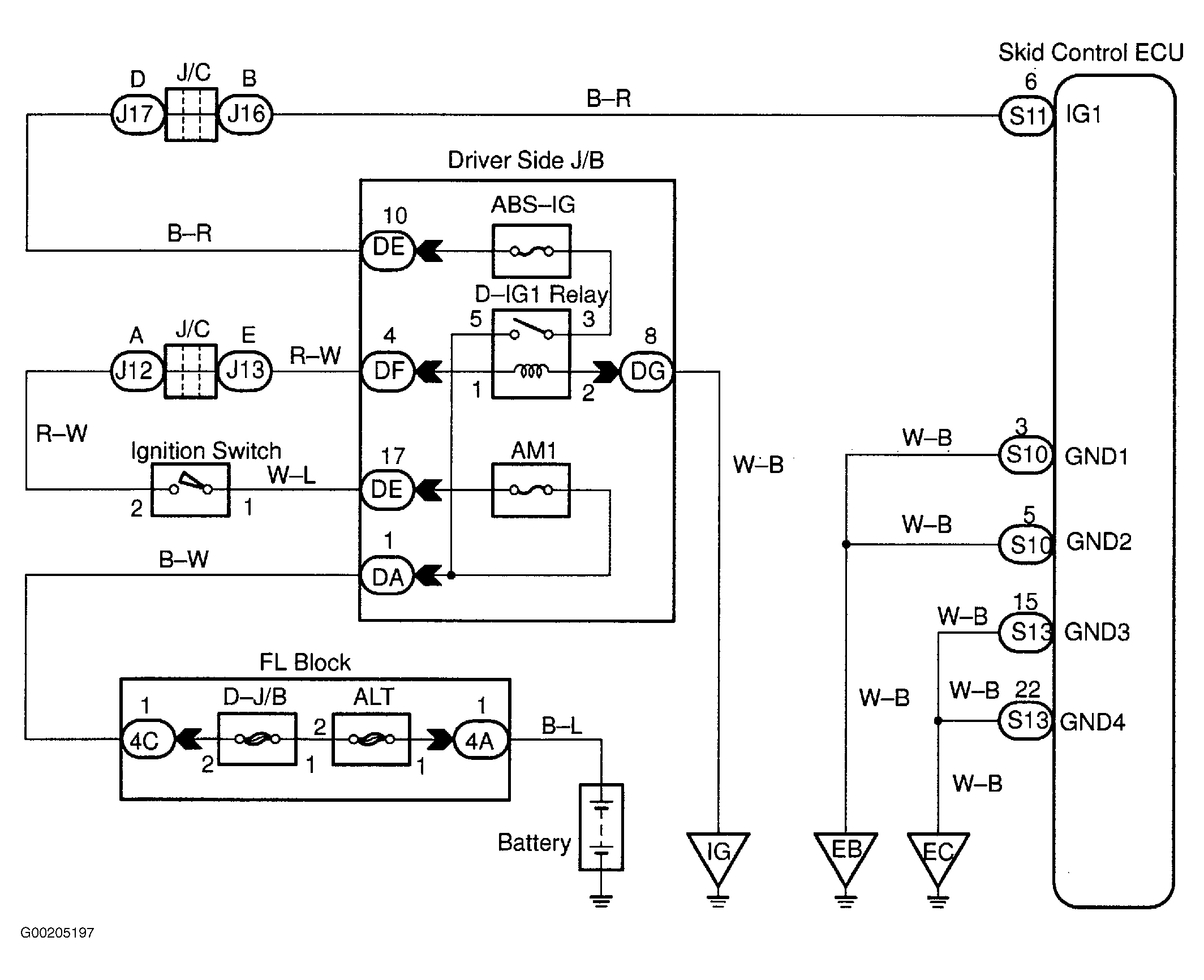

Fig 1: IG Power Source Circuit Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

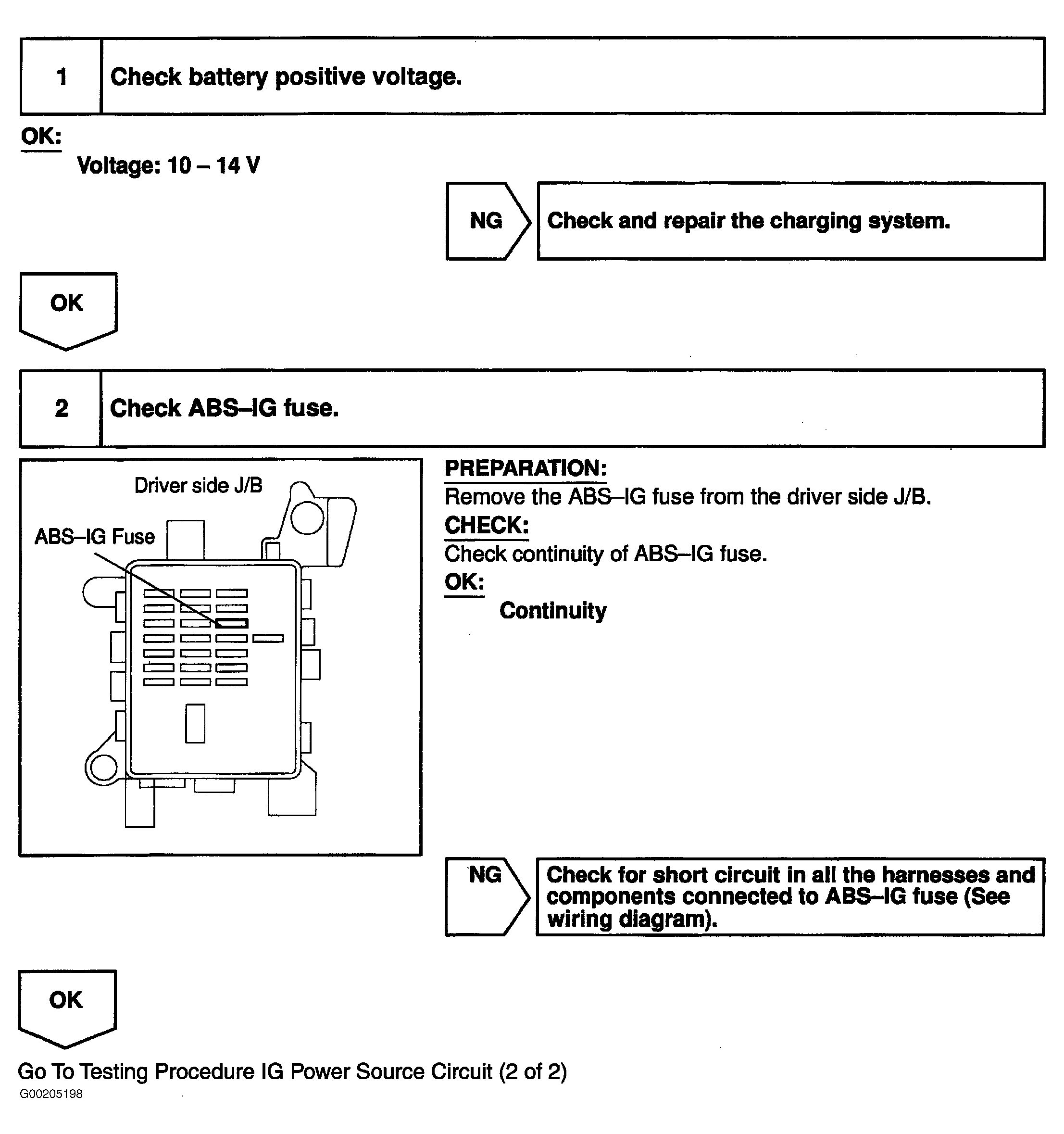

Fig 2: Testing Procedure IG Power Source Circuit (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

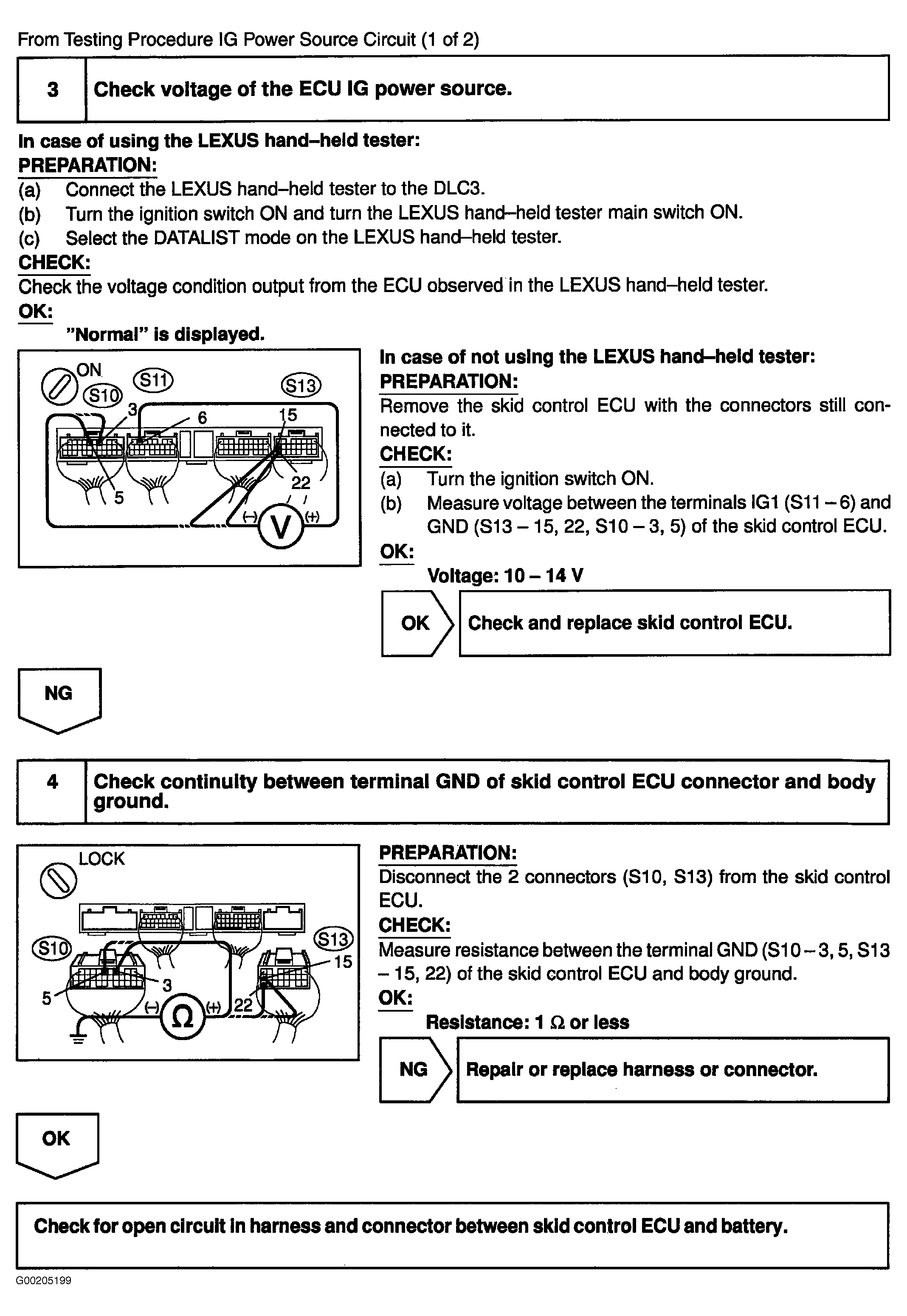

Fig 3: Testing Procedure IG Power Source Circuit (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
