Overhead Junction Block: Circuit

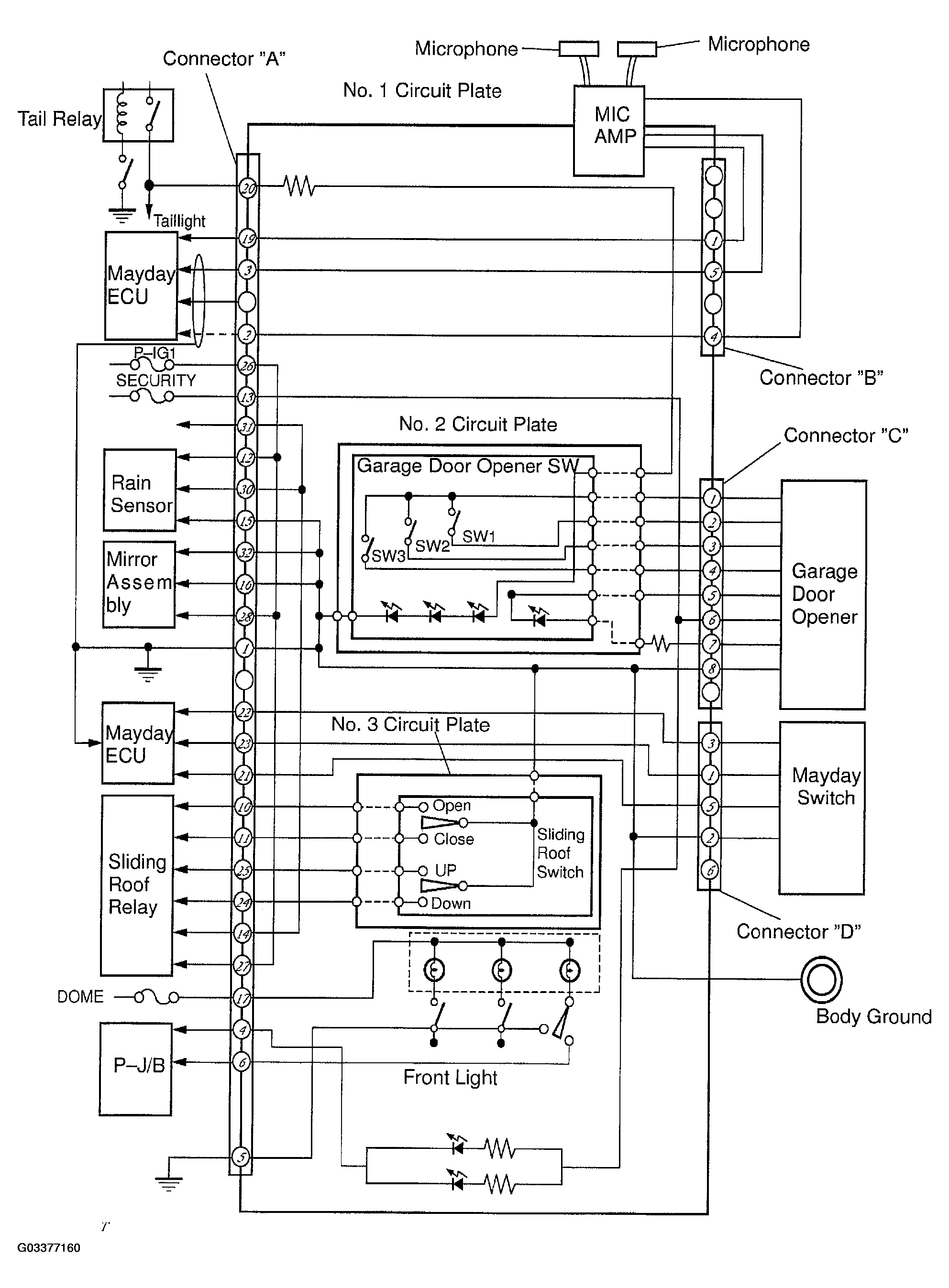

Fig 1: Identifying Overhead Junction Block Circuit Diagram
G03377160Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
