How To Proceed With Troubleshooting

HINT:

The ECU of this system is connected to the multiplex communication system. Therefore, before starting troubleshooting, be sure to check that there is no trouble in the multiplex communication system.

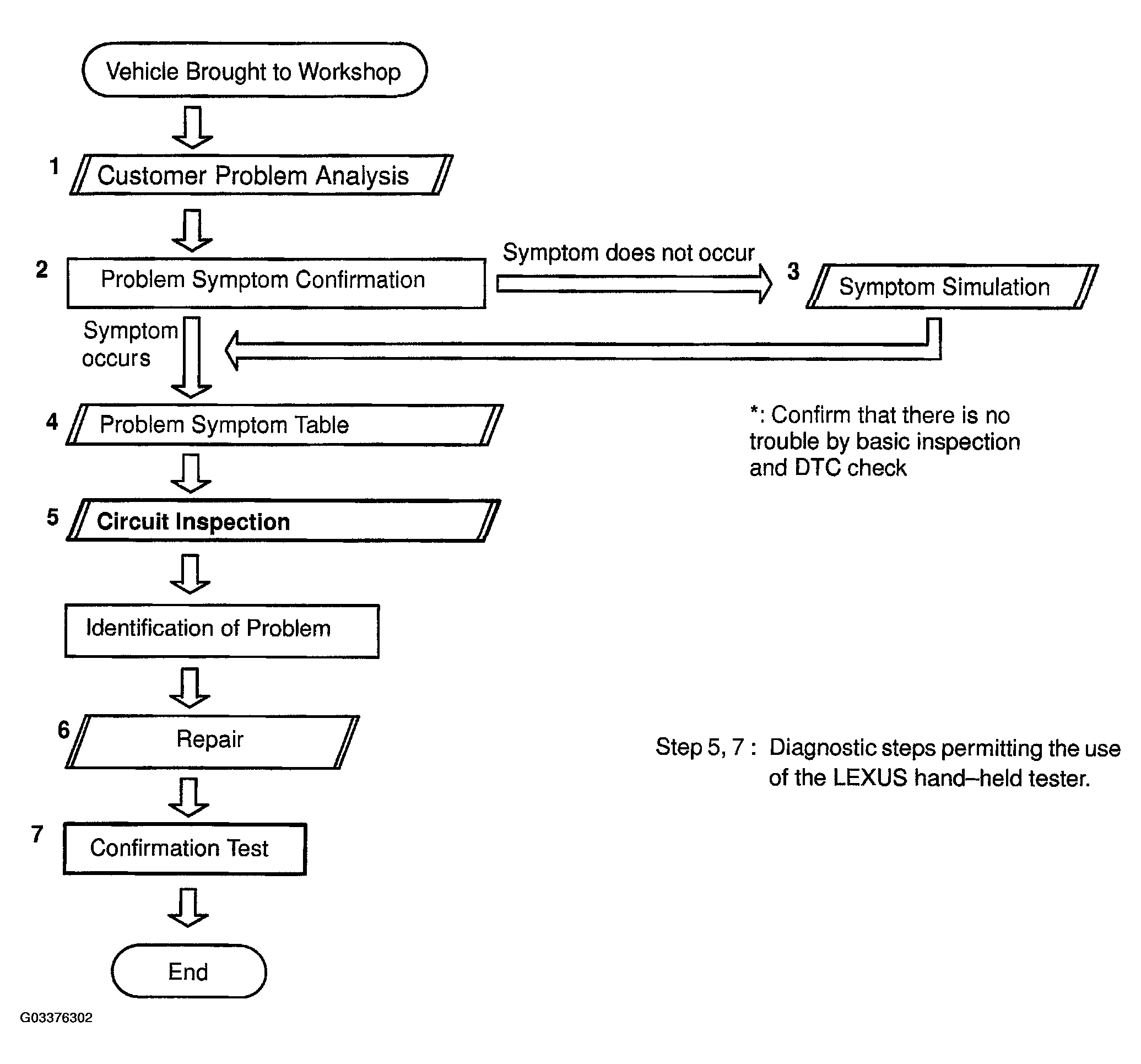

Fig 1: Combination Meter System Flow Chart
