Combination Meter: Location

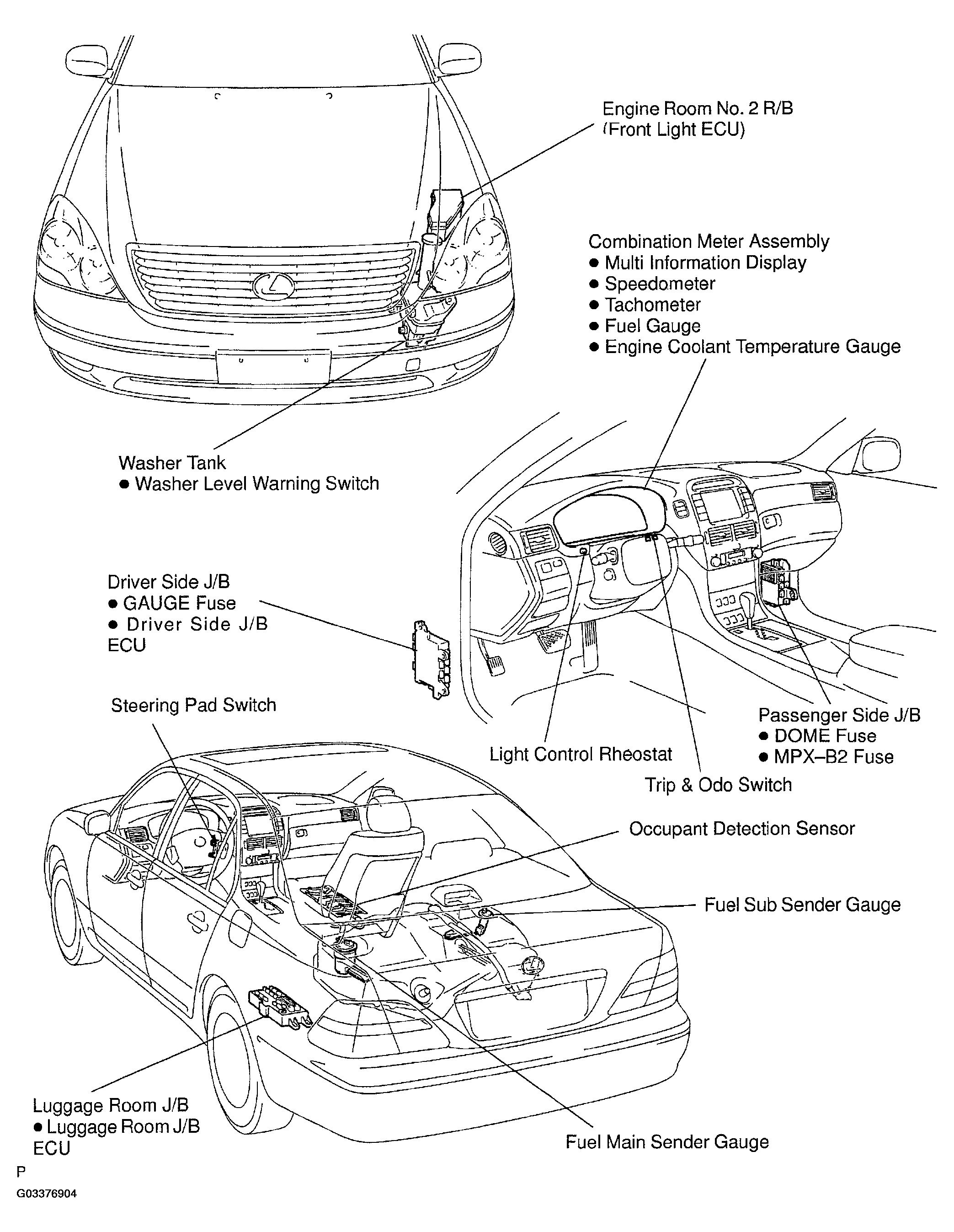

Fig 1: Locating Combination Meter Components

G03376904

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
