Horn System: Location

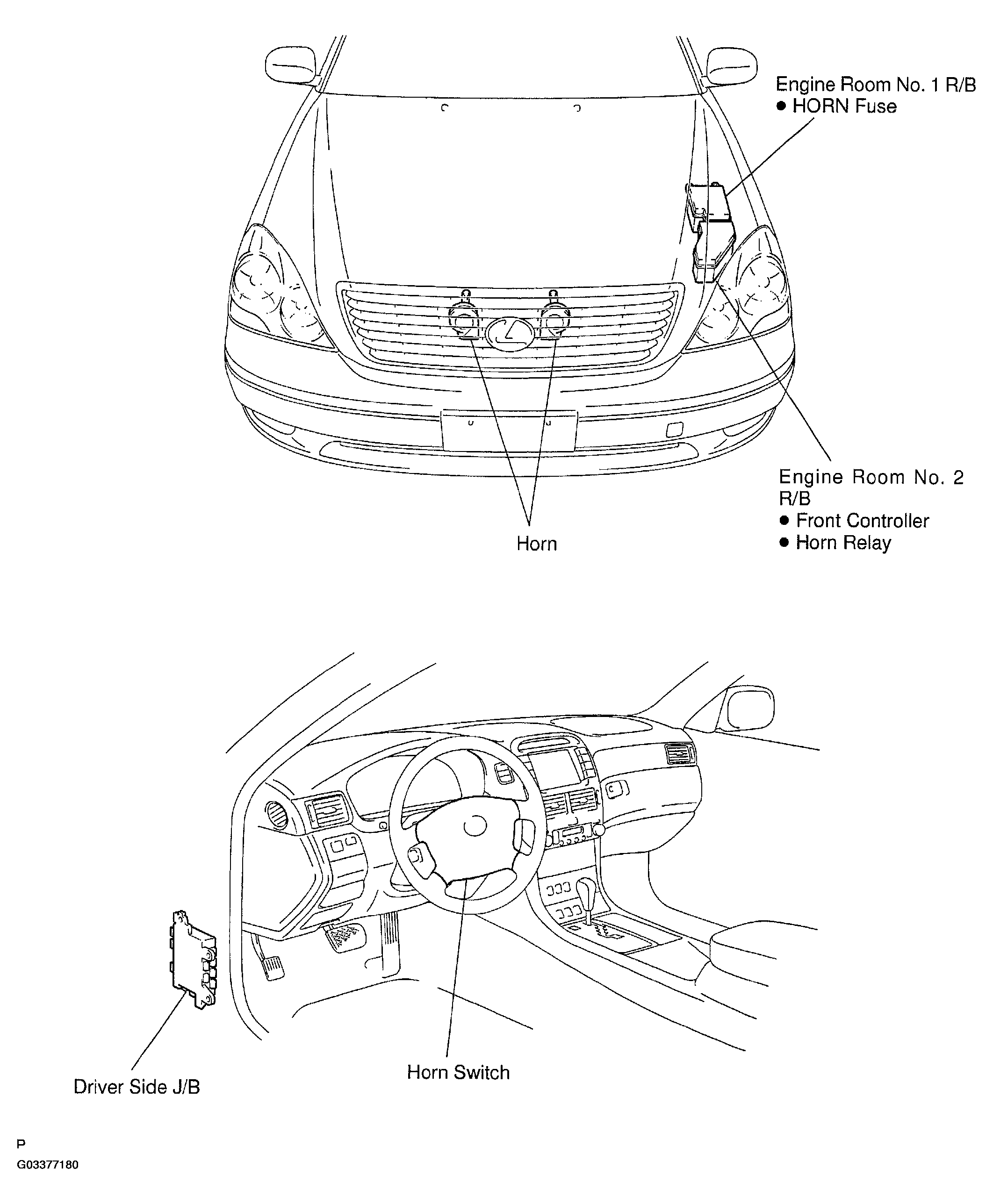

Fig 1: Locating Horn System Components
G03377180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
