Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

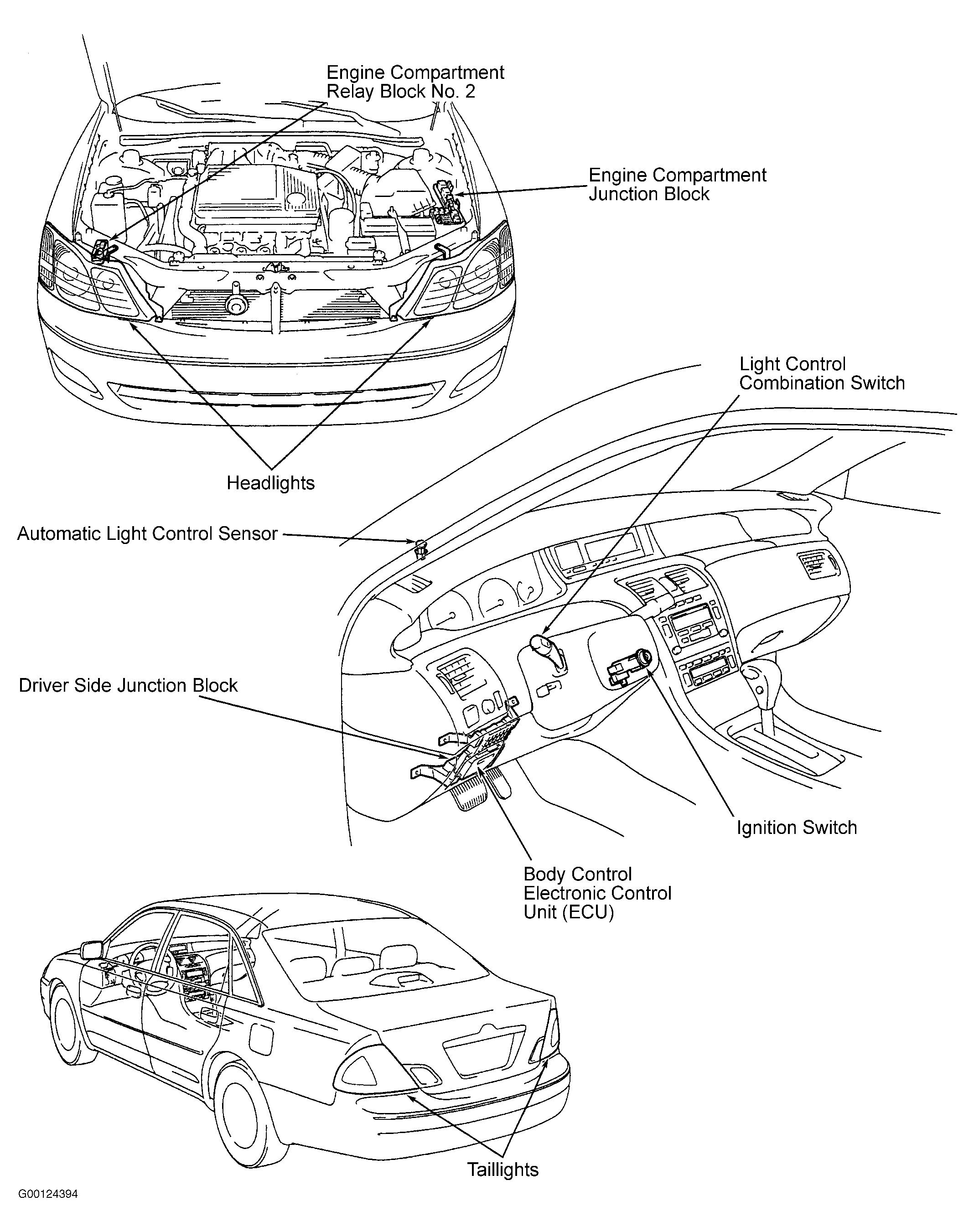

For automatic light control system and automatic headlights off delay system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Automatic Light Control Sensor | On Top Left Side Of Instrument Panel |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Engine Compartment Junction Block | Left Side Of Engine Compartment, In Front Of Shock Tower |
| Engine Compartment Relay Block No. 2 | Right Front Corner Of Engine Compartment, Behind Inner Headlight Assembly |
| Ignition Switch | Right Side Of Steering Column |
| Light Control Combination Switch | Left Side Of Steering Column |
