Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

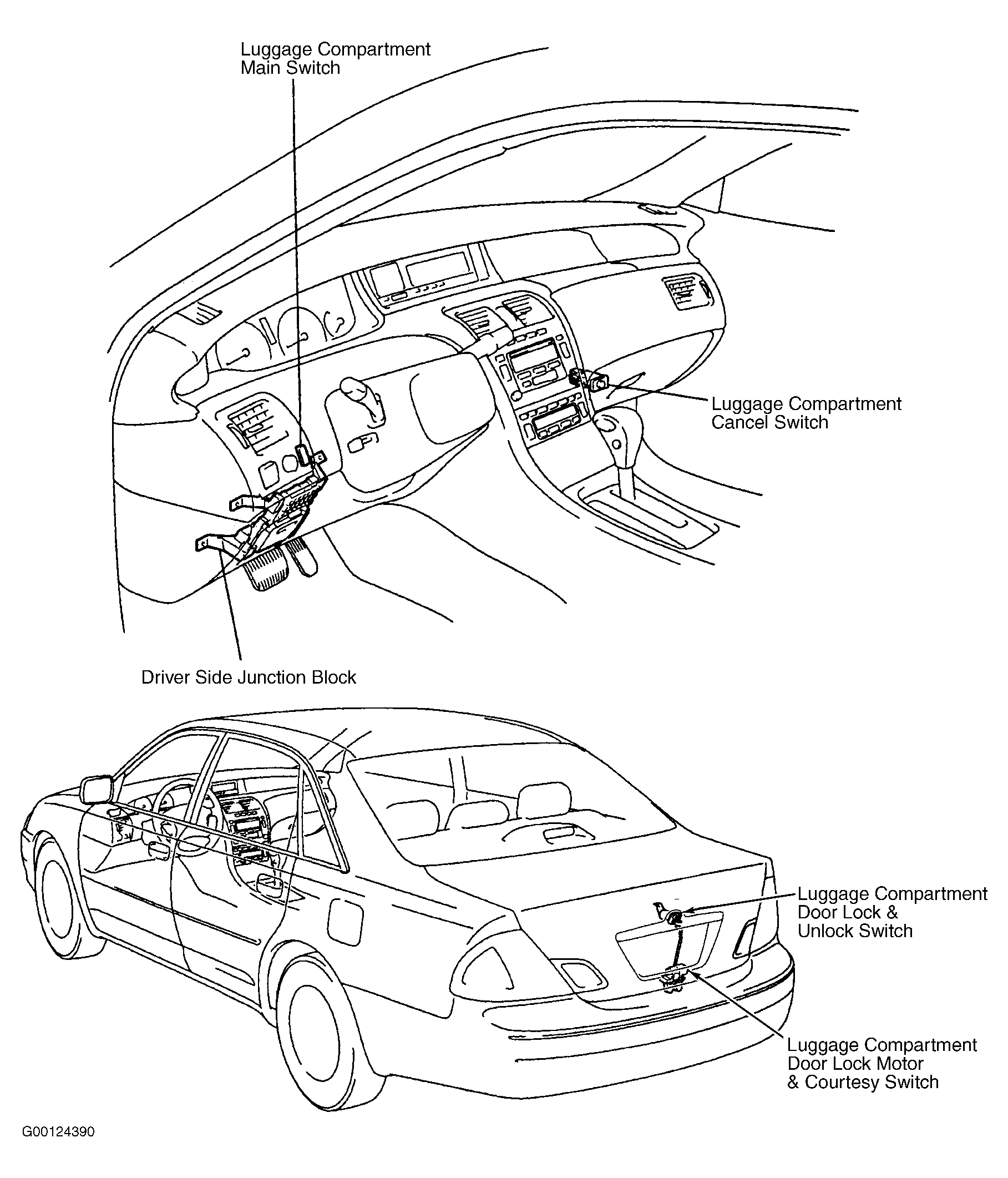

Use illustration for component locations. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Luggage Compartment Cancel Switch | Inside Glove Compartment |
| Luggage Compartment Main Switch | Incorporated Into Heating & Ventilation Register On Left Side Of Instrument Panel |
| Luggage Compartment Door Lock Motor & Courtesy Switch | Inside Center Of Luggage Compartment Door |
| Luggage Compartment Door Lock & Unlock Switch | Integral With Lock Cylinder |
