Component Locations
WARNING: This page is about a different car, the 2002 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

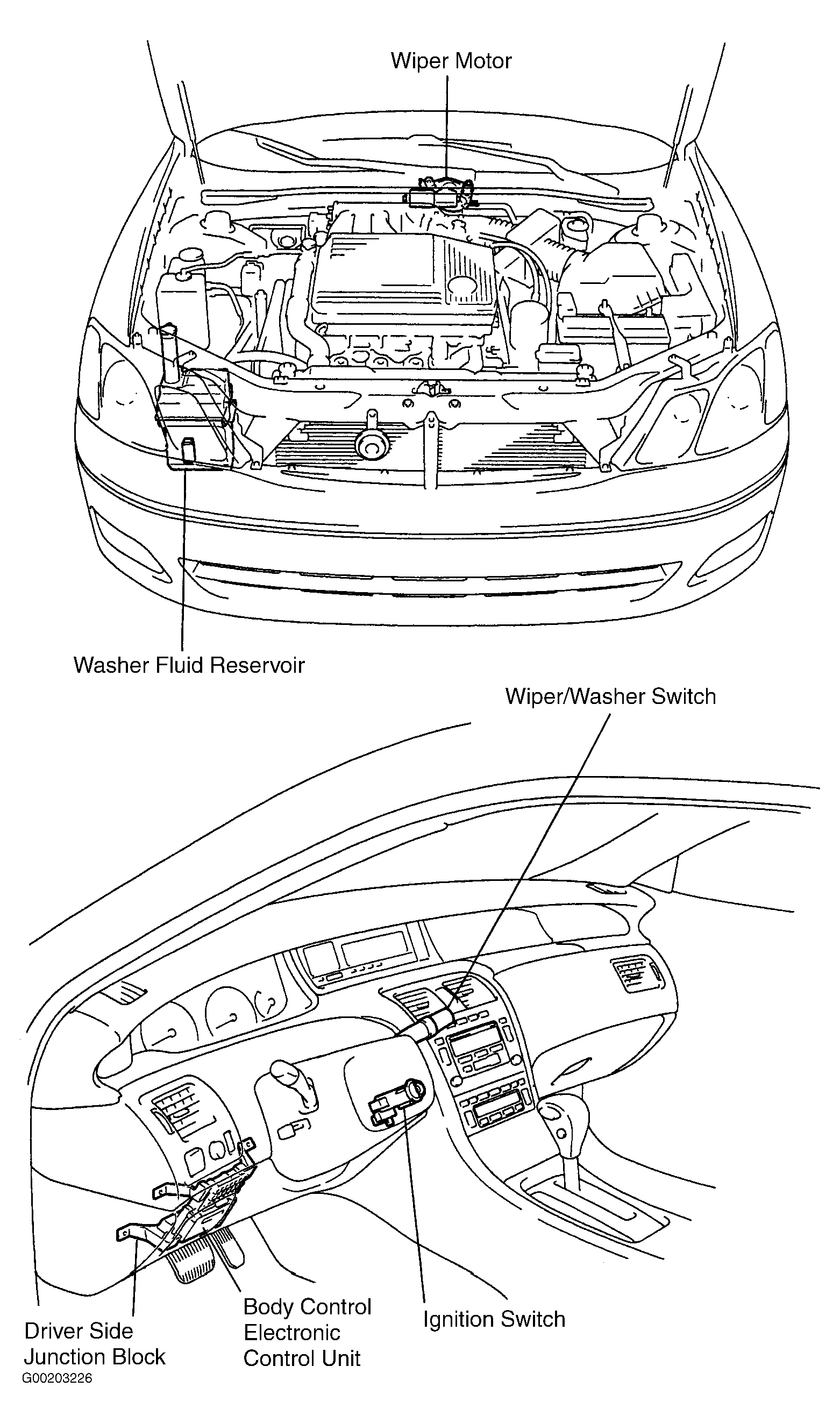

For wiper/washer system component locations, see illustration. See Fig 1.
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Body Control Electronic Control Unit | Attached To Driver Side Junction Block |
| Driver Side Junction Block | Left Side Of Instrument Panel, Behind Access Panel To Left Of Steering Column |
| Front Wiper Motor | On Cowl At Rear Center Of Engine Compartment |
| Ignition Switch | Right Side Of Steering Column |
| Washer Fluid Reservoir | Right Front Corner Of Engine Compartment |
| Washer Motor | Inside Washer Fluid Reservoir |
| Wiper/Washer Switch | Right Side Of Steering Column |
