Bleeding Procedures

WARNING: This page is about a different car, the 2004 Toyota 4Runner and 2003 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: DO NOT allow reservoir to run dry during brake bleeding procedure. Use only clean brake fluid. Ensure no dirt or other foreign matter contaminates brake fluid. DO NOT mix different types of brake fluid, as they may not be compatible. DO NOT spill brake fluid on vehicle, as it may damage paint. If brake fluid contacts paint, immediately wash with water.

WARNING: On Traction Control System (TRAC), brake fluid is under high pressure, and may cause personal injury. When repairing master cylinder or TRAC system, carefully bleed air out of TRAC system.

For bleeding procedure, see Fig 1-Fig 4 . For DLC3 location, see Fig 5.

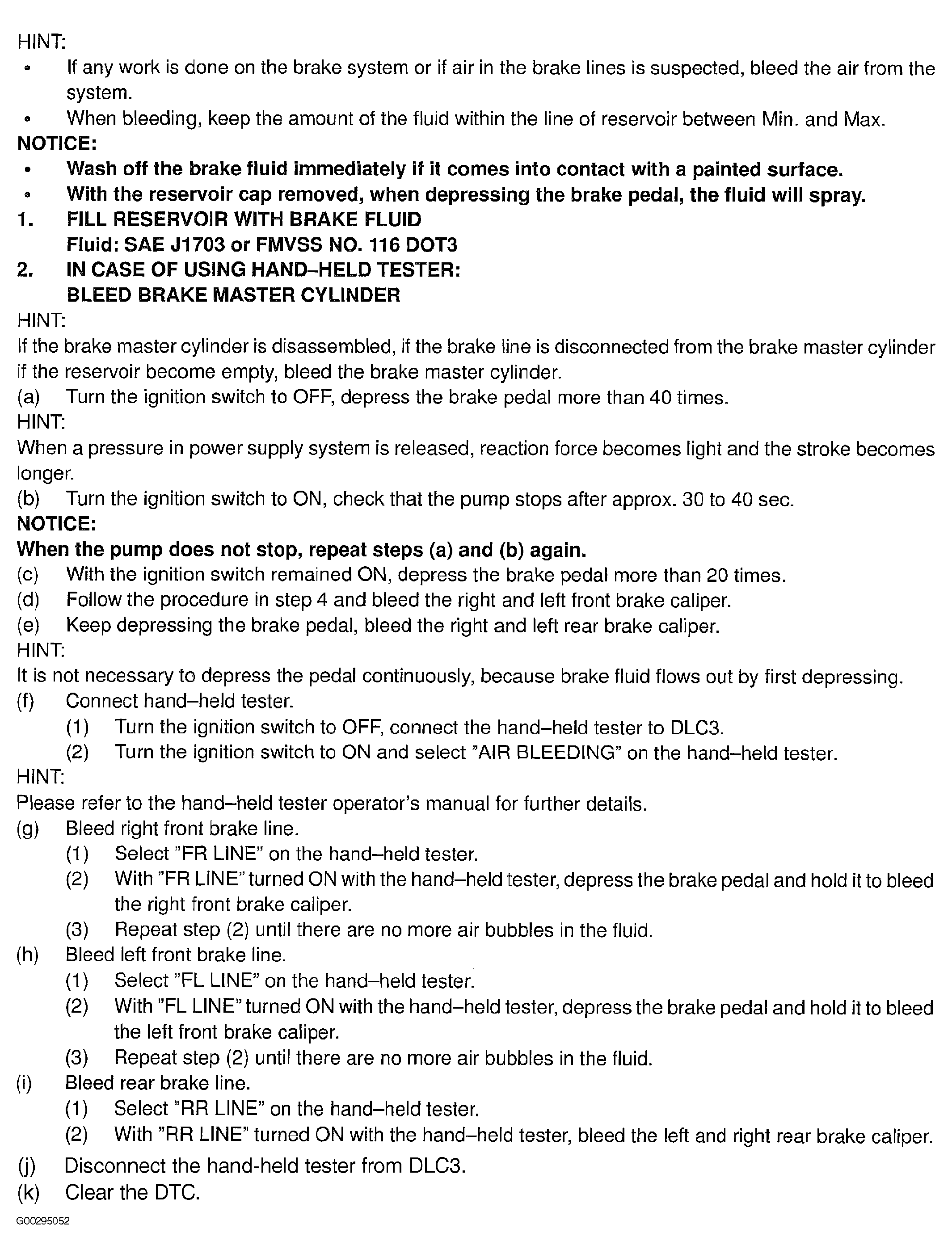

Fig 1: Brake Fluid Bleeding Procedure (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

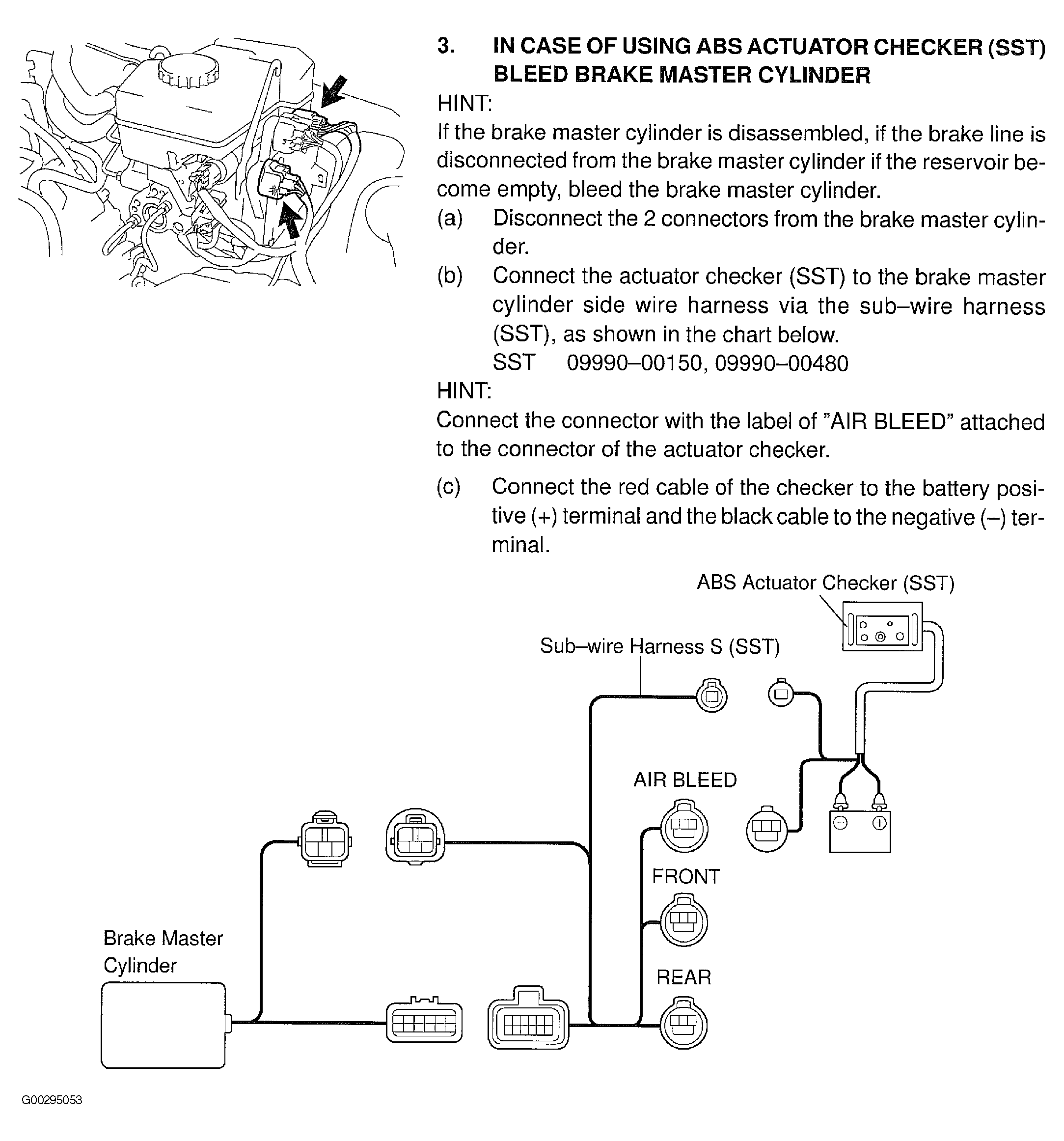

Fig 2: Brake Fluid Bleeding Procedure (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

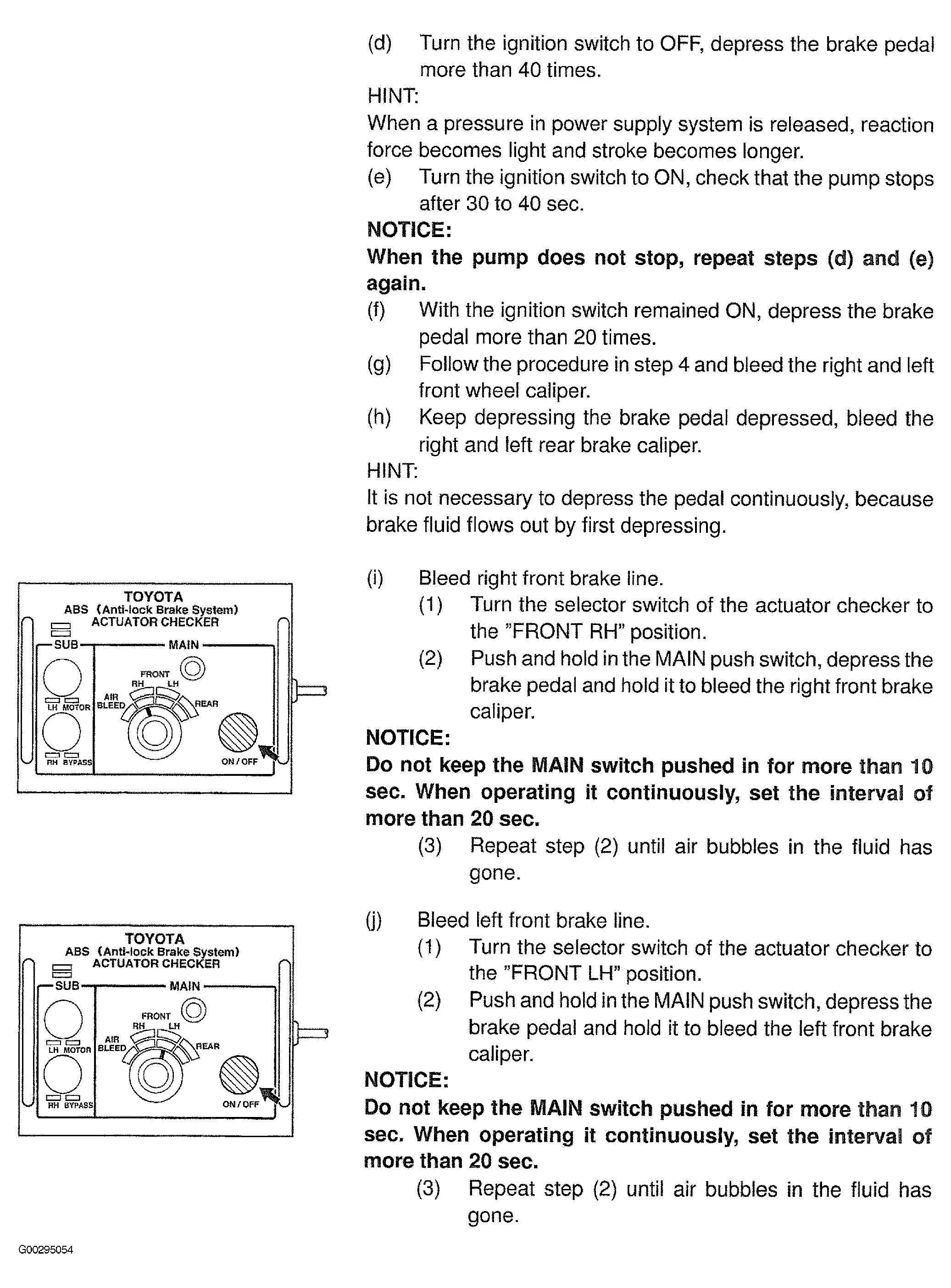

Fig 3: Brake Fluid Bleeding Procedure (3 Of 4)

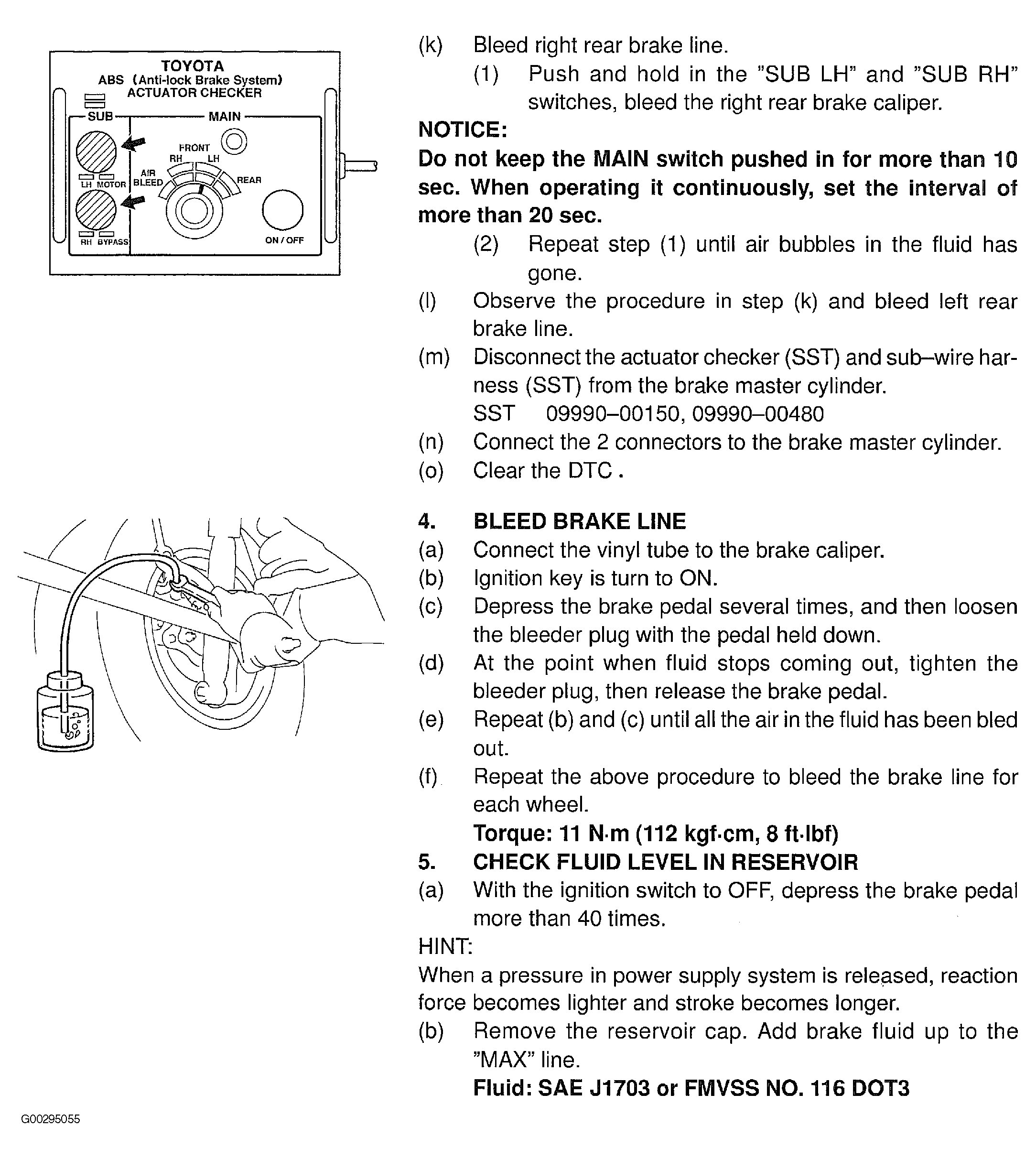

Fig 4: Brake Fluid Bleeding Procedure (4 Of 4)

Fig 5: Connecting Scan Tool To Data Link Connector (DLC3)
